AWM968

WIRING

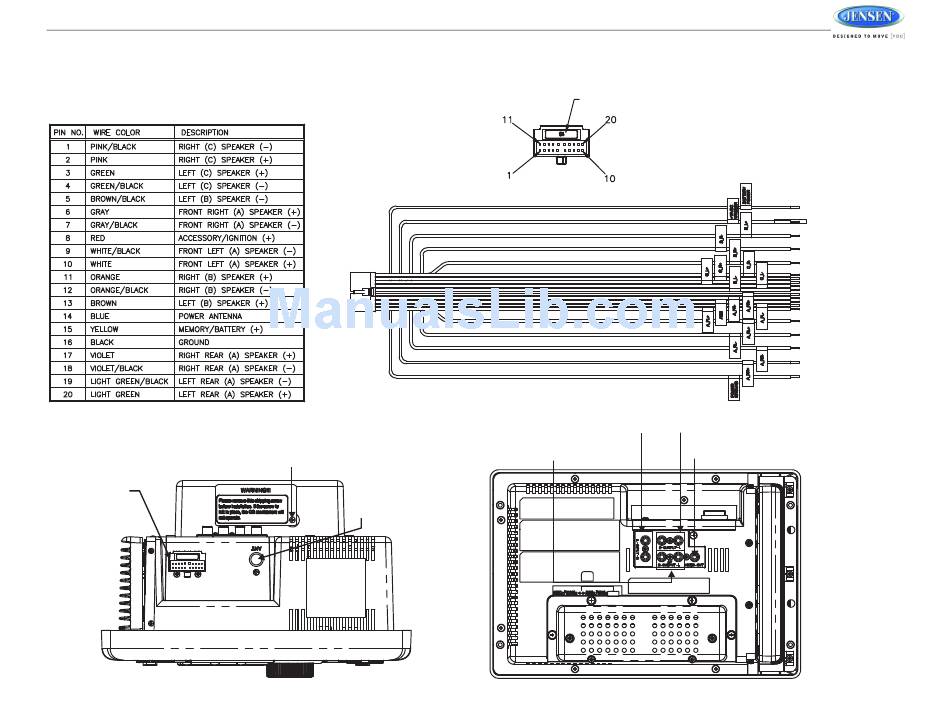

The wiring diagram depicts all the wiring connections required for proper operation of the unit.
DETAIL A
SHOWN FROM PIN VIEW
WIRING HARNESS
CONNECTOR
(SEE DETAIL A)
SHIPPING SCREW
AUDIO/VIDEO OUT (RIGHT, LEFT)
WITH LABEL
AM/FM
MOTOROLA
ANTENNA
10 AMP FUSE
AUDIO IN (RIGHT, LEFT) AUDIO OUT (RIGHT, LEFT)
3
VIDEO OUT
