E N G L I S H

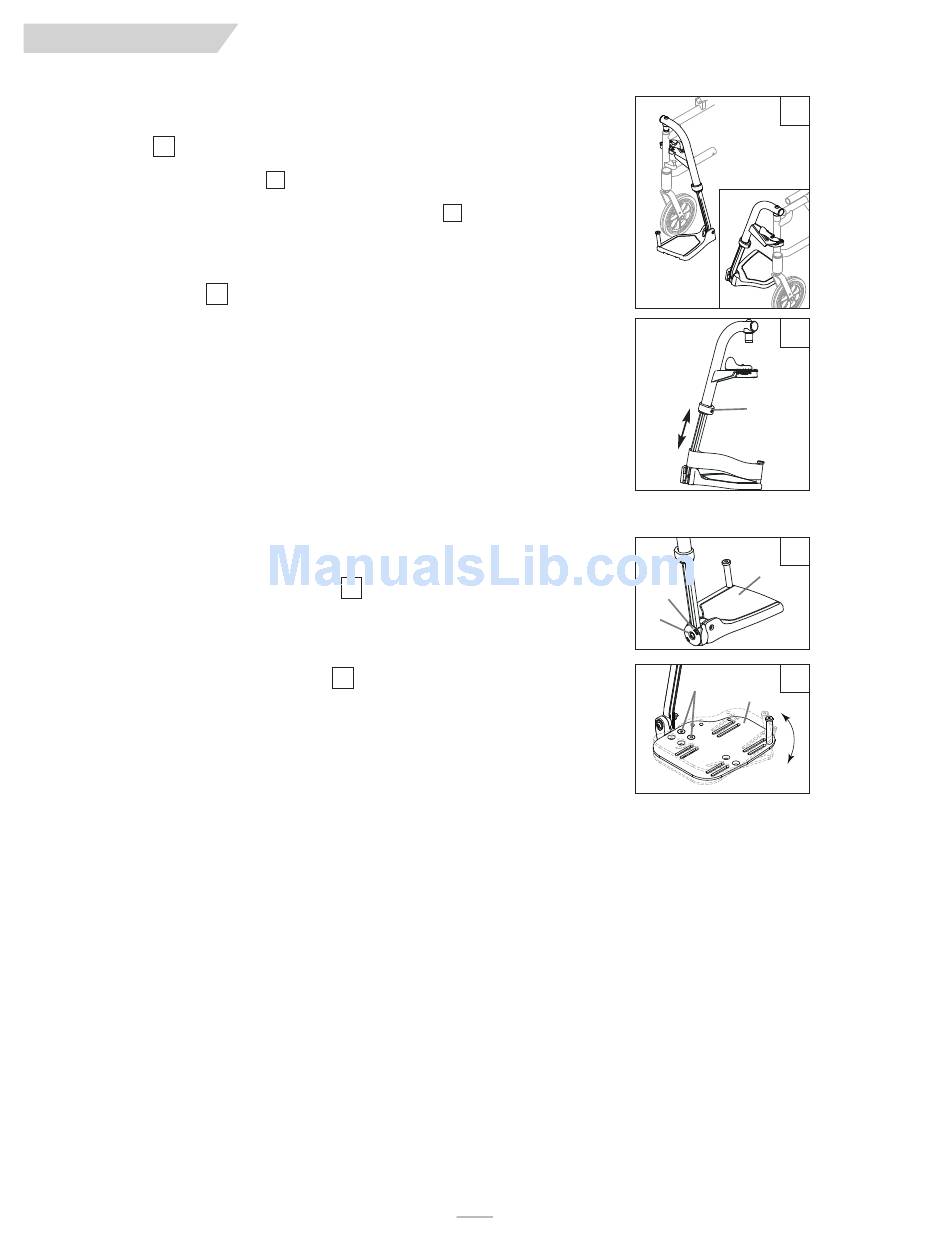

L. SWING-IN/SWING-OUT HANGERS AND FOOTRESTS
(70º, 80°)
21
1. Installation
a. Place swing-in/swing-out pivot saddle into the receiver on front frame tube with the footrest
facing outward from the frame. (
b. Rotate the footrest inward until it locks into place on locking bolt. (
2. Removal
a. To remove footrest, push release latch toward the frame.
b. Rotate footrest inward and lift. Or, pull footrest away from frame and rotate outward.
3. Height Adjustment
NOTE– It is recommended that you maintain a minimum of 2.0 inches between the lowest point on the
footrest and the floor.
a. Loosen set screw (C) using a 3/16 inch hex key.
b. Slide footrest extension up or down inside frame tube to desired height.
c. Tighten set screw. Use a torque setting of 144 in-lbs (16.27 Nm).
M. ANGLE ADJUSTABLE FOOTPLATES
1. Composite Angle Adjustable Footplates
a. Remove bolt (D)
b. Pull footplate section (E) away from extension.
c. Reposition footplate back onto extension in new angular position. Use premarked extension
coupling (F) as guide.
2. Aluminum Angle Adjustable Footplate
a. Loosen bolts (H).
b. Adjust footplate (G) to desired angular position.
c. Re-tighten bolt (H).
109881 Rev. B
21
-A)
22
23
24
21
-B)
18
21
A
B
22
C
23
E
F
D
24
H
G
