E. ARMREST RECEIVER ATTACHMENT
7 8 9

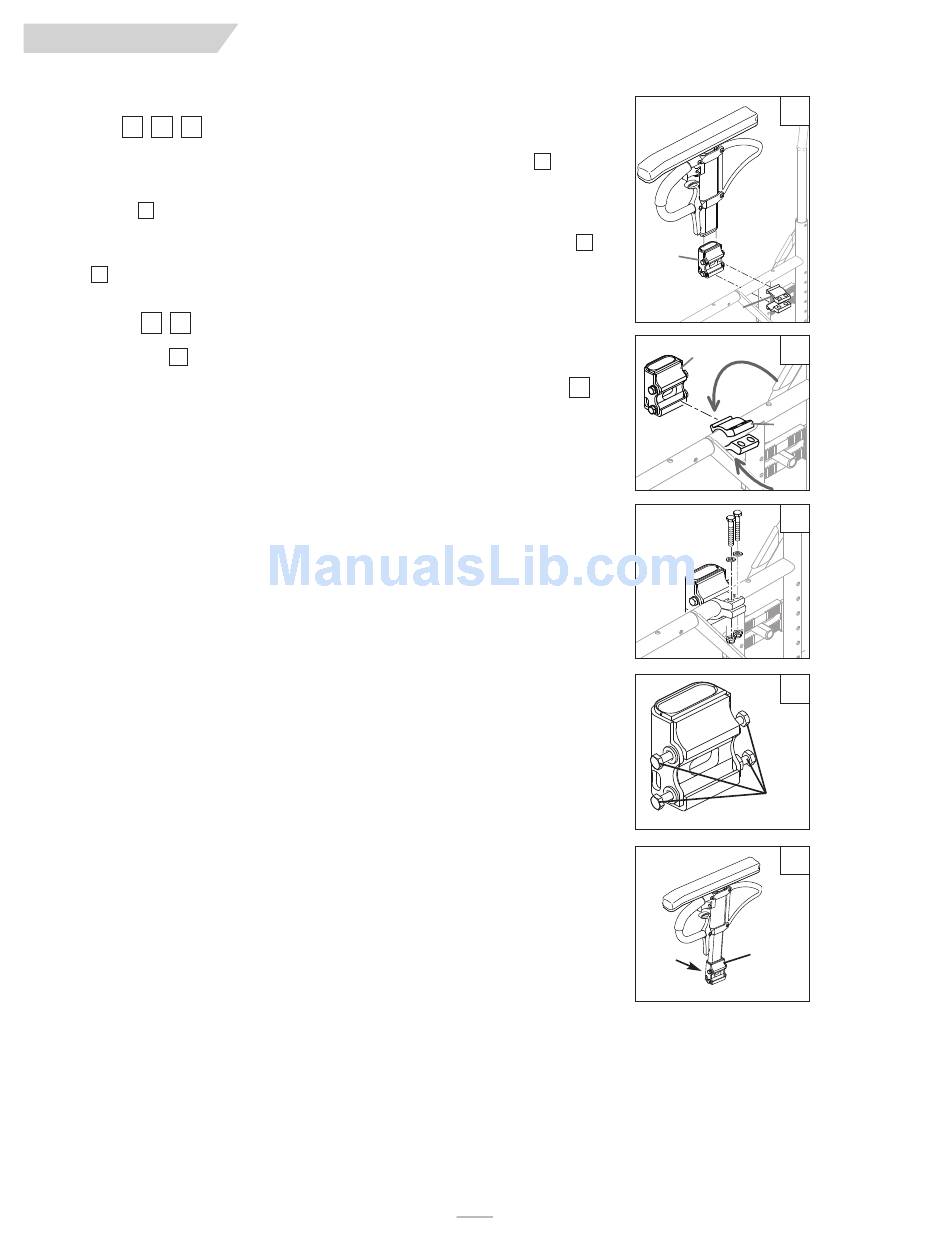

Mounting
1. Place the two clamp receivers (A) over the top portion of the rear side frame tube
Align with the single post height-adjustable armrest.
2. Pinch both clamp receivers together at the armpost receiver side and insert into the armpost
8
receiver .
3. Once inserted, pinch both clamp receivers together on the far side of the armpost receiver.
4. Hold both clamp receivers against the top portion of the rear side frame tube and fasten
9 .
10 11
Adjustment
1. To adjust the fit of the Single Post Armrest in the receiver, loosen the 4 hex bolts (C) by using a
10
7/16" wrench .
2. With the armrest assembly in the receiver (B), press firmly on the outside of the receiver.
3. Maintain pressure on the receiver and re-tighten two of the hex bolts (C).
4. Remove the armrest assembly and re-tighten the remaining two hex bolts.
5. The armrest will fit firmly in the receiver and lessen any noise that may result from vibration.
