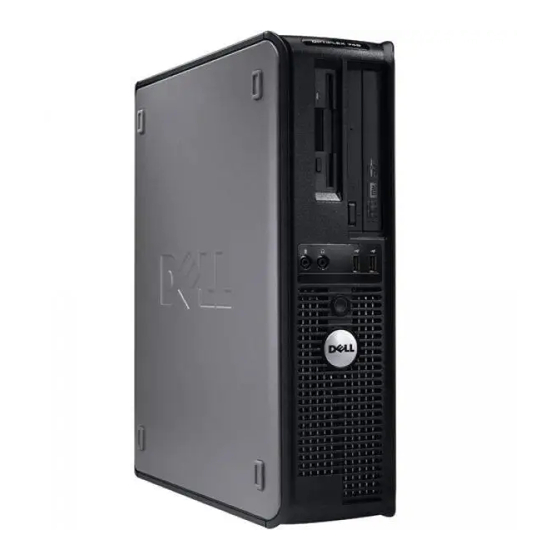

Dell™ OptiPlex™ 755
Quick Reference Guide
Models DCTR, DCNE, DCSM, and DCCY
w w w . d e l l . c o m | s u p p o r t . d e l l . c o m

Advertisement

Table of Contents
loading

Related Manuals for Dell OptiPlex 755

Summary of Contents for Dell OptiPlex 755

  • Page 1 Dell™ OptiPlex™ 755 Quick Reference Guide Models DCTR, DCNE, DCSM, and DCCY w w w . d e l l . c o m | s u p p o r t . d e l l . c o m...
  • Page 2 IBM is a registered trademark of International Business Machines Corporation; Bluetooth is a trademark owned by Bluetooth SIG, Inc. and is used by Dell Inc. under license. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc.

  • Page 3: Table Of Contents

    Contents ....Finding Information Setting Up Your Computer ....
  • Page 4 Restoring Your Operating System ..Using Microsoft Windows System Restore Using Dell™ PC Restore and Dell Factory Image Restore ....

  • Page 5: Finding Information

    You can use the media to reinstall drivers (see "Reinstalling Drivers and Utilities" on page 79), to run the Dell Diagnostics (see "Dell Diagnostics" on page 61). Readme files may be included on your media to provide last-minute updates...
  • Page 6 Find It Here • How to set up my computer Owner’s Manual NOTE: • How to run the Dell Diagnostics This document may be optional and may not ship with your computer. • Error codes and diagnostic lights • Tools and utilities •...
  • Page 7 These labels are located on your computer. • Use the Service Tag to identify your computer when you use support.dell.com or contact support. • Enter the Express Service Code to direct your call when contacting support. NOTE: As an increased security measure,...
  • Page 8 • Service and support — Service call status and support history, service contract, online discussions with technical support • Dell Technical Update Service — Proactive e-mail notification of software and hardware updates for your computer • Reference — Computer documentation,...
  • Page 9 What Are You Looking For? Find It Here • How to use Windows XP Windows Help and Support Center To access Windows Help and Support: • How to work with programs and files • In Windows XP, click Start and click •...

  • Page 10: Setting Up Your Computer

    What Are You Looking For? Find It Here After you reinstall your operating system, use the Drivers and Utilities media to reinstall drivers for the devices that came with your computer. Your operating system product key label is located on your computer. NOTE: The color of your CD varies based on the operating system you ordered.

  • Page 11: Set Up Your Keyboard And Mouse

    3 Connect the monitor. Align and gently insert the monitor cable to avoid bending connector pins. Tighten the thumbscrews on the cable connectors. NOTE: Some monitors have the video connector underneath the back of the screen. See the documentation that came with your monitor for its connector locations.

  • Page 12: Set Up Your Monitor

    Set Up Your Monitor Power Connections Quick Reference Guide...

  • Page 13: Before You Begin

    You have performed the steps in "Turning Off Your Computer" on page 13 and "Mini Tower Computer" on page 16. • You have read the safety information in your Dell™ Product Information Guide. • A component can be replaced by performing the removal procedure in reverse order.

  • Page 14: Before Working Inside Your Computer

    Hold a component such as a processor by its edges, not by its pins. NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not covered by your warranty. NOTICE: When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself.
  • Page 15 CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover. 6 Remove the computer cover. • For a mini tower computer, see "Removing the Computer Cover" on page 22. • For a desktop computer, see "Removing the Computer Cover" on page 32.

  • Page 16: Mini Tower Computer

    Mini Tower Computer System Views Front View 5.25-inch drive Can contain an optical drive. Insert a CD or DVD (if supported) into this drive. 5.25-inch drive Can contain an optical drive. Insert a CD or DVD (if supported) into this drive. Quick Reference Guide...
  • Page 17 3.5-inch drive Can contain an optional floppy drive or optional media card reader. USB 2.0 Use the front USB connectors for devices that you connect connectors (2) occasionally, such as joysticks or cameras, or for bootable USB devices (see your online User’s Guide for more information on booting to a USB device).
  • Page 18 power light The power light illuminates and blinks or remains solid to indicate different operating modes: • No light — The computer is turned off. • Steady green — The computer is in a normal operating state. • Blinking green — The computer is in a power-saving mode •...
  • Page 19 Back View 1 cover-release This latch allows you to open the computer cover. latch 2 padlock ring Insert a padlock to lock the computer cover. Quick Reference Guide...
  • Page 20 3 voltage selection Your computer is equipped with a manual voltage-selection switch switch. To help avoid damaging a computer with a manual voltage-selection switch, set the switch for the voltage that most closely matches the AC power available in your location.
  • Page 21 2 link integrity light • Green — A good connection exists between a 10-Mbps network and the computer. • Orange — A good connection exists between a 100-Mbps network and the computer. • Yellow — A good connection exists between a 1-Gbps (or 1000-Mbps) network and the computer.

  • Page 22: Removing The Computer Cover

    8 video connector Plug the cable from your VGA-compatible monitor into the blue connector. NOTE: If you purchased an optional graphics card, this connector will be covered by a cap. Connect your monitor to the connector on the graphics card. Do not remove the cap. NOTE: If you are using a graphics card that supports dual monitors, use the y-cable that came with your computer.
  • Page 23 security cable slot cover release latch padlock ring Quick Reference Guide...

  • Page 24: Inside Your Computer

    Inside Your Computer CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide. CAUTION: To avoid electrical shock, always unplug your computer from the electrical outlet before removing the computer cover. NOTICE: Be careful when opening the computer cover to ensure that you do not accidentally disconnect cables from the system board.

  • Page 25: System Board Components

    System Board Components Quick Reference Guide...

  • Page 26: Jumper Settings

    speaker connector (INT_SPKR) 12 RTC reset jumper (RTCRST) fan (FAN_CPU) 13 intrusion switch connector (INTRUDER) processor connector (CPU) 14 battery socket (BATTERY) processor power connector 15 PCI Express x16 connector (SLOT1) (12VPOWER) memory module connectors 16 PCI Express x1 connector (SLOT4) (DIMM_1, DIMM_2, DIMM_3, DIMM_4) password jumper (PSWD)

  • Page 27: Desktop Computer

    Jumper Setting Description RTCRST The real-time clock has not been reset. The real-time clock is being reset (jumpered temporarily). jumpered unjumpered Desktop Computer System Views Front View USB 2.0 Use the front USB connectors for devices that you connect connectors (2) occasionally, such as joysticks or cameras, or for bootable USB devices (see "System Setup"...
  • Page 28 If your operating system has ACPI enabled, when you press the power button the computer will perform an operating system shutdown. Dell badge This badge can be rotated to match the orientation of your computer. To rotate, place fingers around the outside of the badge, press firmly, and turn the badge.
  • Page 29 headphone Use the headphone connector to attach headphones and connector most kinds of speakers. microphone Use the microphone connector to attach a microphone. connector 3.5-inch drive Can contain an optional floppy drive, second hard drive, or optional media card reader. 5.25-inch drive Can contain an optical drive.
  • Page 30 4 voltage selection Your computer is equipped with a manual voltage selection switch switch. To help avoid damaging a computer with a manual voltage selection switch, set the switch for the voltage that most closely matches the AC power available in your location.
  • Page 31 2 link integrity light • Green — A good connection exists between a 10-Mbps network and the computer. • Orange — A good connection exists between a 100-Mbps network and the computer. • Yellow — A good connection exists between a 1-Gbps (or 1000-Mbps) network and the computer.

  • Page 32: Removing The Computer Cover

    8 video connector Plug the cable from your VGA-compatible monitor into the blue connector. NOTE: If you purchased an optional graphics card, this connector will be covered by a cap. Connect your monitor to the connector on the graphics card. Do not remove the cap. NOTE: If you are using a graphics card that supports dual monitors, use the y-cable that came with your computer.

  • Page 33: Inside Your Computer

    security cable slot cover release latch padlock ring Inside Your Computer CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. CAUTION: To avoid electrical shock, always unplug your computer from the electrical outlet before removing the computer cover.
  • Page 34 drive bays (media card reader power supply or floppy drive, optical drive and hard drive) optional chassis-intrusion system board switch card slots heat sink assembly front I/O panel Quick Reference Guide...

  • Page 35: System Board Components

    System Board Components Quick Reference Guide...

  • Page 36: Jumper Settings

    internal speaker (INT_SPKR) 12 intrusion switch connector (INTRUDER) processor connector (CPU) 13 battery socket (BATTERY) processor power connector 14 PCI Express x16 connector (SLOT1) (12VPOWER) memory module connectors 15 PCI connector (SLOT2) (DIMM_1, DIMM_2, DIMM_3, DIMM_4) password jumper (PSWD) 16 PCI connector (SLOT3) SATA connectors (SATA0, SATA1, 17 riser connector (uses PCI-E SATA2)

  • Page 37: Small Form Factor Computer

    Jumper Setting Description RTCRST The real-time clock has not been reset. The real-time clock is being reset (jumpered temporarily). jumpered unjumpered Small Form Factor Computer System Views Front View USB 2.0 Use the front USB connectors for devices that you connect connectors (2) occasionally, such as joysticks or cameras, or for bootable USB devices (see "System Setup"...
  • Page 38 If your operating system has ACPI enabled, when you press the power button the computer will perform an operating system shutdown. Dell badge Can be rotated to match the orientation of your computer. To rotate, place fingers around the outside of the badge, press firmly, and turn the badge.
  • Page 39 "Power Management for Windows XP and Vista" in the User’s Guide. See "Dell Diagnostics" on page 61 for a description of light codes that can help you troubleshoot problems with your computer.
  • Page 40 Back View 1 card slots (2) Access connectors for any installed PCI cards, PCI Express cards, PS/2, eSATA, and so on. 2 back panel Plug serial, USB, and other devices into the appropriate connectors connectors (see "Back Panel Connectors" on page 41). 3 power connector Insert the power cable.
  • Page 41 Back Panel Connectors 1 parallel connector Connect a parallel device, such as a printer, to the parallel connector. If you have a USB printer, plug it into a USB connector. NOTE: The integrated parallel connector is automatically disabled if the computer detects an installed card containing a parallel connector configured to the same address.
  • Page 42 3 network adapter To attach your computer to a network or broadband device, connector connect one end of a network cable to either a network jack or your network or broadband device. Connect the other end of the network cable to the network adapter connector on the back panel of your computer.

  • Page 43: Removing The Computer Cover

    8 video connector Plug the cable from your VGA-compatible monitor into the blue connector. NOTE: If you purchased an optional graphics card, this connector will be covered by a cap. Connect your monitor to the connector on the graphics card. Do not remove the cap. NOTE: If you are using a graphics card that supports dual monitors, use the y-cable that came with your computer.

  • Page 44: Inside Your Computer

    security cable slot cover release latch computer cover Inside Your Computer CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. CAUTION: To avoid electrical shock, always unplug your computer from the electrical outlet before removing the computer cover.
  • Page 45 drive-release latch optical drive power supply hard drive system board heat sink assembly Quick Reference Guide...

  • Page 46: System Board Components

    System Board Components Quick Reference Guide...

  • Page 47: Jumper Settings

    internal speaker connector 12 RTC reset jumper (RTCRST) (INT_SPKR) processor connector (CPU) 13 intrusion switch connector (INTRUDER) processor power connector 14 battery socket (BATTERY) (12VPOWER) memory module connectors 15 PCI Express x16 connector (SLOT1) (DIMM_1, DIMM_2, DIMM_3, DIMM_4) password jumper (PSWD) 16 PCI connector (SLOT2) SATA connectors (SATA0, SATA1) 17 serial connector (SERIAL2)

  • Page 48: Ultra Small Form Factor Computer

    NOTE: If you want to orient your computer under a desk top or on a wall surface, use the optional wall-mount bracket. contact Dell (see "Contacting Dell" in the User’s Guide). To order this bracket Front View Quick Reference Guide...
  • Page 49 1 USB connectors Use the front USB connectors for devices that you connect occasionally, such as joysticks or cameras, or for bootable USB devices (see "System Setup" in the User’s Guide for more information about booting to a USB device). It is recommended that you use the back USB connectors for devices that typically remain connected, such as printers and keyboards.
  • Page 50 8 hard drive access The hard drive access light is on when the computer reads light data from or writes data to the hard drive. The light might also be on when devices such as your CD player are operating. 9 vents The vents help prevent your computer from overheating.
  • Page 51 Back View diagnostic lights See "Diagnostic Lights" on page 66 for a description of light codes that can help you troubleshoot problems with your computer. computer cover release Rotate this knob in a clockwise direction to remove knob the cover. back panel connectors See "Back Panel Connectors"...
  • Page 52 Back Panel Connectors parallel Connect a parallel device, such as a printer, to the parallel connector connector. If you have a USB printer, plug it into a USB connector. link integrity • Green — A good connection exists between a 10-Mbps light network and the computer.
  • Page 53 network activity The amber light flashes when the computer is transmitting light or receiving network data. A high volume of network traffic may make this light appear to be in a steady "on" state. line-out Use the green line-out connector to attach an amplified connector speaker set.
  • Page 54 cable adapter VGA connector monitor cable Connecting Two Monitors cable adapter Use the cable adapter to connect a VGA monitor and a DVI monitor to the DVI-I connector on the back panel. Quick Reference Guide...

  • Page 55: Removing The Computer Cover

    When you connect two monitors, the video driver will detect this connection and activate the multimonitor functionality. Removing the Computer Cover CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. NOTICE: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of your computer’s electronic...

  • Page 56: Inside Your Computer

    release knob Inside Your Computer CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide. CAUTION: To avoid electrical shock, always unplug your computer from the AC power adapter before removing the cover. NOTICE: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of your computer’s electronic...

  • Page 57: Cable Cover (Optional)

    fan shroud/heat sink assembly speaker (optional) memory modules (2) hard drive security cable slot chassis intrusion switch Cable Cover (Optional) Attaching the Cable Cover 1 Ensure that all external device cables are threaded through the hole in the cable cover. 2 Connect all device cables to the connectors on the back of the computer.
  • Page 58 cable cover security cable slot Removing the Cable Cover 1 If a security device is installed in the security cable slot, remove the device. release button 2 Slide the release button, grasp the cable cover, and slide the cover sideways as shown until it stops, and then lift the cable cover up and away.

  • Page 59: System Board Components

    System Board Components Quick Reference Guide...

  • Page 60: Jumper Settings

    1 fan connector (FAN_FRONT) password jumper (PSWD) 2 internal speaker connector hard drive fan connector (FAN_HDD) (INT_SPKR) 3 system board speaker (BEEP) 10 clear CMOS jumper (RTCRST) 4 channel B memory connector 11 hard drive power connector (SATA_PWR) (DIMM_2) 5 channel A memory connector 12 fan connector (FAN_REAR) (DIMM_1) 6 SATA data cable connector...

  • Page 61: Solving Problems

    Solving Problems Dell provides a number of tools to help you if your computer does not perform as expected. For the latest troubleshooting information available for your computer, see the Dell Support website at support.dell.com. If computer problems occur that require help from Dell, write a detailed...
  • Page 62 Start the Dell Diagnostics from either your hard drive or from the Drivers and Utilities media (an optional CD). See "Starting the Dell Diagnostics From Your Hard Drive" on page 62 or "Starting the Dell Diagnostics From the Drivers and Utilities CD (Optional)" on page 63 for more information.
  • Page 63 6 Type 1 to start the Drivers and Utilities CD menu. 7 Type 2 to start the Dell Diagnostics. 8 Select Run the 32 Bit Dell Diagnostics from the numbered list. If multiple versions are listed, select the version appropriate for your computer.
  • Page 64 The Service Tag for your computer is located at the top of each test screen. If you contact Dell, technical support will ask for your Service Tag. Your computer’s Service Tag is listed in the System Info option in system setup. See "System Setup" in the User’s Guide for more information.

  • Page 65: System Lights

    4 When the tests are completed, if you are running the Dell Diagnostics from the Drivers and Utilities CD, remove the CD. 5 When the tests are complete, close Close the test screen to return to the Main Menu screen. To exit the Dell Diagnostics and restart the computer, close the Main Menu screen.

  • Page 66: Diagnostic Lights

    POST contact Dell for technical assistance (see "Contacting Dell" in the User’s Guide). Diagnostic Lights CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
  • Page 67 The diagnostic lights are not lit after the system successfully • If the problem persists, boots to the operating system. contact Dell (see "Contacting Dell" in the User’s Guide). A possible processor failure has • Reseat the processor (see occurred. Processor information for your system).
  • Page 68 • If the problem persists, contact Dell (see "Contacting Dell" in the User’s Guide). A possible floppy drive or hard Reseat all power and data cables. drive failure has occurred. A possible USB failure has Reinstall all USB devices and occurred.
  • Page 69 (see the specifications for your system). • If the problem persists, contact Dell (see "Contacting Dell" in the User’s Guide). A possible expansion card failure Determine if a conflict exists has occurred. by removing an expansion card...

  • Page 70: Beep Codes

    Reseating the memory modules may correct the following beep code errors. If the problem persists, contact Dell (see "Contacting Dell" in the User’s Guide) for instructions on obtaining technical assistance.
  • Page 71 1-3-1 through Memory not being properly identified or used 2-4-4 4-3-1 Memory failure above address 0FFFFh If you experience any of the following beep code errors, see "Contacting Dell" for instructions on obtaining technical assistance. in the User’s Guide Code Cause...

  • Page 72: Resolving Software And Hardware Incompatibilities

    Code Cause 4-2-1 No timer tick 4-2-2 Shutdown failure 4-2-3 Gate A20 failure 4-2-4 Unexpected interrupt in protected mode 4-3-1 Memory failure above address 0FFFFh 4-3-3 Timer-chip counter 2 failure 4-3-4 Time-of-day clock stopped 4-4-1 Serial or parallel port test failure 4-4-2 Failure to decompress code to shadowed memory 4-4-3...

  • Page 73: Restoring Your Operating System

    Make regular backups of your data files. System Restore does not monitor your data files or recover them. NOTE: The procedures in this document were written for the Windows default view, so they may not apply if you set your Dell™ computer to the Windows Classic view. Quick Reference Guide...
  • Page 74 Starting System Restore Windows XP: NOTICE: Before you restore the computer to an earlier operating state, save and close any open files and exit any open programs. Do not alter, open, or delete any files or programs until the system restoration is complete. 1 Click Start→...

  • Page 75: Using Dell™ Pc Restore And Dell Factory Image Restore

    If possible, back up the data before using these options. Use PC Restore or Dell Factory Image Restore only if System Restore did not resolve your operating system problem.
  • Page 76 NOTICE: Removing Dell PC Restore from the hard drive permanently deletes the PC Restore utility from your computer. After you have removed Dell PC Restore, you will not be able to use it to restore your computer operating system. Dell PC Restore enables you to restore your hard drive to the operating state it was in when you purchased your computer.
  • Page 77 7 Click Finish to close the PC Restore Removal window and restart the computer. Windows Vista: Dell Factory Image Restore 1 Turn on the computer. When the Dell logo appears, press <F8> several times to access the Vista Advanced Boot Options Window. 2 Select Repair Your Computer.

  • Page 78: Using The Drivers And Utilities Media

    6 Click Next. The Confirm Data Deletion screen appears. NOTICE: If you do not want to proceed with Factory Image Restore, click Cancel. 7 Click the checkbox to confirm that you want to continue reformatting the hard drive and restoring the system software to the factory condition, then click Next.

  • Page 79: Reinstalling Drivers And Utilities

    Reinstalling Drivers and Utilities NOTICE: The Dell Support website at support.dell.com and your Drivers and Utilities media provide approved drivers for Dell™ computers. If you install drivers obtained from other sources, your computer might not work correctly. Using Windows Device Driver Rollback...
  • Page 80 3 Right-click the device for which the new driver was installed and click Properties. 4 Click the Drivers tab→ Roll Back Driver. If Device Driver Rollback does not resolve the problem, then use System Restore (see "Restoring Your Operating System" on page 73) to return your computer to the operating state that existed before you installed the new driver.
  • Page 81 5 Click the Driver tab→ Update Driver→ Browse my computer for driver software. 6 Click Browse and browse to the location to which you previously copied the driver files. 7 When the name of the appropriate driver appears, click the name of the driver→...
  • Page 82 Quick Reference Guide...

  • Page 83: Index

    73 ergonomics information, 6 cover error messages opening, 22, 32, 43 beep codes, 70 diagnostic lights, 65-66 Dell support site, 8 diagnostic lights, 65-66 Factory Image Restore, 75, 77 diagnostics beep codes, 70 lights, 65-66 documentation...
  • Page 84 installing parts PC Restore, 75 before you begin, 13, 61 power recommended tools, 13 light, 28, 39 turning off your computer, 13 power button light, 65 problems beep codes, 70 diagnostic lights, 65-66 labels restore to previous state, 73 Microsoft Windows, 7 Product Information Guide, 6 Service Tag, 7 lights...
  • Page 85 troubleshooting diagnostic lights, 65-66 Help and Support Center, 9 restore to previous state, 73 User’s Guide, 6 warranty information, 6 Windows Vista Factory Image Restore, 75 System Restore, 73 Windows XP Device Driver Rollback, 79 Help and Support Center, 9 PC Restore, 75 reinstalling, 9 System Restore, 73...
  • Page 86 Index...
  • Page 87 Dell™ OptiPlex™ 755 快速參考指南 機型 DCTR、DCNE、DCSM 及 DCC w w w . d e l l . c o m | s u p p o r t . d e l l . c o m...
  • Page 88 MS-DOS、 Windows、Windows Vista 及 Windows Vista Start button 為 Microsoft Corporation 在美 國及／或其他國家的註冊商標或商標 ; IBM 為 International Business Machines Corporation 的 註冊商標 ; Bluetooth 為 Bluetooth SIG, Inc. 擁有的商標 ， Dell Inc. 依法取得授權使用 。 ENERGY STAR 為美國環保署的註冊商標。身為能源之星的合作夥伴之一，Dell Inc. 已確定本產品符合 能源之星所規定之能源效率方針。...
  • Page 89 目錄 ..........
  • Page 90 ......Microsoft Windows Dell™ PC Restore Dell Factory Image Restore ..... . .
  • Page 91 註 : • Dell 註 : • Drivers and Utilities • (DSS) 說明文件與驅動程式已安裝於您的電腦 上。 您可以使用此媒體重新安裝驅動程式 ( 請參閱 第 155 頁上 「重新安裝驅動程式 與公用程式」 )，執行 Dell 診斷程式 ( 請 參閱 第 140 頁上 「Dell 診斷程式」 )。 讀我檔案可能包含在您的媒體上，以提供 關於您的電腦中的技術更新或專為技術人 員或極具經驗的使用者參考的進階技術參 考資料之最新更新。 註 : support.dell.com...
  • Page 92 • 註 : • Dell • • • • • 註 : support.dell.com • Dell™ • • • • • • Dell™ OptiPlex™ • Microsoft Windows 說明與支援中心 → → • 開始或 說明與支援 Dell 使 → 用者與系統指南 系統指南 • 使用者指南...

  • Page 93: Microsoft Windows

    ® ® • Microsoft Windows • Microsoft Windows 這些標籤是在您的電腦上。 • support.dell.com • 註 : Microsoft Windows • — Dell — support.dell.com 註 : • — Dell • — • — • — • Dell — • — • —...
  • Page 94 下載桌上型系統軟體 • (DSS)— support.dell.com 開始 Dell 系統與組態公用程式→ Dell 筆記 型電腦系統軟體 現在下載 驅動程式 & 下載 執行 註 : support.dell.com • Windows XP Windows • Windows 開始 、 說 • • Windows XP 明與支援 • Windows Vista™ 、 說明與支 Windows Vista 援...
  • Page 95 • 註 : 作業系統 作業系統已安裝於您的電腦中。 重新安裝 您的作業系統，使用作業系統 媒體。 請參 閱使用者指南或操作手冊中的 「恢復作業 系統」 。 重新安裝作業系統後，請使用驅動程式與 公用程式 媒體重新安裝電腦隨附的裝置驅 動程式。 您的作業系統的產品號碼標籤位於您的電 腦上。 註 :...
  • Page 96 安裝電腦 警告 : 產品資訊指南 注意 : 不要 注意 : 註 : 您必須完成所有步驟，才能夠正確地設定電腦。 請參考這些指示所對應的 圖表。 注意 : PS/2 注意 : 註 : 注意 : 注意 : 115-V 100-V...
  • Page 97 安裝鍵盤與滑鼠 安裝監視器...
  • Page 98 電源連線 開始之前 本章提供在電腦中卸下與安裝元件的程序。 除非另有說明，否則執行每個 程序時均假定已執行下列作業： • Dell™ 產品資訊指南中的安全資訊。 • • 建議的工具 本文件中的程序可能需要以下工具： • • Phillips • BIOS 關閉電腦 注意 :...
  • Page 99 ® ® 在 Microsoft XP 作業系統中 開始 → 關機 → 關 Windows 機 ® 在 Microsoft Windows Vista™ 作業系統中， Windows Vista 關機 注意 : 處理電腦內部組件之前 請遵守下列安全指示，以避免您的電腦受到可能的損壞，並確保您自身的 安全。 警告 : 產品資訊指南 警告 : 注意 : Dell 注意 : 注意 :...
  • Page 100 注意 : )。 警告 : • • • • 注意 :...
  • Page 101 迷你直立型電腦 系統檢視 前視圖 5.25-inch 5.25-inch...
  • Page 102 3.5-inch USB 2.0 使 用者指南 ) 注意 : 注意 : ACPI • 指示燈未亮 — 電腦的電源已經關閉。 • 穩定綠燈 — 電腦處於正常作業狀態。 • 閃爍綠燈 — 電腦處於省電模式。 • 閃爍或穩定的琥珀色光 — 雖然電源正傳送至電 腦，但電腦內部可能有電源問題 （請參閱使用 者指南 中的 「電源問題」 ） 。 Windows 使用者指 南...
  • Page 103 後視圖...
  • Page 104 注意 : 115-V PS/2 eSATA 背面板連接器 註 : 使用者指南...
  • Page 105 • 綠燈 — 10-Mbps 網路與電腦之間的連線狀況良好。 • 橘燈 — 100-Mbps 網路與電腦之間的連線狀況良好。 • 黃燈— 1000-Mbps (1-Gbps) 網路與電腦之間的連線狀況 良好。 • 熄滅 — 電腦未偵測到連接到網路的實體連線。 穩固 註 : 遠 必須 載 NIC 別 5 必須 別 3 度強迫設 10 Mbps 靠運 傳送 收 料 黃 高...
  • Page 106 卸下主機蓋 警告 : 在您開始執行本章節中的任何程序之前，請遵循產品資訊指南 中的 安全說明。 警告 : 為保護您免遭電擊，在移除電腦主機蓋之前，請務必將您電腦的電源 插頭從電源插座拔掉。 請遵循第 98 頁上 「開始之前」中的程序。 依圖解所示將電腦側放。 找到圖解中顯示的蓋板釋放閂鎖。 然後，在提起機箱蓋時，向後滑動 釋放閂鎖。 緊緊夾住主機蓋的側面，以鉸鏈卡舌作為支點將主機蓋向上轉動。 將主機蓋自鉸鏈卡舌移除，然後側放在柔軟而無研磨作用的表面上。 警告 : 圖形卡散熱器在正常作業時會過熱。在您觸碰圖形卡散熱器之 前，請確定它已充分散熱。...
  • Page 108 您的電腦內部 警告 : 在您開始執行本章節中的任何程序之前，請遵循產品資訊指南 中的 安全說明。 警告 : 為避免遭到電擊，在移除主機蓋之前請務必將您電腦的電源插頭從電 源插座拔掉。 注意 :...
  • Page 109 主機板元件...
  • Page 110 12 RTC (INT_SPKR) (RTCRST) (FAN_CPU) (INTRUDER) (CPU) 15 PCI Express x16 (12VPOWER) 16 PCI Express x1 (DIMM_1, DIMM_2, DIMM_3, DIMM_4) 17 PCI (PSWD) 18 PCI SATA (SATA0 SATA1 SATA2 SATA3) (SERIAL2) (POWER) (BEEP) SATA (eSATA) LED (AUX_LED) USB (INT_USB) (DSKT) 跳線設定...
  • Page 111 桌上型電腦 系統檢視 前視圖 USB 2.0 使用者指 南 系統設 注意 : 使用者指南 注意 : ACPI...
  • Page 112 Dell 名牌 這 名牌 旋轉 符合 方向 旋 轉名牌 名牌外圍 穩固 然後 轉名牌 名牌底部 提 旋轉名牌 續 變均 業 • 指示燈未亮 — 電腦的電源已經關閉。 • 穩定綠燈 — 電腦處於正常作業狀態。 • 閃爍綠燈 — 電腦處於省電模式。 • 閃爍或穩定的琥珀色光 — 請參閱使用者指南中的 「電源問題」 。 Windows 欲瞭 使用...
  • Page 113 後視圖 之 PCI PS/2 eSATA 註 : 注意 : 115-V...
  • Page 114 背面板連接器 註 : 使用者指南 • 綠燈 — 10-Mbps 網路與電腦之間的連線狀況良好。 • 橘燈 — 100-Mbps 網路與電腦之間的連線狀況良好。 • 黃燈 — 1000-Mbps (1-Gbps) 網路與電腦之間的連線狀 況良好。 • 熄滅 — 電腦未偵測到連接到網路的實體連線。 穩固 註 : 遠 必須 載 NIC 別 5 必須 別 3 度強迫設 10 Mbps 靠運...
  • Page 115 5 信號輸出 綠色 號 輸出 附 合擴 號 輸 藍色 粉紅色 號 輸 ／ 燒 錄／播 播 CD 播 錄 ； 人 輸 聲音 音樂 聲音 話 7 USB 2.0 像 從 藍色 VGA- 註 : 註 : 掌 預設目 預設目...
  • Page 116 您的電腦內部 警告 : 在您開始執行本章節中的任何程序之前，請遵循產品資訊指南中的安 全說明。 警告 : 為避免遭到電擊，在移除主機蓋之前請務必將您電腦的電源插頭從電 源插座拔掉。 注意 :...
  • Page 118 主機板元件...
  • Page 119 (INT_SPKR) (INTRUDER) (CPU) 14 PCI Express x16 (12VPOWER) 15 PCI (DIMM_1, DIMM_2, DIMM_3, DIMM_4) 16 PCI (PSWD) SATA (SATA0 SATA1 PCI-E SATA2) (SERIAL2) (POWER) (BEEP) SATA (eSATA) LED (AUX_LED) USB (INT_USB) (DSKT) 11 RTC (RTCRST) (FAN_CPU) 跳線設定 跳線 設定 說明 密...
  • Page 120 小型電腦 系統檢視 前視圖 USB 2.0 使用者 指南 系統設 注意 : 注意 : ACPI...
  • Page 121 Dell 名牌 旋轉方向 方向 符 旋轉名 牌 名牌外圍 穩固 然後轉名 牌 名牌底部 提 旋 轉名牌 本 (LAN) 續 變均 業 • 指示燈未亮 — 電腦的電源已經關閉。 • 穩定綠燈 — 電腦處於正常作業狀態。 • 閃爍綠燈 — 電腦處於省電模式。 • 閃爍或穩定的琥珀色光 — 請參閱 使用者指南中 的 「電腦問題」 。...
  • Page 122 後視圖 PS/2 eSATA 注意 : 115-V...
  • Page 123 背面板連接器 註 : 使用者指南 • 綠燈 — 10-Mbps 網路與電腦之間的連線狀況良好。 • 橘燈 — 100-Mbps 網路與電腦之間的連線狀況良好。 • 黃燈— 1000-Mbps (1-Gbps) 網路與電腦之間的連線狀況 良好。 • 熄滅 — 電腦未偵測到連接到網路的實體連線。 穩固 註 : 遠 必須 載 NIC 別 5 必須 別 3 度強迫設 10 Mbps 靠運 傳送...
  • Page 124 號 輸 藍色 粉紅色 號 輸 ／ 合音效 燒錄／播 播 CD 播 錄 ； 人 輸 聲音 音樂 聲音 話 7 USB 2.0 像 從 藍色 VGA- 註 : 註 : 掌 者 南 「系統設定選 項」 。 卸下主機蓋 警告 : 在您開始執行本章節中的任何程序之前，請遵循產品資訊指南中的安...
  • Page 125 您的電腦內部 警告 : 在您開始執行本章節中的任何程序之前，請遵循產品資訊指南中的安 全說明。 警告 : 為避免遭到電擊，在移除主機蓋之前請務必將您電腦的電源插頭從電 源插座拔掉。 注意 :...
  • Page 127 主機板元件...
  • Page 128 12 RTC (INT_SPKR) (RTCRST) (CPU) (INTRUDER) (12VPOWER) 15 PCI Express x16 (DIMM_1, DIMM_2, DIMM_3, DIMM_4) 16 PCI (PSWD) SATA (SATA0 SATA1) (SERIAL2) (BEEP) (POWER) LED (AUX_LED) (FAN_HDD) (DSKT) 10 eSATA (eSATA) (FAN_CPU) (INT_USB) 跳線設定 跳線 設定 說明 密 ( 預設值設 PSWD 密...
  • Page 129 超小型電腦 系統檢視 注意 : 注意 : 註 : Dell Dell 前視圖 1 USB 使用者指南 系統設...
  • Page 130 起 續 著 • 指示燈未亮 — 電腦的電源已經關閉。 • 穩定綠燈 — 電腦處於正常作業狀態。 • 閃爍綠燈 — 電腦處於省電模式。 • 閃爍或亮著黃燈 — 請參閱使用者指南中的 「電源問 題」 。 Windows 欲瞭 使用者指南 「Windows XP 與 Vista 電源管理 系統 注意 : 6 通 口 通 口 防止 過熱 通...
  • Page 131 側視圖 通 口 每 側邊 通 口 防止 過熱 通 勿封閉散熱通 載 載 腳架 後視圖 順 鐘方向旋轉 移除...
  • Page 132 5 通 口 通 口 防止 過熱 通 勿封閉散熱通 背面板連接器 • 綠燈 — 10-Mbps 網路與電腦之間的連線狀況良好。 • 橘燈 — 100-Mbps 網路與電腦之間的連線狀況良好。 • 黃燈— 1000-Mbps (1-Gbps) 網路與電腦之間的連線狀況 良好。 • 關 — 電腦未偵測到連接到網路的實體連線，或系統設 定中的網路控制器已經關閉。 穩固 註 : 別 5 必須 別 3 度強迫設 10 Mbps 靠運...
  • Page 133 信號輸出 綠色 號 輸出 擴 合 號 輸 藍色 粉紅色 號 輸 來 燒錄 / 播 播 CD 播 錄 人 輸 聲音 音樂 聲音 話 掌 像 白色 DVI 像 連接 VGA 顯示器 如果您有 VGA 顯示器，請將配接器連接線插入電腦背面板的白色 DVI 影 像連接器，並將顯示器連接線接上配接器的 VGA 連接器。...
  • Page 134 連接兩台顯示器 使用連接線配接器將 VGA 顯示器與 DVI 顯示器接上背面板上的 DVI-I 連 接器。 連接兩台顯示器時，影像驅動程式將會偵測到此連線並啟動多顯示器功 能。 卸下 主機蓋 警告 : 在您開始執行本章節中的任何程序之前，請遵循產品資訊指南中的安 全說明。 注意 : 請遵循第 98 頁上 「開始之前」中的程序。 卸下機箱蓋 ( 請參閱 ) 第 134 頁上 「卸下 主機蓋」 。 注意 : 如果可適用，請卸下連接線蓋板 ( 請參閱第 136 頁上「連接線蓋板 ( 可選 )」)。...
  • Page 135 取下電腦機箱蓋： 如圖示，依順時鐘方向旋轉蓋板釋放旋鈕。 將主機蓋向前推 1 cm (½ inch)，或推到底，然後掀起蓋板。 警告 : 圖形卡散熱器在正常作業時會過熱。在您觸碰圖形卡散熱器之前，請 確定它已充分散熱。 您的電腦內部 警告 : 在您開始執行本章節中的任何程序之前，請遵循產品資訊指南中的安 全說明。 警告 : 為避免觸電，請務必在卸下蓋板之前拔掉 AC 電源配接器的電腦插 頭。 注意 :...
  • Page 136 連接線蓋板 ( 可選 ) 安裝連接線蓋板 確定所有外接式裝置的連接線均穿過連接線蓋板的小孔。 將所有裝置的連接線接上電腦背面的連接器。 握著連接線蓋板的底部，使卡舌與電腦背面板上的插槽對齊。 將卡舌插入插槽，並滑入蓋板，將蓋板末端與底座末端對齊 （請參閱 圖示） ，直到連接線蓋板確實定位。 將安全保護裝置安裝在安全纜線插槽 ( 可選 )。...
  • Page 137 卸下連接線蓋板 如果安全保護裝置已安裝在安全纜線插槽，請卸下該裝置。 請滑出釋放按鈕、握住連接線蓋板，並依圖示向側邊滑出蓋板，然後 掀起連接線蓋板。...
  • Page 138 系統主機板元件...
  • Page 139 (FAN_FRONT) (PSWD) (INT_SPKR) (FAN_HDD) (BEEP) CMOS (RTCRST) (DIMM_2) (SATA_PWR) (DIMM_1) (FAN_REAR) 6 SATA (SATA0) (INTRUDER) (BATT) (CPU) 跳線設定 跳線 設定 說明 PSWD 密碼功能已啟用 ( 預設值設定 )。 密碼功能已停用。 RTCRST 尚未重設即時時鐘。 正在重設即時時鐘 ( 暫時跳線 )。 已短接 未短接...
  • Page 140 Dell Dell support.dell.com Dell Dell Dell 使用者指南 使用者指南 ___________________________ ___________________________ Dell 診斷程式 警告 : 在您開始執行本章節中的任何程序之前，請遵循產品資訊指南 中的 安全說明。 何時使用 Dell 診斷程式 DELL Dell 注意 : Dell Dell(TM) 使用者指南 Drivers and Utilities 媒體 ( Dell Dell Drivers and Utilities CD ( Dell...
  • Page 141 Windows ® ® Microsoft Windows 啟動公用程式分割區 <Enter> • MPMemory • Dell • Test System ( 主選單 Dell Dell 從 Drivers and Utilities CD ( 可選 ) 啟動 Dell 診斷程式 Drivers and Utilities CD ( DELL <F12> Windows Windows 註 :...
  • Page 142 SATA CD-ROM Device <Enter> SATA CD-ROM 裝置 從 CD-ROM 啟動 Drivers and Utilities CD Dell 執行 32 位元 Dell 診斷程式 主選單 Dell Dell Dell 診斷程式主選單 主選單 Dell 選項 功能 Express Test 快速測試 Extended Test Custom Test Symptom Tree problem ( 使用者指南...
  • Page 143 自訂測試或徵兆樹 標籤 功能 Results ( Errors ( Help ( Configuration Dell Parameters ( Drivers and Utilities CD Dell 主選單 Dell 主選單 系統指示燈 電源指示燈 問題說明 建議的解決方法...
  • Page 144 電源指示燈 問題說明 建議的解決方法 Dell Dell Dell 使用者指南 Dell 使用者指南 BIOS 使用者指南 Dell 使用者 指南 Dell 診斷程式指示燈 警告 : 在您開始執行本章節中的任何程序之前， 請按照產品資訊指南 中的 安全說明。 1 2 3 註 :...
  • Page 145 電源指示燈 問題說明 建議的解決方法 • 使用者指南 BIOS • Dell ( 使用者指南 Dell • • Dell ( 使用者指南 Dell • 使用者指南 使用者指 南 • 使用者指南 • Dell ( 使用者指南 Dell • • • Dell 使用者指南 Dell...
  • Page 146 電源指示燈 問題說明 建議的解決方法 軟碟 碟 經 重新 料 重新 纜 • 使用者指南 使用者指 南 • 使用者指南 • Dell ( 使用者指南 Dell • 相容 使用 者指南 • • Dell ( 使用者指南 Dell...
  • Page 147 電源指示燈 問題說明 建議的解決方法 擴充 Dell ( 使用者指南 Dell 了其他 • • • 使用者指南 • Dell ( 使用者指南 Dell...
  • Page 148 嗶聲代碼 1-3-1 ( 使用者指南 Dell ( Dell 代碼 原因 適當 別 使用 1-3-1 2-4-4 位址 0FFFFh 方 4-3-1 如果您曾遇到以下嗶聲代碼錯誤，請參閱使用者指南中的 「聯絡 Dell」 ) 代碼 原因 微 暫存 1-1-2 NVRAM 讀 / 寫入失敗 1-1-3 總 1-1-4 ROM BIOS 隔計 1-2-1 始 1-2-2 暫存...
  • Page 149 代碼 原因 損耗 3-3-1 NVRAM 效 3-3-2 NVRAM 失敗 3-3-4 始 3-4-1 馳返 3-4-2 搜 3-4-3 計 滴 4-2-1 4-2-2 A20 閘 4-2-3 保護 預 岔 4-2-4 位址 0FFFFh 方 4-3-1 計 - 晶片計 4-3-3 停止 4-3-4 序 埠 埠 失敗...

  • Page 150: Microsoft Windows

    Windows Vista： 說明與支援 Windows Vista <Enter> hardware troubleshooter 恢復您的作業系統 • • Dell PC Restore by Symantec ( Windows XP) Dell Factory Image Restore ( Windows Vista) Dell PC Restore Dell Factory Image Restore 作業系統 • 作業系統 僅 使用 Microsoft Windows 系統還原...
  • Page 151 啟動系統還原 Windows XP： 注意 : 開始 → 程式集 → 附屬應用程式 → 系統工具 → 系統還原 將我的電腦還原至更早的時間點或建立還原時間點 下一步 Windows Vista： 開始 System Restore( <Enter> 註 : 用戶帳戶控制 繼續 下一步 復原上次的系統還原 注意 : Windows XP： 開始 → 程式集 → 附屬應用程式 → 系統工具 → 系統還原 取消我上次的還原...
  • Page 152 Windows XP Windows XP 200 MB 開始 → 控制台 → 效能與維護 → 系統 系統還原 關閉系統還原 使用 Dell™ PC Restore 與 Dell Factory Image Restore 注意 : Dell PC Restore Dell Factory Image Restore PC Restore Dell Factory Image Restore 註 :...
  • Page 153 完成 註 : 下一步 系統還原 確定 PC Restore 注意 : Dell PC Restore PC Restore Dell PC Restore Dell PC Restore 請勿 PC Restore PC Restore PC Restore Microsoft Windows Explorer c:\dell\utilities\DSR DSRIRRemv2.exe 註 : 結束 註 : PC Restore 結束...
  • Page 154 Windows Vista： Dell Factory Image Restore Dell <F8> Vista 修理您的電腦 下一步 確認 administrator Dell Factory Image Restore 註 : Dell Factory Tools Dell Factory Image Restore Dell Factory Image Restore 下一步 注意 : 取消 Factory Image Restore 下一步 完成 使用驅動程式與公用程式媒體...
  • Page 155 內容 → 裝置管理員 註 : 用戶帳戶控制 繼 續 向下捲動清單，以查看裝置圖示上是否有驚嘆號 ( 帶有 [ ! ] 的黃色圓形 )。 重新安裝驅動程式與公用程式 注意 : Dell support.dell.com Drivers and Utilities Dell™ 使用 Windows 裝置驅動程式回復 Windows Windows XP： Start→ 我的電腦 → 內容 → 硬體 → 裝置管理員 內容...
  • Page 156 註 : 用戶帳戶控制 繼 續 內容 驅動程式 → 回復驅動程式 恢 手動重新安裝驅動程式 據 章節擷取 Windows XP： 開始 → 我的電腦 → 內容 → 硬體 → 裝置管理員 音效或影像 ) 驅動程式 → 更新驅動程式 從清單或特定位置安裝 ( 進階 )→ 下一步 下一步 完成 Windows Vista： 電腦 Windows Vista 內容...
  • Page 157 索引 二劃 人體工學資訊 , 92 作業系統 , 95 四劃 支援網站 , 93 Dell 支援站台 , 93 五劃 主機板 , 109, 118, 138 Factory Image Restore, 152, 154 參閱 主機板 , 109, 118, 138 六劃 PC Restore, 152 在開始之前安裝零件 , 98 安全說明...
  • Page 158 系統還原 , 150 診斷程式 嗶聲代碼 , 148 Windows XP 系統還原 , 150 診斷程式指示燈 還原到之前的狀態的 疑難排解 , 150 診斷程式指示燈疑難排解 還原到之前的狀態問題 , 150 診斷程式燈 , 144 Windows Vista 系統還原 , 150 電腦前端燈 , 144 診斷程式指示燈錯誤訊息 , 144 診斷程式指示燈問題 , 144 八劃 診斷程式指示燈 , 144 使用者指南...
  • Page 159 蓋板開口 , 115, 124 說明文件 人體工學 , 92 安全 , 92 使用者指南 , 92 保固 , 92 產品資訊指南 , 92 終端用戶軟體授權協議書 , 92 管制 , 92 線上 , 93 說明與支援中心 , 94 說明檔 Windows 說明與支援中心 , 94 十五劃 標簽 Microsoft Windows, 93 服務標籤...
  • Page 160 索引...
  • Page 161 Dell™ OptiPlex™ 755 F DCTR, DCNE, DCSM, DCCY w w w . d e l l . c o m | s u p p o r t . d e l l . c o m...
  • Page 162 ____________________ 2007 Dell Inc. © F F F Dell Inc. : Dell, DELL, OptiPlex, Inspiron, Dimension, Latitude, Dell Precision, DellNet, TravelLite, OpenManage, PowerVault, Axim, PowerEdge, PowerConnect, Dell Inc.; Intel, Pentium, SpeedStep, PowerApp StrikeZone Celeron Intel Corporation Core vPro ; Microsoft, MS-DOS, Windows, Windows Vista...
  • Page 163 ..........
  • Page 164 ........Dell Diagnostics ....
  • Page 165 (Desktop System Software DSS) F " F 241) " F Dell Diagnostics F ( F 222) "Dell Diagnostics" F Readme support.dell.com...
  • Page 166 F Dell Diagnostics F F F support.dell.com F Dell ™ F F Dell ™ ™ OptiPlex Microsoft Windows Help and Support Center → Start Help and → → Support Dell User and System Guides System Guides User s Guide...
  • Page 167 ® ® Service Tag Express Service Code Service Tag Microsoft Windows License Microsoft Windows License F Service Tag F support.dell.com Express Service Code Microsoft Windows F F F " F "...
  • Page 168 F Dell Support support.dell.com F F F F F Dell Dell F , F (Desktop System Software DSS) support.dell.com Drivers & Downloads Service Tag DSS F System and Configuration → F USB Utilities Dell Notebook System Software F Dell Download Now Drivers &...
  • Page 169 F Windows XP Windows Help and Support Center Windows Help and Support : Windows XP F Start Help and Support ™ Windows Vista Start Windows Vista Help and Support " "...
  • Page 170 F F F F F F F PS/2 F USB F F ( F F F ) F...
  • Page 173 F " F 173 " F 176 " " F Dell ™ Flash BIOS F F F XP F ® ® → Microsoft Windows Start Shut → Down Shut down ® ™ Microsoft Windows Vista Start Windows Vista Start Shut Down...
  • Page 174 F F F F F F F F F Dell F F F F F ) F F F F...
  • Page 175 ( F ) ( F ) ( F 218) " )" F " F 182 " F " " F 192 F " " F 203 F " F 216 " F F F...
  • Page 176 ( F ) 5.25...
  • Page 177 ( F ) 5.25 F USB 2.0 (2) F USB F F USB USB F F LAN (Local Area Network) F " F 228 " F F F " F " F 173 ACPI...
  • Page 178 " " F F ) Windows Device Manager " " F " F 228 "...
  • Page 180 F 115-V F USB F 180 " " F (4) F PCI PCI Express, F PS/2, F eSATA...
  • Page 181 F USB F F F " " F 10-Mbps F 100-Mbps F 1-Gbps ( 1000-Mbps) F F F F NIC 10 Mbps F " "...
  • Page 182 (PC) F USB USB 2.0 (6) F VGA F F F F COM1 COM2 " " " F " F 173...
  • Page 186 (INT_SPKR) RTC (RTCRST) F (INTRUDER) (FAN_CPU) F (CPU) (BATTERY) F (12VPOWER) PCI Express x16 (SLOT1) PCI Express x1 (SLOT4) (DIMM_1, DIMM_2, DIMM_3, DIMM_4) F (PSWD) PCI (SLOT2) SATA (SATA0, PCI (SLOT3) SATA1, SATA2, SATA3) F (FRONTPANEL) (SERIAL2) (POWER) F SATA (eSATA) (AUX_LED) F (DSKT)
  • Page 187 RTC (Real-TIme Clock) RTCRST RTC ( F F USB F USB 2.0 (2) " " F USB) USB F F LAN (Local Area Network) F...
  • Page 188 F F F " F " ACPI F Dell " " Windows Device Manager " Windows XP Vista" F " F 228 "...
  • Page 189 " F " F 228 ( F ) 5.25 F (3) F PCI PCI Express, F eSATA PS/2, , USB F 190) " "...
  • Page 190 F 115-V F USB F F F " "...
  • Page 191 F 10-Mbps F 100-Mbps F 1-Gbps ( 1000- Mbps) F F F F NIC 10 Mbps F " " (PC) F USB USB 2.0 (6)
  • Page 192 F VGA F F F F COM1 COM2 " " " F " F 173...
  • Page 194 I/O F...
  • Page 196 F (INTRUDER) (INT_SPKR) F (CPU) (BATTERY) F (12VPOWER) PCI Express x16 (SLOT1) PCI (SLOT2) (DIMM_1, DIMM_2, DIMM_3, DIMM_4) F (PSWD) PCI (SLOT3) F SATA (SATA0, SATA1, F ( F F PCI-E/SLOT1 F PCI/SLOT2) SATA2) F (FRONTPANEL) (SERIAL2) (POWER) F SATA (AUX_LED) (eSATA) F (DSKT)
  • Page 197 RTC (Real-Time Clock) RTCRST RTC ( F F USB F USB 2.0 (2) F USB " " F USB) USB F...
  • Page 198 F F F " F " F 173 ACPI F Dell F LAN (Local Area Network) F " F 228 "...
  • Page 199 " " Windows Device Manager " Windows XP Vista" F 222 "Dell Diagnostics" 5.25 ( F ) F...
  • Page 200 F (2) F PCI, F PCI Express, PS/2, eSATA , USB F 201) " " F 115-V...
  • Page 201 F USB F F F " " F 10-Mbps F 100-Mbps F 1-Gbps ( 1000-Mbps)
  • Page 202 F F F F NIC 10 Mbps F " " (PC) F USB 2.0 (6) F USB...
  • Page 203 F VGA F F F F " " " F " F 173...
  • Page 207 (INT_SPKR) RTC (RTCRST) F (CPU) F (INTRUDER) F (12VPOWER) (BATTERY) PCI Express x16 (SLOT1) (DIMM_1, DIMM_2, DIMM_3, DIMM_4) F (PSWD) PCI (SLOT2) SATA (SATA0, SATA1) (SERIAL2) (FRONTPANEL) (POWER) (AUX_LED) (FAN_HDD) (DSKT) F eSATA (eSATA) (FAN_CPU) (INT_USB) F ( F PSWD...
  • Page 208 RTC (Real-Time Clock) RTCRST RTC ( F F F F F F Dell ( F F ) " Dell"...
  • Page 209 F USB USB (2) " " F USB) USB F " " Windows Device Manager " Windows XP Vista" F 226 " "...
  • Page 210 F F F F " " F 173...
  • Page 212 F " F 228 " F 213 " " F AC...
  • Page 213 F USB F F F F 10-Mbps F 100-Mbps F 1000-Mbps (1-Gbps) F F F 10 Mbps...
  • Page 214 F " " (PC) F USB USB (5) F F DVI F F F VGA F VGA" " F 214 F AC F " F 228 " F VGA F VGA F F...
  • Page 215 F VGA F DVI F DVI-I...
  • Page 216 " F " F 173 " F " F 216) F F F " )" F 218) 1 . ( ½...
  • Page 217 F AC...
  • Page 218 F F F...
  • Page 221 F (PSWD) (FAN_FRONT) F (FAN_HDD) (INT_SPKR) CMOS (RTCRST) F (SATA_PWR) (DIMM_2) (FAN_REAR) (DIMM_1) F (INTRUDER) SATA (SATA0) F (CPU) (BATT) PSWD F ( F...
  • Page 222 RTCRST RTC (Real-Time Clock) RTC ( F Dell F F Dell Support support.dell.com Dell F Express Service Code F Dell Service Tag Dell F Express Service Code Service Tag " " Express Service Code :___________________________ Service Tag :___________________________ Dell Diagnostics...
  • Page 223 F Dell F F ( F F F ) F F F F F <F12> ™ DELL Dell Diagnostics F " F 240 " ® ® Microsoft Windows DiagnosticsBoot to Utility Partition <Enter> MPMermory Diagnostic Dell Diagnostic Utility Diagnostics Test System...
  • Page 224 Dell Diagnostics F <F12> DELL Windows Windows SATA CD-ROM Device <Enter> SATA CD-ROM Device Boot from CD-ROM Dell Diagnostics Run the 32 Bit Dell Diagnostics Main Menu Dell Diagnostics " Dell Diagnostics" F 224) Dell Diagnostics Dell Diagnostics F Main Menu...
  • Page 225 Express Test 10 20 Extended Test Custom Test Symptom Tree F Dell ( " Dell" F F ) Service Tag F Dell F Service Tag Service Tag " " Custom Test Symptom Tree F Results ( ) Errors ( Help (...
  • Page 226 Configuration Dell Diagnostics Parameters F F F Dell Diagnostics Main Menu Dell Diagnostics Main Menu...
  • Page 227 F " " F 228) Dell Diagnostics Dell Diagnostics F Dell " Dell" F F ) " " " " BIOS F F 232 POST " F " F 228) F " " F 228) POST " F "...
  • Page 228 " F " F 228) F Dell POST " Dell" F F ) 1, 2, 3, POST " " F F ) BIOS F Dell " Dell" F F )
  • Page 229 F Dell " Dell" F F ) " " F F ) F " " F F ) ( F ) F " " F F ) F Dell " Dell" F F ) " F " ( F ) F F Dell "...
  • Page 230 F USB " " F F ) F " " ( F ) F " " F F ) F Dell " Dell" F F )
  • Page 231 F F F " F " F F ) F F F F Dell " Dell" F F ) ( F F F F " F " " F " F 234) F Dell " Dell" F F )
  • Page 232 F ( F F ) F F F F F F - F ( F " " F F ) F F F F Dell " Dell" F F ) 1-3-1 ( F Dell ( " Dell" F F )
  • Page 233 1-3-1 2-4-4 4-3-1 0FFFFh F " Dell" 1-1-2 1-1-3 / F NVRAM 1-1-4 ROM BIOS 1-2-1 1-2-2 1-2-3 1-3-1 2-4-4 3-1-1 DMA Slave 3-1-2 DMA Master 3-1-3 Master 3-1-4 Slave 3-2-2 3-2-4 3-3-1 F NVRAM 3-3-2 F NVRAM F 3-3-4...
  • Page 234 4-2-1 4-2-2 4-2-3 4-2-4 4-3-1 0FFFFh 4-3-3 4-3-4 4-4-1 4-4-2 4-4-3 4-4-4 F F F Windows XP : → Start Help and Support <Enter> hardware troubleshooter Fix a Problem F Hardware Troubleshooter Hardware Troubleshooter F Next Windows Vista : Start Windows Vista Help and Support <Enter>...
  • Page 235 Dell PC Restore by Symantec ( Windows XP) Dell Factory Image Restore ( Windows Vista) F F Dell PC Restore Dell Factory Image Restore F F Operating System F F F - F Operating System F F F F Microsoft Windows System Restore...
  • Page 236 Windows XP: → → → → Start All Programs Accessories System Tools System Restore Restore my computer to an earlier time Create a restore point Next F Windows Vista: Start F Start Search F <Enter> System Restore F F User Account Control Continue Next Windows XP:...

  • Page 237: Dell Factory Image Restore

    F F PC Restore Dell Factory Image Restore F Dell PC Restore by Symantec Dell Factory Image Restore F Dell PC Restore (Windows XP) Dell Factory Image Restore (Windows Vista) F PC Restore Factory Image Restore Windows XP : Dell PC Restore F PC Restore : www.dell.com...
  • Page 238 F <Ctrl><F11> F PC Restore F Reboot Restore F Confirm 6 10 Finish Finish F Next System Restore PC Restore Dell PC Restore PC Restore Dell PC Restore Dell PC Restore PC Restore PC Restore PC Restore Microsoft Windows Explorer c:\dell\utilities\DSR...
  • Page 239 Local Disk (C) Windows Explorer, Properties F Free Space F F PC Restore Removal F Finish Windows Vista : Dell Factory Image Restore F <F8> Dell F F Vista Advanced Boot Options Repair Your Computer F F System Recovery Options...
  • Page 240 Next Confirm Data Deletion F Factory Image Restore F Cancel Next Finish F F F Microsoft Windows ® ® Microsoft Windows → Start Control Panel F Pick a Category F Performance and Maintenance F System F F System Properties Hardware F Device Manager...
  • Page 241 Device Manager F F User Account Control Continue [!]) F ( " F " F 241) F Dell Support support.dell.com F Dell ™ F Windows Device Driver Rollback F F F F F F Windows Device Driver Rollback Windows XP : →...
  • Page 242 Properties → Drivers Roll Back Driver F Device Driver Rollback F F F F F 235) " " Windows XP : → → → → Start My Computer Properties Hardware Device Manager F ( F Audio Video) → Driver Update Driver →...
  • Page 243 → → Driver Update Driver Browse my computer for driver software F F F Browse → → Next Finish...
  • Page 245 , 169 , 167 Microsoft Windows , 226, 228 , 167 Service Tag , 232 , 166 , 235 , 166 , 226, 228 , 166 , 232 , 235 , 192, 203 , 182 , 235 , 232 , 235 , 166 , 226, 228 , 169...
  • Page 246 , 237, 239 Factory Image Restore , 169 Center , 169 , 169 Help and Support Center , 188, 199 F Dell Support , 168 , 168 , 232 , 232 , 166 , 166 , 185, 195, 220 , 166...
  • Page 247 , 167 Service Tag , 235 System Restore Windows Vista , 235 , 237 Factory Image Restore Windows XP , 169 , 235 , 241 Device Driver Rollback , 169 Help and Support Center , 237 PC Restore...

Table of Contents
