ATLAS
CABLE 4-DEVICE
Universal Remote Control
User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Universal Electronics Atlas

Summary of Contents for Universal Electronics Atlas

  • Page 1 Atlas Manual 4/8/02 9:37 AM Page 1 ATLAS CABLE 4-DEVICE Universal Remote Control User’s Guide...

  • Page 2: Table Of Contents

    Atlas Manual 4/8/02 9:37 AM Page 2 TABLE OF CONTENTS Introduction ....... . .

  • Page 3: Introduction

    4/8/02 9:37 AM Page 3 INTRODUCTION The Atlas Cable 4-Device Universal Remote Control by Universal Electronics is our latest generation universal remote control. Its sophisticated technology allows you to consolidate all of your original home entertainment remote controls into one easy-to-use product. Moreover, it’s packed with advanced features such as: •...

  • Page 4: Features And Functions

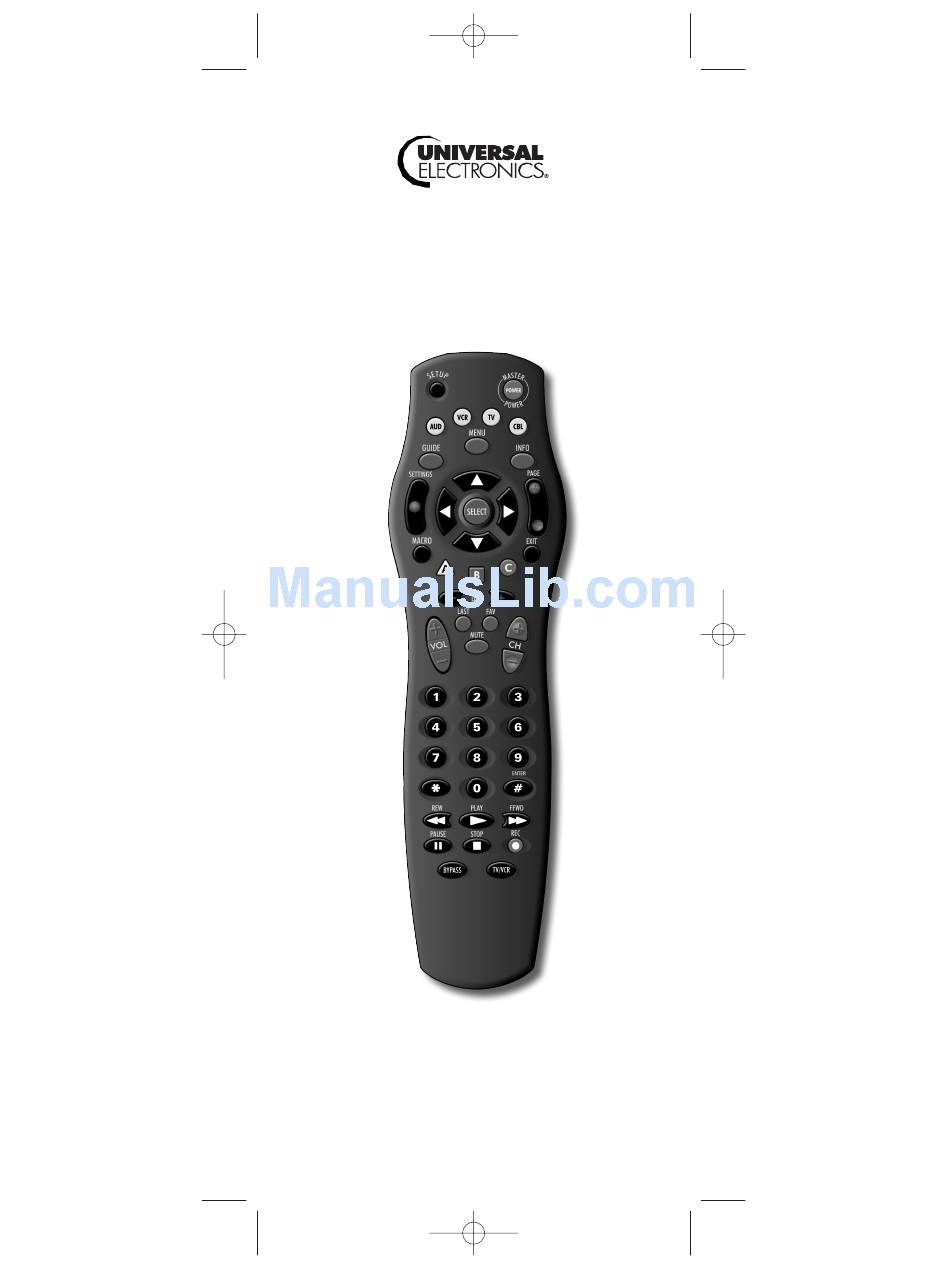

    Atlas Manual 4/8/02 9:37 AM Page 4 FEATURES AND FUNCTIONS Use the illustration below to locate features on the Atlas Universal Remote Control and then study the Key Charts (on the next two pages) to learn how they function.

  • Page 5: Key Charts

    Atlas Manual 4/8/02 9:37 AM Page 5 Key Charts Use SETUP for all programming sequences. Press POWER once to turn on or off a home entertainment device. Press AUD, VCR, TV, or CBL once to select a home entertainment device to control. Each device key...
  • Page 6 Atlas Manual 4/8/02 9:37 AM Page 6 FEATURES AND FUNCTIONS Key Charts (continued) After programming, press MACRO once to run a macro (see Using Macros on page 26). Use EXIT to exit out of your cable converter’s menu and guide.

  • Page 7: Installing Batteries

    Atlas Manual 4/8/02 9:37 AM Page 7 Use TV/VCR to switch the TV input to view video or TV programs. For amplifiers/receivers, use this key to select input or output. In all modes except CBL, use these keys to control a VCR, DVD player, or PVR.

  • Page 8: Programming Device Control

    Replace the batteries and the unit will be restored to its full functionality, complete with your favorite settings. PROGRAMMING DEVICE CONTROL The Atlas Universal Remote Control is preprogrammed to operate a Scientific Atlanta cable converter, an RCA TV, an RCA VCR, and a Pioneer audio receiver. To control devices other than the default brands, perform the following steps;...

  • Page 9: Programming Tv/Vcr Combo Control

    Atlas Manual 4/8/02 9:37 AM Page 9 NOTE: If the selected mode key emits a long blink, the code is invalid. Repeat steps 2 through 3 and try entering the same code again. Aim the remote control at the device and press POWER once.
  • Page 10 Atlas Manual 4/8/02 9:37 AM Page 10 PROGRAMMING TV/VCR COMBO CONTROL 3. (continued) NOTE: If the VCR key did not blink twice after enter- ing the code’s last digit, then repeat steps 2 through 3 and try entering the same code again.

  • Page 11: Manufacturer's Codes

    Atlas Manual 4/8/02 9:37 AM Page 11 MANUFACTURER’S CODES Setup Codes for Audio Amplifiers: 0078 Harman/Kardon 0892 0331 Luxman 0165 Marantz 0321, 0892 Nakamichi 0321 Optimus 0395 Philips 0892 Polk Audio 0892 Realistic 0395 Sansui 0321 Sony 0689 Soundesign 0078...

  • Page 12: Setup Codes For Cable Converters

    Atlas Manual 4/8/02 9:37 AM Page 12 MANUFACTURER’S CODES Setup Codes for Audio Receivers (continued): Sunfire 1313 Technics 0039, 1308, 1309, 1518 Thorens 1189 Victor 0074 Wards 0014 Yamaha 0176, 0186, 1176 Setup Codes for Cable Converters: 0003, 0008, 0017...

  • Page 13: Setup Codes For Vcrs And Pvrs

    Atlas Manual 4/8/02 9:37 AM Page 13 0558, 0623 Kenwood 0534, 0682 Konka 0711, 0719, 0720, 0721 Magnavox 0503, 0675 Marantz 0539 Microsoft 0522 Mitsubishi 0521 Onkyo 0503, 0627 Optimus 0571 Oritron 0651 Panasonic 0490, 0632, 0677, 0678 Philips 0503, 0539...
  • Page 14 Atlas Manual 4/8/02 9:37 AM Page 14 MANUFACTURER’S CODES Setup Codes for VCRs and PVRs (continued): Curtis Mathes 0060, 0035, 0041, 0162, 0760 Cybernex 0240 Daewoo 0045, 0278 Denon 0042 Dynatech 0000 Electrohome 0037 Electrophonic 0037 Emerex 0032 Emerson 0037, 0184, 0000, 0121, 0043, 0209, 0002, 0278, 0479...
  • Page 15 Atlas Manual 4/8/02 9:37 AM Page 15 0104, 0067, 0041, 0038 Nikko 0037 Noblex 0240 Olympus 0035 Optimus 0037, 0048, 0104, 0162, 0432, 1162 Orion 0184, 0209, 0002, 0479 Panasonic 0035, 0162, 0225, 0616, 1162 Penney 0035, 0037, 0240, 0042, 0038...

  • Page 16: Setup Codes For Tvs

    Atlas Manual 4/8/02 9:37 AM Page 16 MANUFACTURER’S CODES Setup Codes for VCRs and PVRs (continued): Vector 0045 Vector Research 0038 Video Concepts 0045 Videosonic 0240 Wards 0060, 0035, 0048, 0047, 0081, 0240, 0000, 0042, 0072, 0149, 0760 White Westinghouse 0209, 0072, 0278...
  • Page 17 Atlas Manual 4/8/02 9:37 AM Page 17 Electroband 0000 Emerson 0154, 0236, 0463, 0180, 0282, 0178, 0019, 0179, 0039, 0623, 0624 Envision 0030 Fisher 0154 Fujitsu 0179, 0683 Funai 0180, 0179, 0171 Futuretech 0180 0047, 0051, 0451, 0093, 0282, 0178, 0021, 0135, 1147, 1347...
  • Page 18 Atlas Manual 4/8/02 9:37 AM Page 18 MANUFACTURER’S CODES Setup Codes for TVs (continued): Orion 0236, 0463, 0179 Panasonic 0051, 0250 Penney 0047, 0156, 0051, 0060, 0030, 0178, 0021, 0019, 0056, 0039, 0135, 1347 Philco 0054, 0463, 0030, 0145, 0019...

  • Page 19: Setup Codes For Tv/Vcr Combos

    Atlas Manual 4/8/02 9:37 AM Page 19 Teknika 0054, 0180, 0150, 0060, 0019, 0179, 0056, 0016, 0039, 0092 Telefunken 0056 Toshiba 0154, 0156, 0060, 1256 Totevision 0039 Vector Research 0030 Victor 0053 Vidikron 0054 Vidtech 0178, 0019 Wards 0054, 0165, 0030, 0178, 0021, 0019, 0179, 0056, 0016...

  • Page 20: Searching For Your Code

    SEARCHING FOR YOUR CODE If your home entertainment device does not respond to the Atlas Universal Remote Control after trying all of the codes listed for your brand, or if your brand is not listed at all, try searching for your code.

  • Page 21: Checking The Codes

    9:37 AM Page 21 CHECKING THE CODES If you have set up the Atlas Universal Remote Control using the Searching For Your Code procedure (on the previous page), you may need to find out which four-digit code is operating your equipment. For example, to find out which code is operating your TV: On the remote control, press TV once.

  • Page 22: Programming Id Lock

    4/8/02 9:37 AM Page 22 PROGRAMMING ID LOCK The Atlas Universal Remote Control is preprogrammed and locked at the factory to operate a Scientific Atlanta cable converter. However, if you have another brand or model of cable converter and interactive service that you would like to control, then you’ll need to perform the following steps to...

  • Page 23: Programming Channel Control Lock

    Atlas Manual 4/8/02 9:37 AM Page 23 PROGRAMMING CHANNEL CONTROL LOCK By default, the remote control’s channel-control capabilities are locked to the cable converter. The affected keys* are 0 ~ 9, CH+, CH-, ENTER, and LAST. This will guarantee that you do not inadvertently change a channel on your TV or VCR.

  • Page 24: Using The Master Power Key

    9:37 AM Page 24 USING THE MASTER POWER KEY The Atlas Universal Remote Control has a unique feature that allows you to sequentially turn on or off all of your home entertainment devices with a single key press. To Program The Master Power Key:...

  • Page 25: Re-Assigning Device Keys

    9:37 AM Page 25 RE-ASSIGNING DEVICE KEYS The Atlas Universal Remote Control can be set up to control a second TV or VCR, or any combination of up to four home entertainment devices. For example, to have the unit control a TV, a Cable Converter, and two...

  • Page 26: Using Macros

    9:37 AM Page 26 USING MACROS With programming,the MACRO key on your Atlas Universal Remote Control can be setup to perform repetitive, time- consuming operations through the press of a single key. A macro can be used to control a home theater operation,...

  • Page 27: Example - Programming A Master Power Key With Instant Channel Selection

    Atlas Manual 4/8/02 9:37 AM Page 27 To Clear A Macro: On the remote control, press and hold SETUP until the last-selected device key blinks twice, then release SETUP. Enter 9 - 9 - 5. Press MACRO once. Press and hold SETUP until the last-selected device key blinks twice, then release SETUP.

  • Page 28: Changing Volume Lock

    9:37 AM Page 28 CHANGING VOLUME LOCK On the Atlas Universal Remote Control, Global Volume Lock is set to TV, so you can control TV volume while in the TV, VCR, or Cable mode. If desired, you can still perform Individual Volume Unlock on a selected device to set its volume control for independent operation.

  • Page 29: To Lock Volume Control To One Mode

    Atlas Manual 4/8/02 9:37 AM Page 29 To Lock Volume Control To One Mode (Global Volume Lock): NOTE: If you lock the volume controls to the AUDIO mode, you will still have control of the audio device’s volume in all other modes (i.e., TV, VCR, and CBL).

  • Page 30: Restoring Keymoved Keys To Default Settings

    Atlas Manual 4/8/02 9:37 AM Page 30 TROUBLESHOOTING PROBLEM: Mode key does not blink when you press a key. SOLUTION: Replace the batteries with two (2) new AA alkaline batteries (see page 7). PROBLEM: Mode key blinks when you press a key, but home entertainment device does not respond.

  • Page 31: Additional Information

    For help via e-mail, contact us at: cablehelp@ueic.com Copyright 2002 by Universal Electronics Inc. No part of this publication may be reproduced, transmitted, tran- scribed, stored in any retrieval system, or translated to any language, in any form or by any means, electronic, mechanical, magnetic, optical, manual, or otherwise, with- out prior written permission of Universal Electronics Inc.
  • Page 32 Atlas Manual 4/8/02 9:37 AM Page 32...
