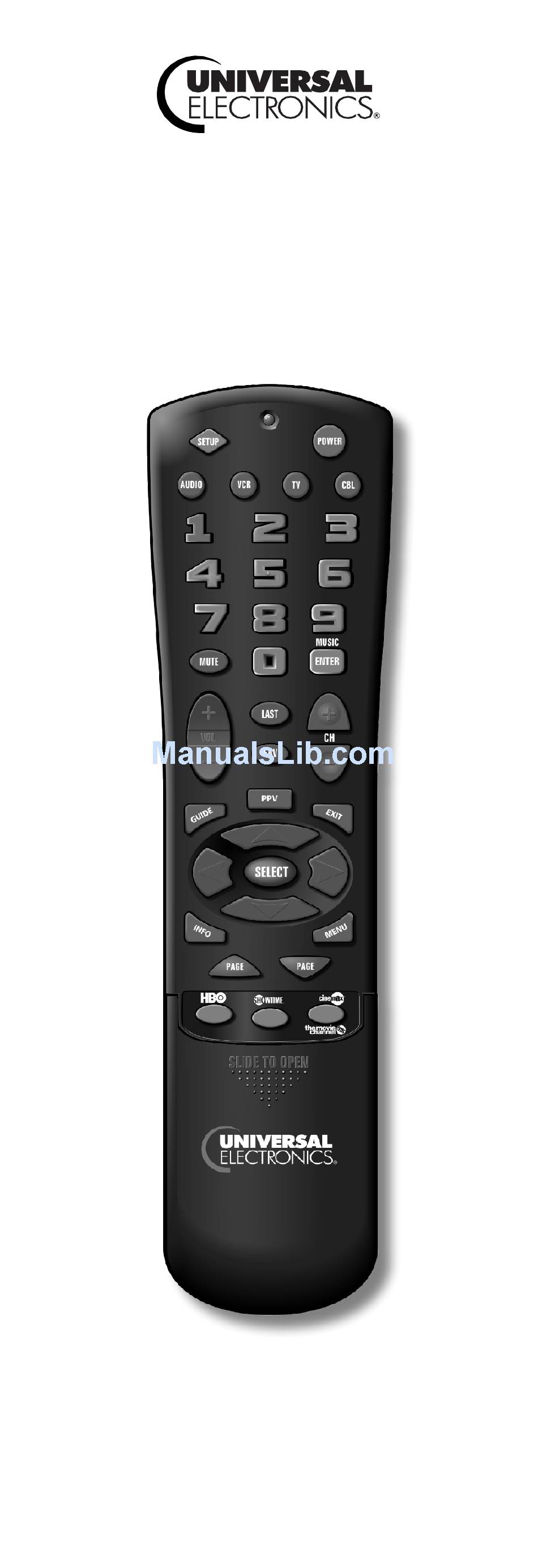

- Page 1 ™ MILLENNIUM Universal Remote Control User’s Guide...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ....... . 3 Features And Functions . -
Page 3: Introduction
INTRODUCTION The Universal Electronics Millennium™ 4 is our latest generation universal remote control. It is designed with sophisticated technology that will allow you to finally consolidate the clutter of all of the original remote controls in your home entertainment system. It’s packed with easy- to-use features such as: •... -
Page 4: Features And Functions
FEATURES AND FUNCTIONS Use the illustration below to locate Millennium 4 features and then study the Key Charts (on the next two pages) to learn how they function. -
Page 5: Key Charts
Key Charts The LED (red light) blinks to show that the remote control is working and is sending signals. Press AUDIO, VCR, TV, or CBL once to select a home entertainment component to control. Press POWER once to turn on or off the selected home entertainment component. -
Page 6: Program Information
FEATURES AND FUNCTIONS Key Charts (continued) Use cursor keys to move the cursor in the program guide and menu screens. Use SELECT/OK to choose options, PPV events, and to tune programs from the program guide. Use INFO to display current channel and program information. -
Page 7: Installing Batteries
INSTALLING BATTERIES ❶ ❷ ❸ On the back of the Millennium 4, push the tab and lift off the battery cover. Obtain two (2) fully-charged AA alkaline batteries. Match the + and – marks on the batteries to the + and – marks in the battery case, then insert the new batteries. -
Page 8: Programming Tv Control
PROGRAMMING TV CONTROL NOTE: If you own a TV/VCR combination, skip this section and perform “Programming TV/VCR Combo Control” on page 16. Locate the brand name of your TV in the Setup Codes for TVs in the next section, and write it in the space below. TV Brand: __________________________________ The brands are listed in alphabetical order with the most popular codes listed first.You will use one of these codes... - Page 9 Belcor 0019 Bell & Howell 0154, 0016 Bradford 0180 Brockwood 0019 Broksonic 0236, 0463 0180 Candle 0030, 0056 Carnivale 0030 Carver 0054 Celebrity 0000 Cineral 0451, 0092 Citizen 0060, 0030, 0056, 0092, 0280 Concerto 0056 Contec 0180 Craig 0180 Crosley 0054 Crown 0180...
- Page 10 PROGRAMMING TV CONTROL Setup Codes for TVs (continued): 0047, 0747, 0054, 0154, 0156, 0178 Logik 0016 Luxman 0056 0150, 0030, 0178, 0019 0060, 0030, 0056, 0019 Magnavox 0054, 0030, 0179 Majestic 0016 Marantz 0054, 0030 Matsushita 0250 Megatron 0178, 0145 Memorex 0154, 0250, 0463, 0150, 0178, 0179, 0056, 0016 Midland...
- Page 11 Scotch 0178 Scott 0236, 0180, 0178, 0179, 0019 Sears 0047, 0747, 0054, 0154, 0156, 0178, 0179, 0056, 0171 Semivox 0180 Semp 0156 Sharp 0093, 0688, 0165 Shogun 0019 Signature 0016 Sony 0000 Soundesign 0180, 0178, 0179 Squareview 0171 Starlite 0180 Supreme 0000 Sylvania...
-
Page 12: Programming Vcr/Dvd Player Control
PROGRAMMING VCR/DVD PLAYER CONTROL NOTE: If you own a TV/VCR combination, skip this section and perform “Programming TV/VCR Combo Control” on page 16. Locate the brand name of your VCR in Setup Codes for VCRs on the next page, or your DVD player in Setup Codes for DVD Players on page 15, and write it in the appropriate space below. -
Page 13: Setup Codes For Vcrs
Setup Codes for VCRs: Admiral 0048, 0209 Adventura 0000 Aiko 0278 Aiwa 0037, 0000 Akai 0041 America Action 0278 American High 0035 Asha 0240 Audiovox 0037 Beaumark 0240 Bell & Howell 0104 Broksonic 0184, 0121, 0209, 0002, 0479, 0295 0072, 0278 Calix 0037 Canon... - Page 14 PROGRAMMING VCR/DVD PLAYER CONTROL Setup Codes for VCRs (continued): Kenwood 0067, 0041 Kodak 0035, 0037 0037 Lloyd’s 0000 Logik 0072 0035 0240, 0043 MGN Technology 0240 0000, 0240 Magnasonic 0278 Magnavox 0035, 0039, 0081, 0000 Magnin 0240 Marantz 0035, 0081 Marta 0037 Matsushita...
-
Page 15: Setup Codes For Dvd Players
ReplayTV 0614, 0616 Runco 0039 0042 Samsung 0045, 0240 Samtron 0643 Sanky 0048, 0039 Sansui 0000, 0067, 0209, 0041, 0479 Sanyo 0047, 0240, 0104, 0046 Scott 0184, 0045, 0121, 0043 Sears 0035, 0037, 0047, 0000, 0042, 0104, 0046, 0105 Semp 0045 Sharp 0048... -
Page 16: Programming Tv/Vcr Combo Control
PROGRAMMING VCR/DVD PLAYER CONTROL Setup Codes for DVD Players (continued): Konka 0711, 0719, 0720, 0721 Magnavox 0503, 0675 Marantz 0539 Mitsubishi 0521 Onkyo 0503, 0627 Optimus 0571 Oritron 0651 Panasonic 0490, 0677, 0632, 0678, 0679 Philips 0503, 0539 Pioneer 0525, 0571, 0632 Proscan 0522 0522, 0571... -
Page 17: Setup Codes For Tv/Vcrs
NOTE: If the LED did not blink twice after entering the code’s last digit, then repeat steps 2 through 3 and try entering the same code again. Aim the Millennium 4 at your TV/VCR Combo and press POWER once. The unit should turn off. -
Page 18: Programming Cable Converter (Or Dbs Receiver) Control
PROGRAMMING TV/VCR COMBO CONTROL Setup Codes for TV/VCR Combos (continued): Magnin 0240 Memorex 0037, 0162 (for TV use 0250) Mitsubishi 0048 (for TV use 0093) Orion 0002, 0294, 0479 Panasonic 0035 (for TV use 0051), 0162 (for TV use 0250) Penney 0035 (for TV use 0051), 0240, 0162 (for TV use 0250) Quasar... -
Page 19: To Program The Cbl Key
To Program the CBL Key: On the next page, locate the brand name of your Cable Converter in Setup Codes For Cable Converters, or DBS (Direct Broadcast Satellite) Receiver in Setup Codes For DBS Receivers, and write it in the appropriate space below. Cable Converter Brand: ________________ DBS Receiver Brand: __________________ The brands are listed in alphabetical order... -
Page 20: To Lock The Cbl Key
PROGRAMMING CABLE CONVERTER (OR DBS RECEIVER) CONTROL (continued) To Lock the CBL Key: On the Millennium 4, press CBL once. Press and hold SETUP until the LED blinks twice, then release SETUP. Enter 9 - 9 - 7. The LED will blink twice. Press CH+ once. -
Page 21: Programming Channel Control Lock
Next Level 0869, 0892 Philips 0749, 1076 Proscan 0392 0566, 0392 RadioShack 0869 Samsung 1109 Sony 0639 Star Choice 0869 Toshiba 0749 PROGRAMMING CHANNEL CONTROL LOCK By activating this feature, the Millennium 4 will only allow access to the channel control capabilities of your cable converter. -
Page 22: Programming Audio Control
PROGRAMMING AUDIO CONTROL Locate the brand name of your audio amplifier or receiver in one of the accompanying code lists at the end of this section.Write it in the appropriate space below. Audio Amplifier Brand: ________________________ Audio Receiver Brand:__________________________ The brands are listed in alphabetical order with popular codes listed first.You will use one of these codes to program the Millennium 4 to operate your audio device: Turn on the audio device. -
Page 23: Setup Codes For Audio Receivers
Optimus 0395 Panasonic 0308 Philips 0892 Polk Audio 0892 Realistic 0395 Sony 0689 Soundesign 0078 Technics 0308 Victor 0331 Wards 0078 Yamaha 0354 Setup Codes for Audio Receivers: 0531 Adcom 0616 Aiwa 1405, 0121, 0405 Capetronic 0531 Carver 0008 Casio 0195 Clarinette 0195... -
Page 24: Searching For Your Code
PROGRAMMING AUDIO CONTROL Setup Codes for Audio Amplifiers (continued): Victor 0074 Wards 0014, 0054 Yamaha 0176, 1176, 0186 Yorx 0195 Zenith 0857 SEARCHING FOR YOUR CODE If your TV,VCR or DVD Player, Cable Converter, or Audio Component does not respond to the Millennium 4 after trying all of the codes listed for your brand, or if your brand is not listed at all, try searching for your code. -
Page 25: Checking The Codes
CHECKING THE CODES If you have set up the Millennium 4 using the Searching For Your Code procedure, you may need to find out which four-digit code is operating your equipment: For example, to find out which code is operating your TV: Turn on your TV. -
Page 26: Re-Assigning Device Keys
RE-ASSIGNING DEVICE KEYS The Millennium 4 can be set up to control a second TV or VCR, or any combination of four home entertainment components. For example, to have the Millennium 4 control a TV, a Cable Converter, and two VCRs, you will need to re-assign the unused AUDIO key to operate the second VCR as follows: On the Millennium 4, press and hold SETUP... -
Page 27: Changing Volume Lock
CHANGING VOLUME LOCK The Millennium 4 is set to control volume of a component through your TV while in the TV,VCR, or Cable mode. However, in the Audio mode, you have separate control of of your audio component’s volume. If your TV is not remote controllable, or if you would like the volume to be controlled by a different component, you can change the Volume Lock setting to control a volume through a non-associated mode (e.g., through the cable in... -
Page 28: To Change Volume Lock To The Audio Mode
CHANGING VOLUME LOCK ( continued) To Change Volume Lock to the Audio Mode: NOTE: Performing these steps will allow you to access the volume control of your audio component in all modes. On the Millennium 4, press and hold SETUP until the LED blinks twice, then release SETUP. -
Page 29: Troubleshooting
TROUBLESHOOTING PROBLEM: LED does not blink when you press a key. SOLUTION: Replace the batteries with two (2) new AA alkaline batteries (see page 7). PROBLEM: LED blinks when you press a key, but home entertainment component does not respond. SOLUTION: Make sure you are aiming the Millennium 4 at your home entertainment component and that you are within 15 feet of the component you are... -
Page 30: Additional Information
(do not type in http:// or www before the address) For help via e-mail, contact us at: CableHelp@ueic.com Copyright 2003 by Universal Electronics Inc. No part of this publication may be reproduced, transmitted, transcribed, stored in any retrieval system, or translated...
