5/8/03 5:18 PM Page 3 INTRODUCTION The Atlas Cable 4-Device Universal Remote Control by Universal Electronics is our latest generation universal remote control. Its sophisticated technology allows you to consolidate all of your original home entertainment remote controls into one easy-to-use product. Moreover, it’s packed with advanced features such as: •...

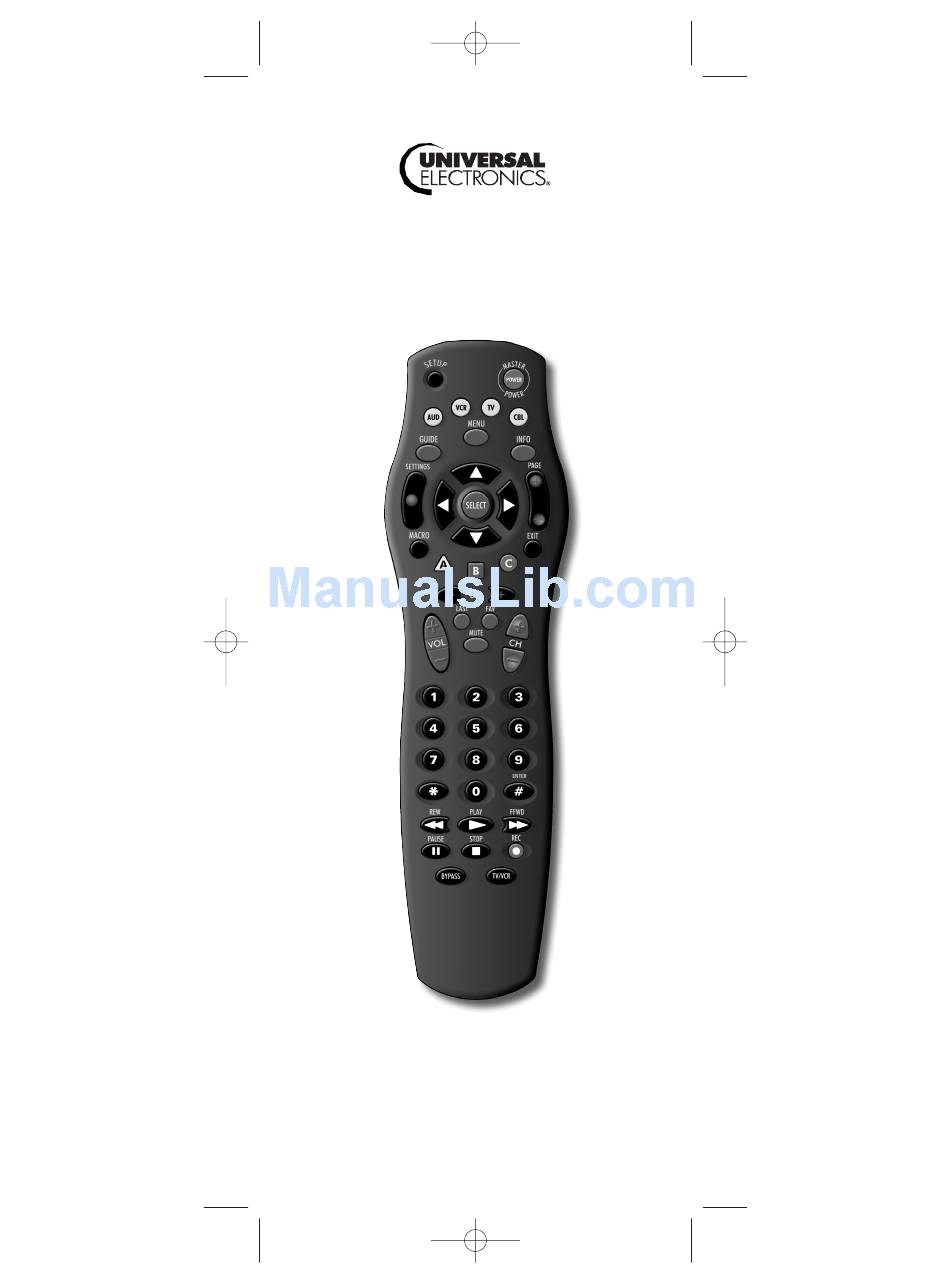

Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 4 FEATURES AND FUNCTIONS Use the illustration below to locate features on the Atlas Universal Remote Control and then study the Key Charts (on the next two pages) to learn how they function.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 5 Key Charts Use SETUP for all programming sequences. Press POWER once to turn on or off a home entertainment device. Press AUD, VCR, TV, or CBL once to select a home entertainment device to control.
Page 6
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 6 FEATURES AND FUNCTIONS Key Charts (continued) After programming, press MACRO once to run a macro (see Using Macros on page 17). Use EXIT to exit out of your cable converter’s menu and guide. Use A, B, or C to access additional cable features (see your cable converter’s manual).
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 7 Use TV/VCR to switch the TV input to view video or TV programs. For amplifiers/receivers, use this key to select input or output. In all modes except CBL, use these keys to control a VCR, DVD player, or PVR.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 8 INSTALLING BATTERIES (continued) Obtain two (2) new AA alkaline batteries. Match the + and – marks with those in the battery case, then insert the new batteries. Align the cover’s keys with the case’s holes and press the cover back into place.
Page 9
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 9 NOTE: If the selected mode key emits a long blink, the code is invalid. Repeat steps 2 and 3 and try entering the same code again. Aim the remote control at the device and press POWER once.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 10 PROGRAMMING TV/VCR COMBO CONTROL If you own a TV/VCR Combo, perform the following instructions to control this device: Turn on your TV/VCR Combo and insert a video cassette. On the remote control, press VCR once. Press and hold SETUP until the VCR key blinks twice, then release SETUP.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 11 SEARCHING FOR YOUR CODE If your home entertainment device does not respond to the Atlas Universal Remote Control after trying all of the codes listed for your brand, or if your brand is not listed at all, try searching for your code.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 12 CHECKING THE CODES If you have set up the Atlas Universal Remote Control using the Searching For Your Code procedure (on the previous page), you may need to find out which four-digit code is operating your equipment.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 13 PROGRAMMING ID LOCK The Atlas Universal Remote Control is preprogrammed and locked at the factory to operate a Scientific Atlanta cable converter. However, if you have another brand or model of cable converter and interactive service that you would like to control, then you’ll need to perform the following steps to unlock the cable ID Lock, enter in a new manufacturer’s...
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 14 PROGRAMMING CHANNEL CONTROL LOCK By default, the remote control’s channel-control capabilities are locked to the cable converter. The affected keys* are 0 ~ 9, CH+, CH-, ENTER, and LAST. This will guarantee that you do not inadvertently change a channel on your TV or VCR.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 15 USING THE MASTER POWER KEY The Atlas Universal Remote Control has a unique feature that allows you to sequentially turn on or off all of your home entertainment devices with a single key press. NOTE: MASTER POWER only works in the CBL mode.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 16 RE-ASSIGNING DEVICE KEYS The Atlas Universal Remote Control can be set up to control a second TV or VCR, or any combination of up to four home entertainment devices. For example, to have the unit control a TV, a Cable Converter, and two VCRs, you will need to re-assign the unused AUD key to operate the second VCR as follows:...
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 17 USING MACROS With programming,the MACRO key on your Atlas Universal Remote Control can be setup to perform repetitive, time- consuming operations through the press of a single key. A macro can be used to control a home theater operation, to set a favorite channel, or for other multiple functions you would like to control with one key press (see exam- ples below).
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 18 USING MACROS (continued) To Clear A Macro: On the remote control, press and hold SETUP until the last-selected device key blinks twice, then release SETUP. Enter 9 - 9 - 5. The last-selected device key will blink twice.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 19 Repeat steps 1 through 3 (of this section) for each device you want volume to be unlocked. Now, after you select a device that has volume unlocked (e.g., CBL), pressing VOL+, VOL–, or MUTE, will control the device’s volume only in its own mode.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 20 TROUBLESHOOTING PROBLEM: Mode key does not blink when you press a key. SOLUTION: Replace the batteries with two (2) new AA alkaline batteries (see page 7). PROBLEM: Mode key blinks when you press a key, but home entertainment device does not respond.
For help via e-mail, contact us at: cablehelp@ueic.com Copyright 2003 by Universal Electronics Inc. No part of this publication may be reproduced, transmitted, transcribed, stored in any retrieval system, or translated to any language, in any form or by any means, electronic, mechanical, magnetic, optical, manual, or otherwise, without prior written permission of Universal Electronics Inc.
Page 23 INTRODUCCIÓN El control remoto universal para cable y 4-Dispositivos Atlas de Universal Electronics es nuestro control remoto universal de última generación. Su sofisticada tecnología le permitirá reunir todos los controles remotos de sus dispositivos de entreten- imiento doméstico en un único aparato de fácil manejo.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 24 CARACTERÍSTICAS Y FUNCIONES Refiérase a la ilustración mostrada más adelante para ubicar las funciones del Control Remoto Universal Atlas y estudie a continuación los Cuadros De Teclas (en las dos páginas siguientes) para aprender a usar cada una de ellas.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 25 Cuadros De Teclas Use SETUP para todas las secuencias de programación. Presione POWER una vez para encender o apagar un dispositivo de entretenimiento doméstico. Presione AUD, VCR, TV, o CBL para seleccionar el dispositivo que desea controlar.
Page 26
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 26 CARACTERÍSTICAS Y FUNCIONES Cuadros De Teclas (continuación) DAY+ DAY- ) para avanzar o retroceder un día en su guía de programas del convertidor de cable. Use VOL+ (or VOL-) para subir o bajar el volumen del sonido.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 27 En todos los modos excepto CBL,use estas teclas para controlar un VCR, reproductor de DVD o PVR.Para grabar en el modo VCR,presione REC dos veces. Use estas teclas (excepto REC) en el modo CBL para controlar el VOD (Video On Demand), en los casos en que esté...
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 28 INSTALACIÓN DE BATERÍAS (continuación) Alinee las teclas de la cubierta con los orificios de la carcasa y empuje la cubierta anterior hasta que quede en su sitio. La pestaña hará clic cuando la cubierta esté...
Page 29
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 29 Dirija el control remoto hacia el dispositivo y presione POWER una vez. El dispositivo debería apagarse. Si no ocurre así, repita los pasos 2 y 3, inténtelo con cada código de su marca hasta encontrar uno que funcione.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 30 PROGRAMACIÓN DEL CONTROL DEL COMBO TV/VCR Si usted posee un combo TV/VCR, siga las siguientes instrucciones para utilizar el control con este dispositivo: Encienda su combo TV/VCR e introduzca una cinta de video.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 31 BÚSQUEDA DE SU CÓDIGO Si su dispositivo de entretenimiento doméstico no responde al Control Remoto Universal Atlas después de haber probado todos los códigos enumerados para su marca, o si su marca no aparece, intente la búsqueda de su código.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 32 COMPROBACIÓN DE LOS CÓDIGOS Si usted ha configurado el Control Remoto Universal Atlas siguiendo el procedimiento Búsqueda De Su Código (página anterior), es probable que deba averiguar qué código de cuatro dígitos funciona con su dispositivo.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 33 PROGRAMACIÓN DEL BLOQUEO DE ID El Control Remoto Universal Atlas está preprogramado y bloqueado de fábrica para funcionar con el convertidor de cable Scientific Atlanta. Sin embargo, si usted tiene otra marca o modelo de convertidor de cable y servicio interactivo con los que le gustaría utilizar su control remoto, deberá...
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 34 PROGRAMACIÓN DEL BLOQUEO DEL CONTROL DE CANAL Las funciones de control de canal del control remoto están por defecto bloqueadas en relación con el convertidor de cable. Las teclas afectadas* son 0 ~ 9, CH+, CH-, ENTER, y LAST. Esto evitará que usted cambie sin querer el canal de su TV o VCR.No obstante, puede desactivar esta función para permitir un acceso total a estas teclas en los modos TV y VCR.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 35 UTILIZACIÓN DEL BOTÓN DE ENCENDIDO PRINCIPAL El Control Remoto Universal Atlas está equipado con una función exclusiva que le permite encender o apagarde manera secuencial todos sus dispositivos de entretenimiento doméstico con un único botón.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 36 REASIGNACIÓN DE TECLAS DE DISPOSITIVOS El Control Remoto Universal Atlas puede configurarse para su uti- lización con un segundo dispositivo de TV o VCR,o cualquier otra combinación de cuatro dispositivos de entretenimiento doméstico. Por ejemplo,para utilizar el control con una TV,un convertidor de cable,y dos VCR,deberá...
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 37 UTILIZACIÓN DE MACROS Durante la programación, la tecla MACRO de su Control Remoto Universal Atlas puede ser configurada para realizar funciones repetitivas y lentas presionando una sola vez la tecla. Un macro puede ser utilizado para controlar el funcionamiento de un home theater (cine en casa), para configurar un canal o para otras múltiples funciones que usted quiera controlar con sólo...
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 38 UTILIZACIÓN DE MACROS (continuación) Eliminación De Macros: En el control remoto, presione y mantenga presionado SETUP hasta que el dispositivo seleccionado en último lugar parpadee dos veces.A continuación, suelte el botón SETUP. Presione 9 - 9 - 5.
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 39 Ahora bien, una vez haya seleccionado desbloquear el volumen de un dispositivo (p. ej., CBL), las teclas VOL+, VOL-, o MUTE controlarán el volumen del dispositivo sólo en el modo de éste. Desbloqueo De Todos Los Controles De Volumen (Desbloqueo De Volumen Total): NOTA: Estas instrucciones le permitirán configurar un control de volumen...
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 40 RESOLUCIÓN DE PROBLEMAS PROBLEMA: La tecla de modo no parpadea cuando presiona una tecla. SOLUCIÓN: Sustituya las baterías gastadas por dos (2) baterías alcalinas nuevas del tipo AA (consulte la página 27). PROBLEMA: La tecla de modo parpadea cuando presiona una tecla, pero el dispositivo de entretenimiento doméstico no...
Atlas Manual rev2 E/Sp 5/8/03 5:18 PM Page 48 MANUFACTURER’S CODES, continued (CÓDIGOS DEL FABRICANTE, continuación) Setup Codes For TV/VCR Combos (Códigos De Configuración Para Aparatos Combinados Televisor/Videograbadora): Broksonic 0002, 0479 (for TV use 0463) Citizen 0278 Colt 0072 Curtis Mathes 0035 (for TV use 0051) Daewoo 0278 (for TV use 0624)
