Page 1: User Manual

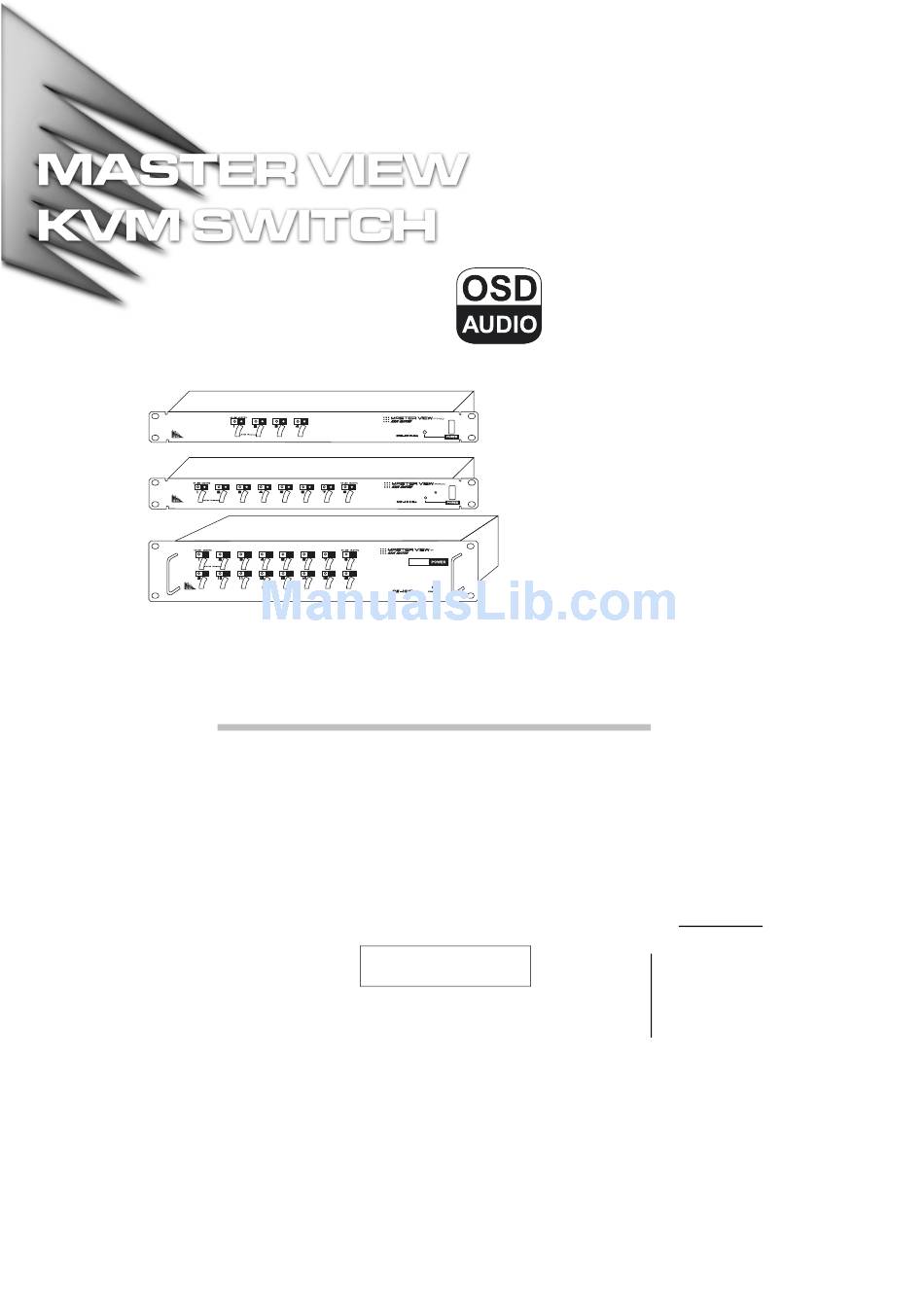

User Manual CS-1004 CS-1008 CS-1016 2001-06-9... - Page 2 Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that which the receiver is connected. Consult the dealer or an experienced radio/television technician for help CS-1004 / CS1008 / CS-1016 User Manual 2001-06-9...
- Page 3 Packing List The complete Master View package consists of: One Master View KVM Switch (CS-1004, CS-1008, or CS-1016) One Power Adapter One User Manual Check to make sure that the unit was not damaged in shipping. If you encounter a problem, contact your dealer.
-
Page 4: Table Of Contents
OSD Main Menu Headings ........ -
Page 5: Overview
The Master View provides two convenient methods to access any computer connected to the system: using the port selection switches located on the front panel and using the menu driven OSD (On Screen Display) feature with mouse or keyboard. A powerful Quick View Scan Mode feature allows you to auto scan and monitor the activities of all operating computers on the installation one by one. -
Page 6: Features
Those With Serial Mice Support Microsoft Intellimouse Pro, Logitech FirstMouse, MouseMan. SVGA, VGA and Multisync Monitor Support LED Display For Easy Status Monitoring Rack Mountable in 19" System Rack Audio Support Built In CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9... -
Page 7: Hardware Requirements
Either a 6-pin mini-DIN (PS/2 style) keyboard port with +5V DC on pin 4 and Ground on pin 3, or a 5-pin DIN (AT style) keyboard port with +5V DC on pin 5 and ground on pin 4. CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9... -
Page 8: Cables
Because of the wiring and the pin assignments, you cannot use a Serial-to-PS/2 adapter at the end that plugs into the Master View. Therefore attempting to use a standard cable extender with adapters at both ends will fail. CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9... -
Page 9: Introduction
Lights ORANGE to indicate that the Master View has been turned On and is receiving power. * The figure shows a CS-1016 model. The only difference between it and the other models is the number of Port Selection Switches. CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9... -
Page 10: Rear View
7. Microphone and Speaker Jacks Your microphone and speakers plug in here. * The figure shows a CS-1016 model. The only difference between it and the other models is the number of CPU Ports. CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9... -
Page 11: Installation
Note: Ignore the Chain In and Chain Out Ports at this time. They are only used when daisy chaining additional Master View units. Daisy Chaining is described in the next section. CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9... - Page 12 Note: You must turn on the power to the Master View before turning on the power to the computers. PS/2 VGA MONITOR PS/2 KEYBOARD MOUSE PORT PORT PORT PS/2 MOUSE PS/2 KEYBOARD VGA MONITOR DIP Switch Power Adapter CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9...
-
Page 13: Daisy Chaining
Chain port of the First Stage unit. The daisy chained Master Views that connect back to the First Stage unit are considered Second Stage units. As many as 8 (CS-1004), 16 (CS-1008) or 32 (CS-1016) computers can be controlled in a complete two stage installation. - Page 14 After all the Second Stage units have been powered on, then the First Stage unit must be powered on next. After the Second and First stage units have been powered on, the computers can be powered on. CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9...
-
Page 15: Operation
Note: If, after hot plugging (or at any other time), there is no response to mouse and/or keyboard input, simultaneously press and hold Port Select buttons 1 and 2 on the First Stage unit for 3 seconds to perform a Keyboard and Mouse reset. CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9... -
Page 16: Powering On/Off And Restarting
Note: It is not necessary to shut down and restart any of the stations or computers above the station you powered off. CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9... -
Page 17: Port Selection
Simply press the appropriate Port Selection Switch on the Master View’s front panel. After you press the switch, the Selected LED lights to indicate that the port is currently selected. The OSD (see p.14) automatically switches to highlight the computer that you have selected. -
Page 18: Osd Operation
- especially in large, daisy chained installations where it is difficult to keep track of which port a particular computer is attached to. All operations start from the OSD Main Menu. To pop up the Main Menu, tap the left Ctrl key OR the right Ctrl key twice. -
Page 19: Port Numbering
To dismiss the current OSD menu and return to the previous menu either click on the [X] located at the top righthand corner of the OSD menu (p.14), or click with the right mouse button. If you are at the highest menu level, this deactivates OSD. -
Page 20: Osd Main Menu Headings
Pressing a Function Key brings up a submenu that is used to configure and control the OSD. For example, you can: rapidly switch to any port; scan selected ports only; limit the list you wish to view; designate a port for Quick View scanning;... - Page 21 View Scan Mode. ! F3 LIST: This function lets you broaden or narrow the scope of which ports the OSD lists. The submenu choices and their meanings are given in the table below: Choice Meaning Lists the Port ID numbers and Names (if names have been specified - see F5), of all the ports on the installation.
- Page 22 All numeric characters: 0 - 9 +, - , / , : , . , and Space Case does not matter; OSD displays the Port Name in all capitals no matter how they were keyed in. d) When you have finished editing, press [Enter] to have the change take effect.
- Page 23 ! F6 SET: Pressing [F6] brings up the OSD configuration menu. To change a setting: a) Move the highlight bar to the choice you want, then press [Enter]. b) On the submenu that appears, move the highlight bar to the choice you want and press [Enter].
- Page 24 Setting Function Selects which Hotkey activates the OSD function: [Ctrl] [Ctrl] or [Scroll Lock] [Scroll Lock]. The default is the Ctrl OSD ACTIVATING key combination, but this may conflict with programs HOTKEY running on the computers, in which case, the Scroll Lock option should be used.
- Page 25 * If a password has been set, this setting requires you to supply it in order to gain access. See the OSD Security section, below, for details. CS-1004 / CS-1008 / CS-1016 User Manual...
- Page 26 Broadcast Mode is used to perform the same operation on all active computers at the same time. This function is particularly useful for installing/updating software, or shutting the entire installation down. To invoke Broadcast Mode, activate the OSD (if it is not already active) and do the following: 1. Press [F7]...
-
Page 27: Factory Default Settings
In order to prevent unauthorized access to the computers, the OSD provides a password security feature. If a password has been set, the OSD will request that the user specify it before allowing entry. To set a password: 1. Press [F6] to bring up the setup configuration menu. -
Page 28: Appendix
372 - 379 505 - 512 113 - 120 246 - 253 379 - 386 120 - 127 253 - 260 386 - 393 127 - 134 260 - 267 393 - 400 CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9... -
Page 29: Station Numbering Table
Station Number of each daisy chained unit, as indicated in the table below; (0 = On; 1 = Off): Station SW1 SW2 SW3 SW4 SW5 Station SW1 SW2 SW3 SW4 SW5 CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9... -
Page 30: Troubleshooting
2. Unplug the mouse connector from the Console Mouse Port, then plug it back in. Port LEDs 1-4 Power On Self Test See the information on p.8 of this manual flash repeatedly problem CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9... -
Page 31: Specifications
Storage Temperature -20 - 60 Humidity 0 - 80% RH Housing Metal 2650g 2850g 3750 g Weight Dimensions (L x W x H) mm 483x154x89( 2U) 483 x 154 x 44.5 ( 1U) CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9... -
Page 32: Limited Warranty
The direct vendor also reserves the right to revise or update the device or documentation without obligation to notify any individual or entity of such revisions, or update. For further inquires please contact your direct vendor. CS-1004 / CS-1008 / CS-1016 User Manual 2001-06-9...
