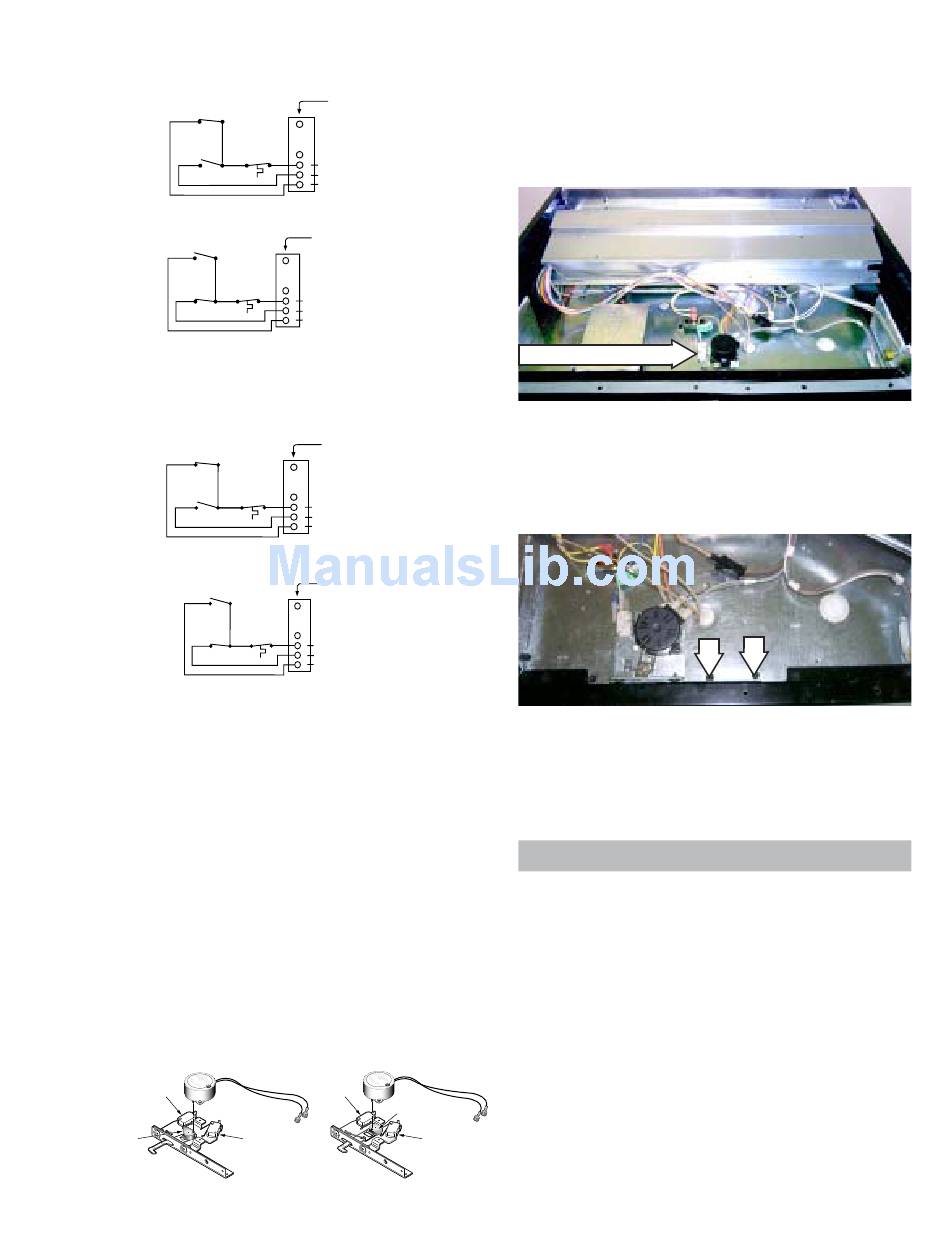

Motorized Door Lock Circuit Information - GE Profile J2S968 SERIES Technical Service Manual

JGS968 & J2S968
UNLOCKED
LOCK SW. CIRCUIT
LOCK SW. #1
LOCK
THERMAL SWITCH
SW. #2
LOCKED
LOCK SW. CIRCUIT
LOCK SW. #2
LOCK
THERMAL SWITCH
SW. #1
JGSP48
UNLOCKED
LOCK SW. CIRCUIT
LOCK SW. #1
LOCK
THERMAL SWITCH
SW. #2
LOCKED
LOCK SW. CIRCUIT
LOCK SW. #2
LOCK
SW. #1 THERMAL SWITCH
The control display will flash on and off in the
display while the lock motor is in motion. When
the door is locked, the words LOCKED DOOR
remain lit in the display.
The cam on the motor performs two functions:
• Positions the lock hook in the door to prevent
opening during the CLEAN operation.
• Operates the lock switches which tell the
control if the door is unlocked or locked and
ready for CLEAN operation.
Note: When the door is either being locked or
unlocked, both lock switches will be in the open
position.
UNLOCKED
UNLOCK SW.
N.O. CONTACT
CLOSED
CAM IN
LOCK SW.
UNLOCK POSITION
N.O. CONTACT
OPEN
SENSOR AND LOCK
SWITCH CONNECTORS
8
6
5 DOOR LATCH OUTPUT PIN 5, -25V DC
4 DOOR LATCHED INPUT PIN
DOOR UNLATCHED INPUT PIN
3
SENSOR AND LOCK
SWITCH CONNECTORS
8
6
5 DOOR LATCH OUTPUT PIN 5, -25V DC
4 DOOR LATCHED INPUT PIN
DOOR UNLATCHED INPUT PIN
3
SENSOR AND LOCK
SWITCH CONNECTORS
7
5
DOOR LATCH OUTPUT PIN 5, -25VDC
3
AT ALL TIMES MEASURED TO GROUND
2 DOOR LATCHED INPUT PIN
DOOR UNLATCHED INPUT PIN
1
SENSOR AND LOCK
SWITCH CONNECTORS
7
5
DOOR LATCH OUTPUT PIN 5, -25VDC
3 AT ALL TIMES MEASURED TO GROUND
2 DOOR LATCHED INPUT PIN
DOOR UNLATCHED INPUT PIN
1
LOCKED
UNLOCK SW.
N.O. CONTACT
OPEN
CAM IN
LOCK POSITION
LOCK SW.
N.O. CONTACT
CLOSED
To remove the door latch assembly:
1. Remove the maintop burner assembly (see
Maintop Burner Assembly).
2. Remove the upper and lower heat shield (see
Upper and Lower Heat Shield).
Door Latch Assembly
3. Remove the 2 hex-head screws that hold the
door latch assembly in place. Pull the
assembly out to access the wiring harness
connectors.
4. Note the placement of the wiring, then
disconnect all wires to the door latch
assembly.

Motorized Door Lock Circuit Information

The lock motor circuits and the lock switch circuit
control the locking and unlocking of the door.
The lock motor circuit applies voltage (120 VAC)
to the lock motor. This circuit is from L, through
the door switch, lock relay, and lock motor to
neutral.
For this circuit to be complete, the lock relay must
be energized by the ERC and the door must be
closed. An open oven door results in LOCK
DOOR flashing in the display after the control has
been programmed for clean and START has
been depressed.
– 47 –
(Continued next page)
