Wiring The Fan - Hunter Ceiling Fans Installation And Operation Manual

BE CERTAIN THAT THE ELECTRICITY IS TURNED OFF AT THE
NOTE: All wiring must be in accordance with
national and local electrical codes and ANSI/
NFPA 70-1999. If you are unfamiliar with
wiring, use a qualified electrician.
Wall switches are not included. Select an
acceptable general-use switch in accordance with
national and local electrical codes.
1. Before attempting installation, make sure the
power is still off.
2. To connect the wires, hold the bare metal
leads together and place a wire connector over
them, then twist clockwise until tight. For all
these connections use the wire connectors
provided.
3. Connect the bare or green ground wire
(grounding) from the ceiling to the side of the
hanger bracket assembly.
4. Connect the white wire (grounded) from the
ceiling to the white wire (grounded) from the
fan.
5. Connect the remaining wires as follows:

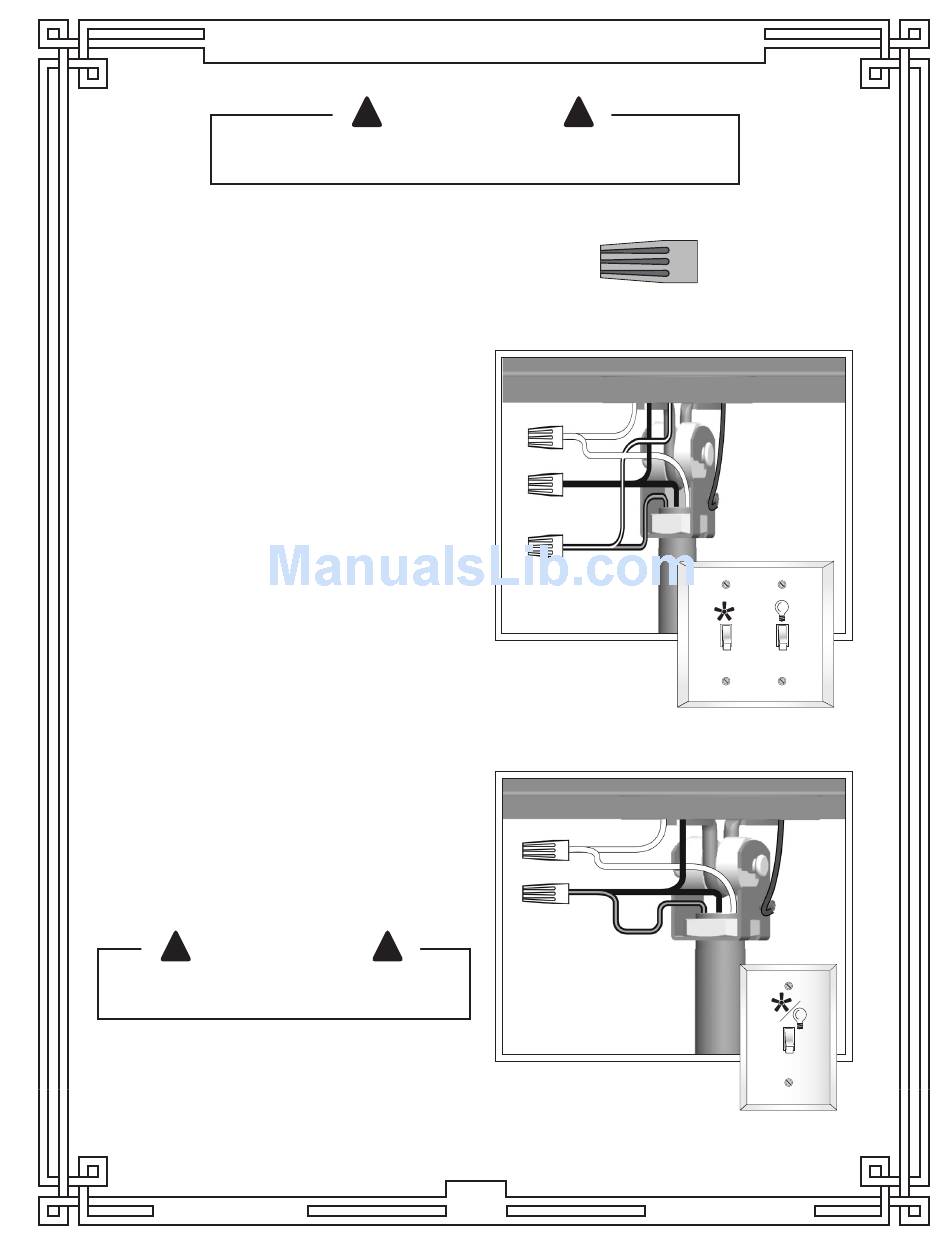

Dual Switch Wiring (see Fig. 8):
• The black wire (ungrounded) from the ceiling
to the black wire (ungrounded) from the fan.
• The blue wire (ungrounded) from the fan to
the wire (ungrounded) from the wall switch.
Single Switch Wiring (see Fig. 9):
• The black wire (ungrounded) from the ceiling
to the black (ungrounded) and the blue wire
(ungrounded) from the fan.
! CAUTION
NO BARE WIRES OR WIRE STRANDS SHOULD
BE VISIBLE AFTER MAKING CONNECTIONS.
6. Turn the splices upward and push them
carefully into the outlet box.
7. Spread the wires apart, with the grounded
wires on one side of the outlet box and the
ungrounded wires on the other side of the
outlet box.
Hunter Fan Company

Wiring the Fan

! CAUTION
MAIN PANEL BEFORE STARTING THIS SECTION.
!
!
Wire Connector
Fig. 8
Fig. 9
9
41532-01 • 10/14/13
