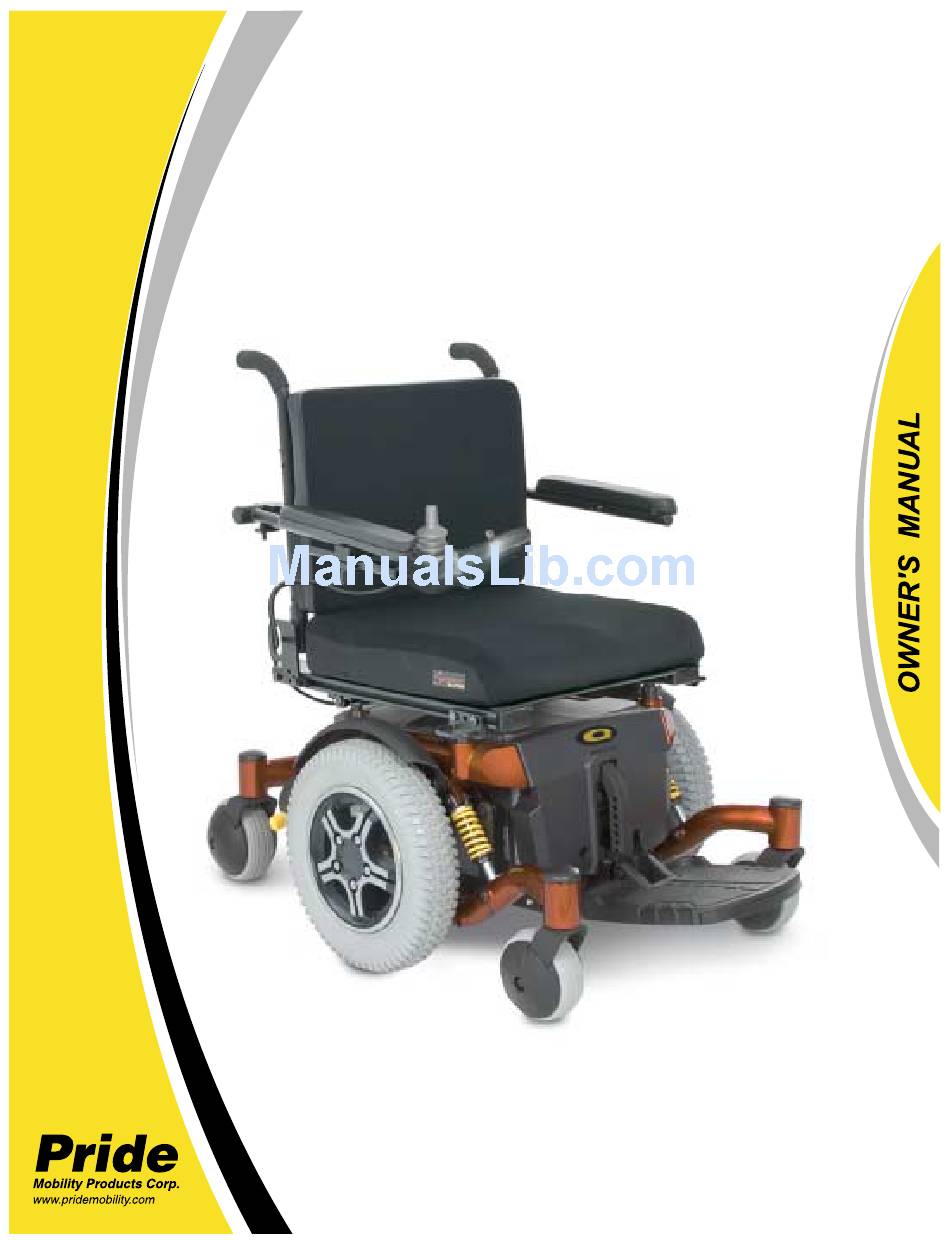

- Page 1 QUANTUM 6 0 0 0 Z S E R I E S INNOVATIVE REHAB SOLUTIONS Including Models: Quantum 6000Z 3S, Quantum 6000Z 3SP, Quantum 6000Z 3MP, Quantum 6000Z 4S, Quantum 6000Z 4SP, and Quantum 6000Z 4MP 1-800-800-8586 (US) 1-888-570-1113 (Canada)
- Page 2 The latest/current version of this manual is available on our website. 088 609 661 Copyright © 2007 Pride Mobility Products Corp. INFMANU3447/Rev A/May 2007...
-
Page 3: Table Of Contents
C O N T E N T S INTRODUCTION..........................4 SAFETY ..............................6 III. YOUR POWER CHAIR ........................18 IV. ASSEMBLY............................24 COMFORT ADJUSTMENTS......................27 VI. BATTERIES AND CHARGING ....................33 VII. CARE AND MAINTENANCE ......................36 VIII. WARRANTY............................42 Quantum 6000Z Series www.quantumrehab.com... -
Page 4: Introduction
I N T R O D U C T I O N SAFETY WELCOME to Quantum Rehab, a division of Pride Mobility Products Corporation (Pride). The power chair you have purchased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities. -
Page 5: I. Introduction
I N T R O D U C T I O N PRIDE OWNERS CLUB As an owner of a Pride product, you are encouraged to enroll in the Pride Owners Club. Complete and return your enclosed product registration card or visit Pride’s web site at www.pridemobility.com. From our home page, select “Owners Club”... - Page 6 I I . S A F E T Y PRODUCT SAFETY SYMBOLS The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions. It is very important for you to read and understand them completely. Read and follow the information in the owner’s manual.
-
Page 7: Ii. Safety
I I . S A F E T Y Do not lift the mobility vehicle while seated in it. Do not lift the mobility vehicle while seated in it. Do not connect an extension cord to the AC/DC converter or the battery charger. Removal of grounding prong can create electrical hazard. - Page 8 I I . S A F E T Y EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m. Explosive conditions exist! Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions.
-
Page 9: Safety
I I . S A F E T Y Battery charger for indoor use only. Disposal and recycling - Contact your Quantum Rehab Specialist for information on proper disposal and recycling of your Pride product and its packaging. Disposal and recycling - Contact your Quantum Rehab Specialist for information on proper disposal and recycling of your Pride product and its packaging. -
Page 10: General Guidelines
I I . S A F E T Y GENERAL GUIDELINES MANDATORY! Do not operate your new power chair for the first time without completely reading and understanding this owner’s manual. Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an extensive variety of products to best fit the individual needs of the power chair user. - Page 11 I I . S A F E T Y Weight Limitations Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the weight capacity voids your warranty.
- Page 12 I I . S A F E T Y WARNING! Even though your power chair is capable of climbing slopes greater than those illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or any other specifications presented in this manual. Doing so could cause instability in your power chair. In compliance with the Americans with Disabilities Act of 1990, all handicap public access ramps are required to have a maximum slope of 5°...
- Page 13 I I . S A F E T Y Public Streets and Roadways WARNING! You should not operate your power chair on public streets and roadways. Be aware that it may be difficult for traffic to see you when you are seated on your power chair. Obey all local pedestrian traffic rules.
- Page 14 I I . S A F E T Y Stairs and Escalators Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator. WARNING! Never use your power chair to negotiate steps or escalators. Doors ! Determine if the door opens toward or away from you.
- Page 15 I I . S A F E T Y Batteries In addition to following the warnings below, be sure to comply with all other battery handling information. For more information about your power chair’s batteries, see VI. “Batteries and Charging.” WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.
-
Page 16: Iii. "Your Power Chair
I I . S A F E T Y Transfers Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant or health- care professional present while learning to properly trans- fer yourself. To eliminate the possibility of injury, Pride recommends that you or a trained attendant perform the following tasks be- fore attempting a transfer:... - Page 17 I I . S A F E T Y WARNING! Pride strongly recommends that you do not smoke cigarettes while seated in your power chair, although the power chair has passed the necessary testing requirements for cigarette smoking. You must adhere to the following safety guidelines if you decide to smoke cigarettes while seated in your power chair.
- Page 18 I I I . Y O U R P O W E R C H A I R THE QUANTUM 6000Z SERIES The Quantum 6000Z Series has two main assemblies: the seat assembly and the power base assembly. See figure 5. Typically, the seat assembly includes the armrests, seatback, and seat base.
- Page 19 I I I . Y O U R P O W E R C H A I R QUANTUM 6000Z SERIES SPECIFICATIONS Suspension: Active-Trac ATX with integrated rear dual-strut suspension and articulating caster beam Drive Wheels: 14 in. (35.56 cm), pneumatic (14 in. (35.56 cm) solid optional) Caster Wheels: 6 in.
- Page 20 I I I . Y O U R P O W E R C H A I R REAR SEAT MOUNT CONNECTORS FRONT SEAT MOUNT CONNECTORS REAR SHROUD REAR SHROUD FASTENER (FASTENER ON OPPOSITE SIDE NOT SHOWN) FRONT COVER MANUAL FREEWHEEL LEVER Figure 6.
- Page 21 I I I . Y O U R P O W E R C H A I R Motor Connectors: This is where the controller connects to the motors. Battery Connector: This is where the controller connects to the batteries. Controller Power Module: This enables the controller to communicate with the batteries and the motors.
- Page 22 I I I . Y O U R P O W E R C H A I R Dual Manual Freewheel Levers For your convenience, your power chair is equipped with dual manual freewheel levers. The levers are located on each motor, and allow you to disengage the drive motors and maneuver the chair manually.
- Page 23 I V . A S S E M B L Y INITIAL ASSEMBLY Your power chair may require some assembly either before initial use or after transportation. It may also require disassembly to make some comfort adjustments. Figure 10 details those parts of the power chair that are designed to be disassembled and assembled by an end user or by a qualified caregiver before using the product or making comfort adjustments.
- Page 24 I V . A S S E M B L Y Seat Installation SEAT It may be necessary to install the seat either prior to initial LATCH SAFETY operation or after transporting your power chair. Contour seats are attached to the power base with the Universal Mounting System (UMS).
-
Page 25: Iv. Assembly
I V . A S S E M B L Y Power Seat Option Installation Your power chair may be equipped with the power seat op- tion. While the seat itself may be any one of the styles offered for this model, the way the seat base attaches to the power base is different. -
Page 26: Comfort Adjustments
C O M F O R T A D J U S T M E N T S COMFORT ADJUSTMENTS After becoming familiar with your power chair’s operation, you may find the need to make some adjustments to increase your comfort, such as seat height and angle, armrest width, armrest angle and height, foot platform height, depth, and angle, and controller position. - Page 27 C O M F O R T A D J U S T M E N T S 10. Reinstall the retaining clips. 11. Reinstall the seat. 12. Reconnect the controller to the power base. 13. Reinstall the rear shroud and tighten the fasteners. Seat Position You can move the seat forward or rearward by changing the extrusion mounting position.
- Page 28 C O M F O R T A D J U S T M E N T S Armrest Width Adjustment You can change each armrest’s width independently of the other. NOTE: Changing the armrest width may increase the overall width of your power chair. To change the armrest width: SETSCREW 1.
- Page 29 C O M F O R T A D J U S T M E N T S To change the controller position: 1. Turn off the power to the controller. 2. Loosen the rear shroud fasteners and remove the rear shroud.
- Page 30 C O M F O R T A D J U S T M E N T S To clamp the quick release fastener: 1. Make sure the lever is in the open position. 2. Turn the nut clockwise until it is snug. 3.
- Page 31 C O M F O R T A D J U S T M E N T S To adjust the ELR length: 1. Remove the two adjustment screws from the side of each leg rest extension. 2. Slide the leg rest up or down to the desired length. 3.
-
Page 32: Batteries And Charging
V I . B A T T E R I E S A N D C H A R G I N G BATTERIES AND CHARGING Your power chair uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free. Since they are sealed, there is no need to check the electrolyte (fluid) level. - Page 33 V I . B A T T E R I E S A N D C H A R G I N G To charge the batteries using the off-board charger: 1. Position the front of your power chair next to a standard electrical outlet. 2.
- Page 34 V I . B A T T E R I E S A N D C H A R G I N G ! Daily Use If you use your power chair on a daily basis, charge the batteries as soon as you are finished using your power chair. Your power chair will be ready each morning to give you a full day’s service.
- Page 35 V I . B A T T E R I E S A N D C H A R G I N G How can I ensure maximum battery life? A fully charged deep-cycle battery will provide reliable performance and extended battery life. Keep your power chair’s batteries fully charged whenever possible.
-
Page 36: Care And Maintenance
V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Quantum 6000Z Series is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. - Page 37 V I I . C A R E A N D M A I N T E N A N C E ! The body shroud has been sprayed with a clear sealant coating. You can apply a light coat of car wax to help it retain its high-gloss appearance.
- Page 38 V I I . C A R E A N D M A I N T E N A N C E Storage Your power chair should be stored in a dry place, free from temperature extremes. When storing, disconnect the batteries from the power chair.
- Page 39 V I I . C A R E A N D M A I N T E N A N C E TIRE TUBE FRONT RIM HALF SCREWS WHEEL HUB REAR RIM HALF LUG NUTS Figure 27. Quantum 6000Z Series Drive Wheel Figure 28.
- Page 40 V I I . C A R E A N D M A I N T E N A N C E BATTERY WIRING DIAGRAM FRONT COVER REAR SHROUD REAR SHROUD FASTENER (OPPOSITE SIDE NOT SHOWN) RELEASE HANDLES REAR BATTERY FRONT BATTERY Figure 29.
- Page 41 V I I . C A R E A N D M A I N T E N A N C E To replace the batteries: 1. Turn off the power to the controller. 2. Make sure that the power chair is in drive mode. See III “Your Power Chair.” 3.
- Page 42 V I I I . W A R R A N T Y LIFETIME LIMITED WARRANTY For the lifetime of your power chair from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship: Structural frame components, including: ! Main Frame...
-
Page 43: Viii. Warranty
Circumstances beyond the control of Pride Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products Corporation Repairs and/or modifications made to any part without specific consent from Pride... - Page 44 N O T E S www.quantumrehab.com Quantum 6000Z Series...
- Page 45 N O T E S Quantum 6000Z Series www.quantumrehab.com...
- Page 46 N O T E S www.quantumrehab.com Quantum 6000Z Series...
- Page 47 Quality Control - Quantum 6000Z Series Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected Inspector *INFMANU3447* Product Serial #...
