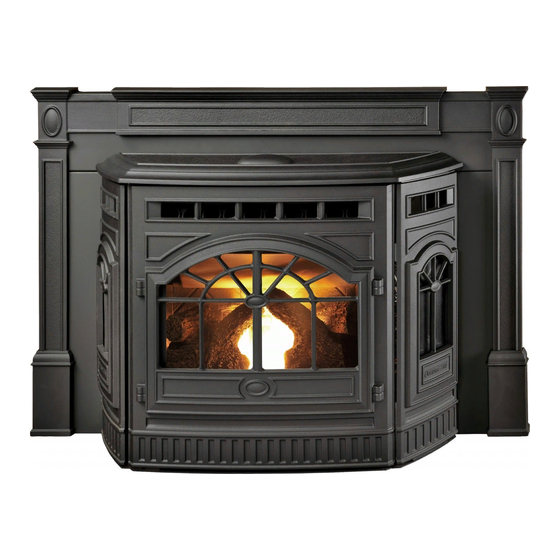

Quadra-fire castile pellet insert
Hide thumbs
Also See for CASTILEI-MBK:
- Owner's manual (56 pages) ,
- Manual (36 pages) ,
- Installation manual (32 pages)
Table of Contents
Advertisement
Quick Links
Owner's Manual
Installation and Operation
Model:
CASTILEI-MBK
CASTILEI-PMH
CASTILEI-CSB
CASTILEI-CWL
• Important operating and
maintenance instruc-
tions included.
Please read this entire manual
before installation and use of this
pellet fuel-burning room heater.
Failure to follow these instructions
could result in property damage,
bodily injury or even death.
•
Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• Do not overfi re - If any external part starts to
glow, you are overfi ring. Reduce feed rate.
Overfi ring will void your warranty.
• Comply with all minimum clearances to com-
bustibles as specifi ed. Failure to comply may
cause house fi re.
CAUTION
Tested and approved for wood pellets and shelled
fi eld corn fuel only. Burning of any other type of fuel
voids your warranty.
CAUTION
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and national
codes and regulations.
• Contact local building or fi re offi cials about restrictions and
installation inspection requirements in your area.
www.quadrafi re.com
CASTILE PELLET INSERT
SAVE THESE INSTRUCTIONS
Read, understand and
•
follow these instruc-
tions for safe installa-
tion and operation.
WARNING
NOTICE
Leave this manual with
•
party responsible for use
and operation.
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
•
Keep children away
•
CAREFULLY SUPERVISE children in same room as
fi replace.
•
Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
fl ammable materials.
•
Keep clothing, furniture, draperies and other fl ammable
materials away.
To obtain a French translation of this manual, please
contact your dealer or visit www.quadrafi re.com
Pour obtenir une traduction française de ce manuel,
s'il vous plaît contacter votre revendeur ou visitez
www.quadrafi re.com
7022-122D
Tested and
O-T L
Listed by
C
US
OMNI-Test Laboratories, Inc.
WARNING
HOT SURFACES!
Glass and other surfaces are
hot during operation AND
cool down.
NOTE
May 12, 2014
Portland
Oregon USA
