EverFocus Ecor 4 Quick Reference Manual

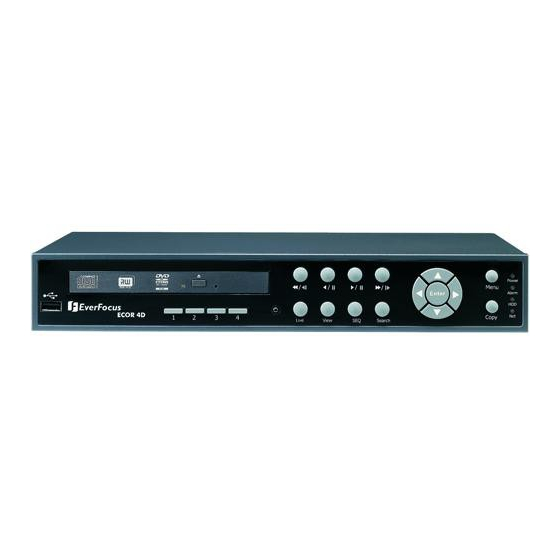

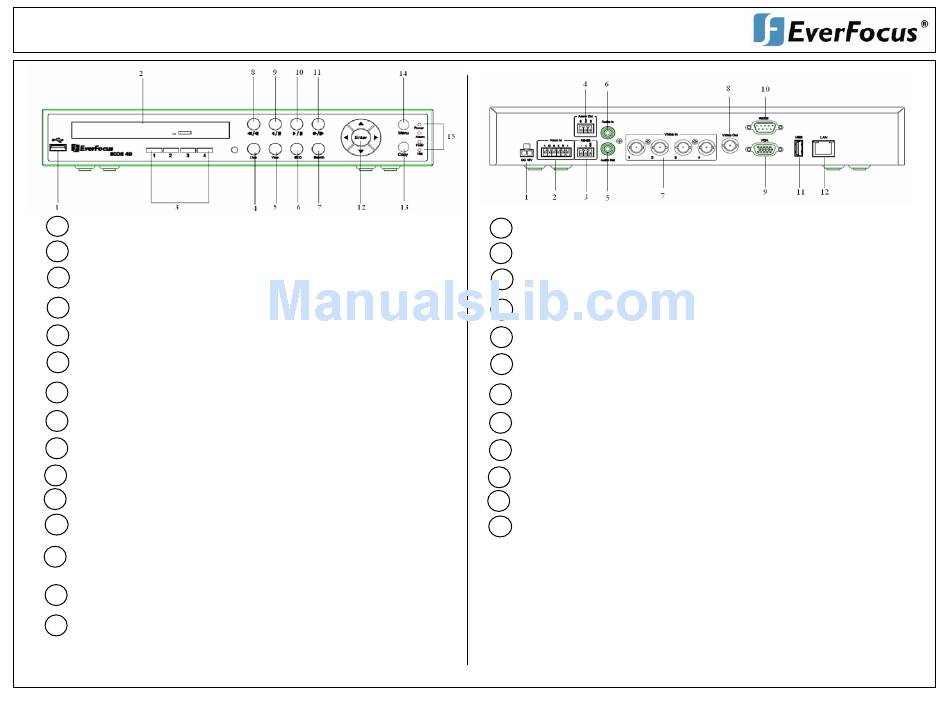

ECOR 4/8 Quick Reference Operation Guide
USB Port: Archiving data onto USB Flash Memory
1
DVD Drive: Archiving data onto a DVD
2
Channel keys: Video channel key for selecting a single camera to be
3
displayed in full screen
Live: Press this key to show live view. Press to exit from playback mode.
4
View: Multiscreen display switching; repeated actuation switches between the
5
different views.
SEQ: Switch sequence mode on / off (automatic switching)
6
Search: Starts playback search menu
7
Fast Reverse: Playback or step reverse playback depending on playback mode
8
Normal Reverse: Reverse playback or pause
9
10 Normal Forward: Forward playback or pause
Fast Forward: Playback or step forward playback depending on playback mode
11
Enter/ Arrow buttons: If you do not use a mouse, you can use these keys to
12
change the Menu settings.
Copy: Starts image export menu. In playback mode, the current playback
13
position is stored as start time for image export.
Menu: Press this key to enter/exit MAIN SETUP MENU.
14
15
System LED: LED displays for Power, Alarm, HDD and Net active.
1 Power: Plug the DC 12V power source into the power socket.
Alarm In: Connect up to 4 / 8 alarm inputs, selectable between dry contact or
2
TTL/CMOS signal polarity.
3
RS485: Terminal Connector for RS485 control.
4 Alarm Out: N.C or N.O type alarm signal out.
Audio Output: Connect a speaker or other audio listening devices to the audio
5
output connection on the back of the digital video recorder.
6 Audio Input: Connect a microphone or camera audio output to the audio input
connection.
7 Video In: Connect camera's video output or other composite video source to the
video input connection.
8
Video Out: Connect a CCTV monitor to the video output connection.
9 VGA: Connect a VGA monitor to the VGA output connection.
RS232: For DVR serial command control
10
USB: Port allows you to connect the mouse.
11
LAN: RJ-45 network
12
connection
