Installation
The installation procedure in Table 2-1 provides the cable connections for up to three WANs, two
types of connections for your ethernet, a short adapter cable to connect to your PC for software
loading, and finally your power connection. If additional RAM needs to be added, perform the
procedures in Table 2-2. Figure 2-2 shows the ProxyServer's external connections.
Step
Procedure
1
If additional RAM needs to be added, perform the procedures in Table 2-2.
WAN Connections
2
Connect the external power supply to the ProxyServer and a live AC outlet. The POWER
connector on the back panel of the ProxyServer is a 6-pin circular DIN connector.
3
Connect a PC running Windows® to the COMMAND connector on the back panel of the
ProxyServer. Use the short RJ45 to DB25 cable provided with your ProxyServer to connect
directly to your PC, or to the serial cable from your PC.
4
Configure the ProxyServer for your application using the procedures in Chapter 3.
5
Connect a network cable to either the ETHERNET 10BASE-T (RJ45) or a coax cable to the
10BASE-2 (BNC) connector on the back panel of the ProxyServer. Connect the other end of the
cable to the network.
6
Connect an RJ11 phone cable for the first link connection to the LINK 1 connector on the back
panel of the ProxyServer. Connect the other end of the cable to the line jack. Connect the second
RJ11 phone cable to the LINK 2 connector on the ProxyServer and the other end to the second
line jack. Connect the third RJ11 phone cable to the LINK 3 connector and to the third line jack.
MTPSR3-200
Table 2-1. Installation Procedure
LINK3
LINK2
LINK1
ETHERNET
10BASET
Ethernet Connection

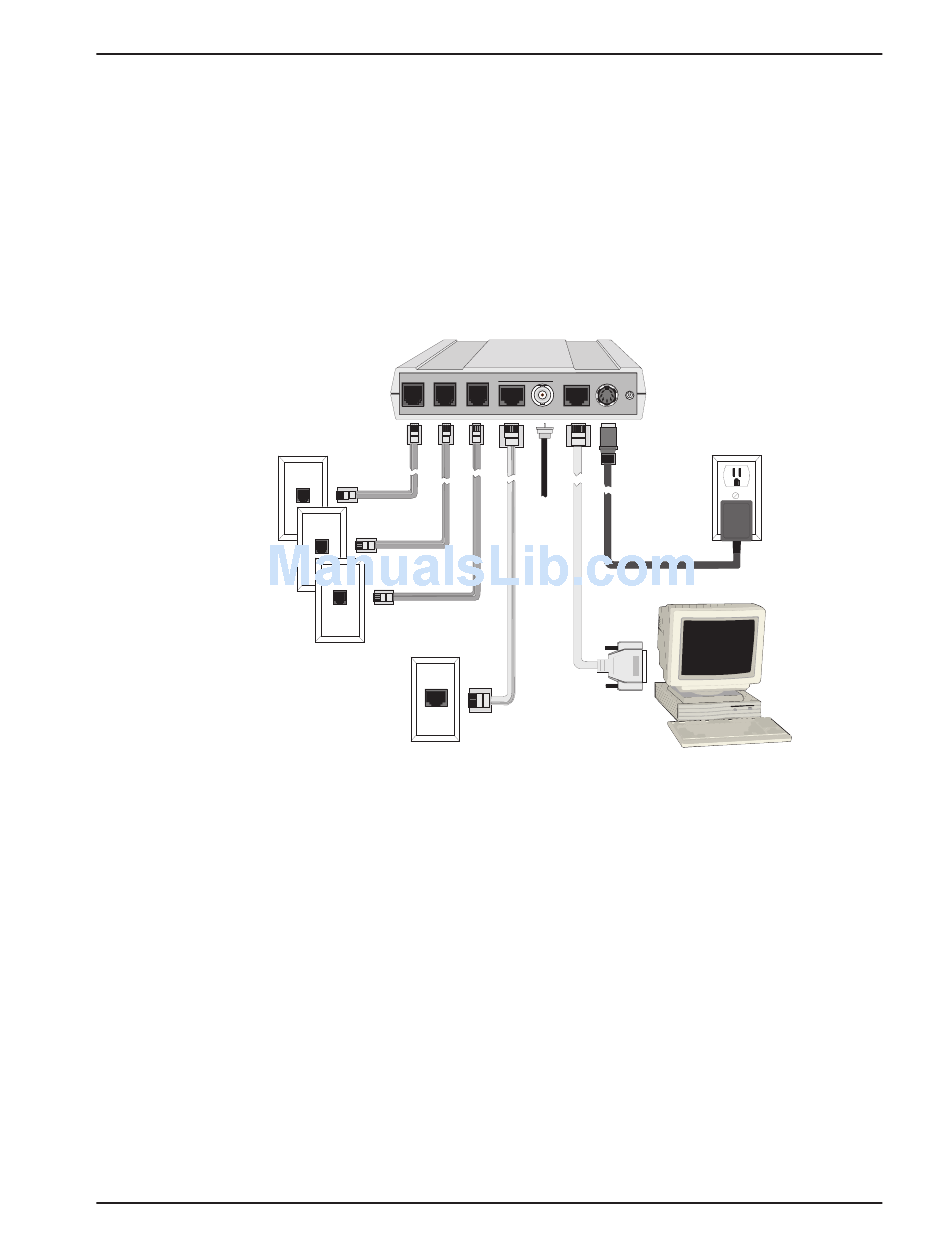

Figure 2-2. Back Panel Connections
Chapter 2 - Installation
COMMAND
POWER
ON
OFF
10BASE2
Power Connection
PC Connection
17
