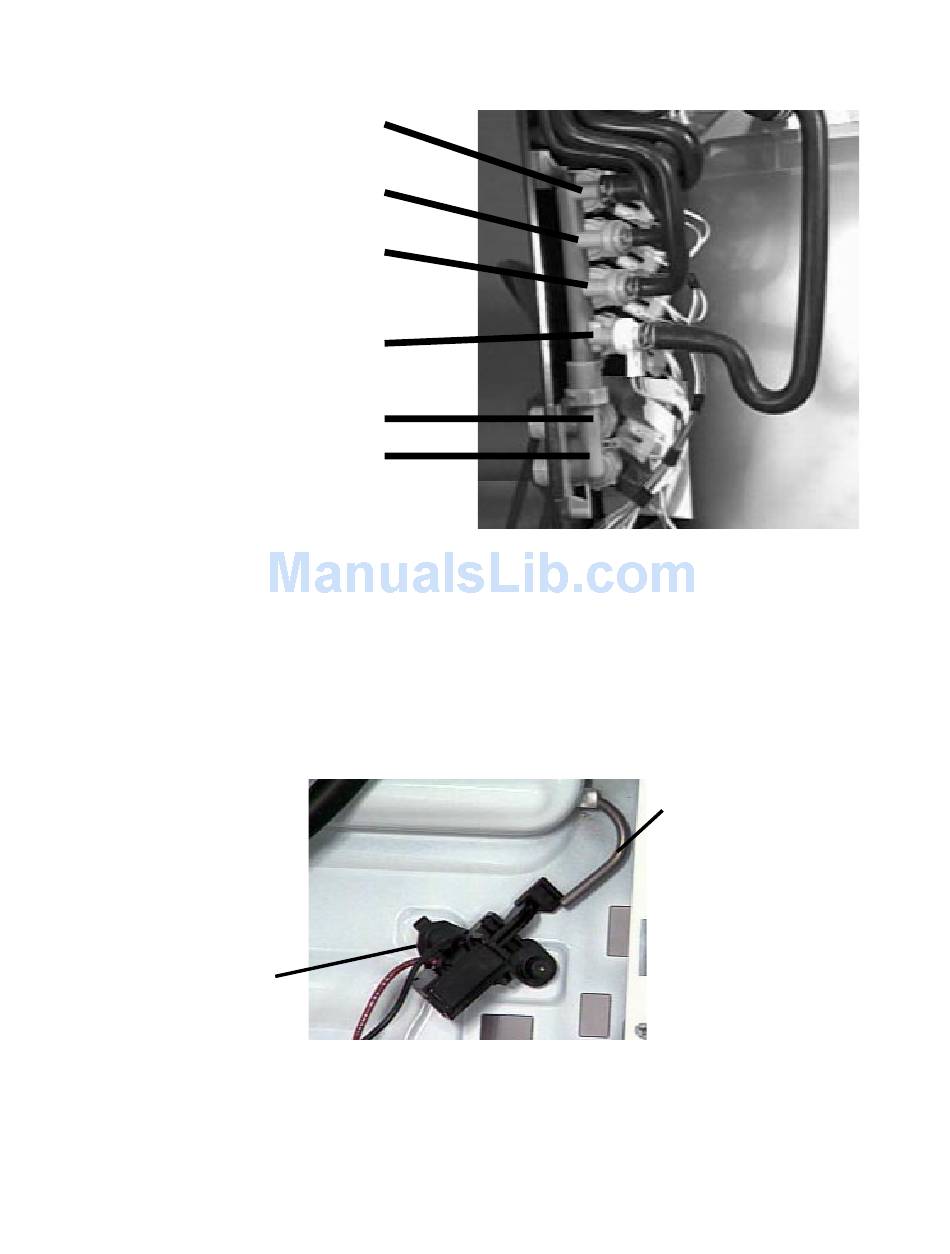

INLET AND DISPENSER VALVE ASSEMBLY

Bleach Dispenser Outlet Valve
(with Back-Flow Restrictor)
Fabric Softener Dispenser
Outlet Valve
Detergent Dispenser
Outlet Valve
Fresh Water Outlet Valve
(with Back-Flow Restrictor
and Thermistor)
Cold Water Inlet Valve
Hot Water Inlet Valve
A new inlet valve assembly is used on this model. It is made up of the hot and cold inlet valves and the
dispenser valves that operate the dispensers as well as the fresh water fill. Also included is the
thermistor used with the AccuWash option to control incoming water temperature.

HIDDEN LID SWITCH

Hinge
Lid
Switch
A hidden lid switch is used on the Catalyst Clean model. It is located under the right rear corner of the
washer top and is actuated by the lid hinge.
