Summary of Contents for Ashly ne800

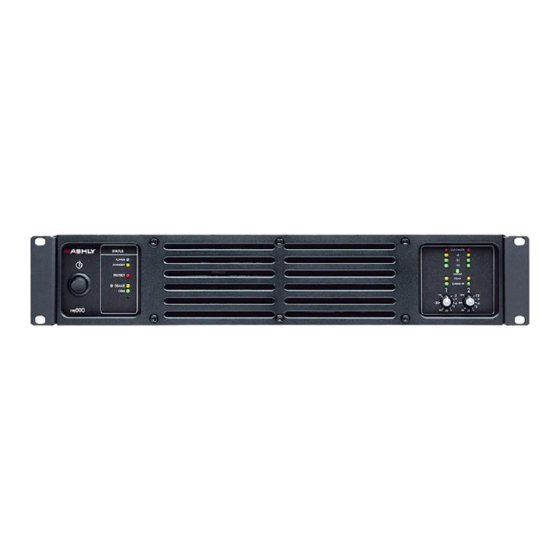

- Page 1 Network Enabled Two Channel Power Amplifiers Operating Manual ASHLY AUDIO INC. 847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010 Toll-Free: (800) 828-6308 Fax: (585) 872-0739 ashly.com...
-
Page 2: Table Of Contents
Operating Manual - NE Two Channel Power Amplifiers Important Safety Instructions Consignes de sécurité à lire attentivement The lightning flash with arrowhead symbol, within an equilateral triangle, Le symbole de la flèche dans un triangle équilateral symbolisant la foudre is intended to alert the user to the presence of uninsulated "dangerous est prévu pour sensibiliser l’utilisateur à... -
Page 3: Introduction
Ashly’s exclusive Five Year, Worry Free Warranty remains one of the most liberal policies available on any commercial grade product. The warranty covers every product with the Ashly brand name, and is offered at no extra cost to you, our customer. - Page 4 48kHz & 96kHz data rates are supported. 3) Network Digital Audio - Ashly currently supports CobraNet and Dante network audio options that can be ordered ®...
-
Page 5: Physical Description
Operating Manual - NE Two Channel Power Amplifiers Protection This amplifier come standard with several protection circuits: Over Current Protection - Is controlled in the output stage. Thermal Protection - When the internal temperature is below 40°C the fan runs at its slowest speed. Above 40°C the speed is increased until it reaches its maximum value. -
Page 6: Amplifier Rear Panel
10. Remote Standby - Connect these two contact closure pins to remotely place the amp in standby. 11. Remote Level Control - These pins can be wired to remote potentiometers such as the Ashly WR-1 for level control of individual channels. -
Page 7: Remote Amplifier Control
US (UK) electrical wall box. Each volume control can be wired to an amplifier’s “Remote Level Control” connector. 2) neWR-5 Programmable Button Controller - The neWR-5 is an Ethernet based programmable button controller for networked Ashly products that have Protea DSP. The neWR-5 mounts in a standard US electrical wall box. Using Protea software, buttons can be programmed for preset recall/scroll, mute, zone source selection, individual channel and matrix point level control. -
Page 8: Software
- if two graphic equalizer blocks are “linked”, any change made to a control within either of the equalizers will result in an identical change to the other. Blocks may be linked within one Ashly device, or across multiple networked devices. Linking of multiple devices is managed through LINK GROUPS. - Page 9 Operating Manual - NE Two Channel Power Amplifiers 3) Polarity button - This inverts the phase of the input channel. 4) Offset link group - Up to 16 groups are available for the purpose of linking similar function parameters across multiple channels. In addition to the control surface secondary level control (not the main fader), most DSP functions have a link group check box in their work window...
-
Page 10: Specifications
Operating Manual - NE Two Channel Power Amplifiers (DSP control tab continued) Protea Two Channel Amplifier DSP Control Surface (DSP option must be installed) 7) Pluggable Output DSP Tools - Output DSP tools are the same as those available to the inputs. 8) Output Mute Button - Mutes the output. - Page 11 Operating Manual - NE Two Channel Power Amplifiers Damping Factor (8 ohm load, <1kHz) .........>250 Input Impedance.
-
Page 12: Warranty Information
Any implied warranties which may arise under the operation of state law shall be effective only for FIVE years from the original date of purchase of the product. ASHLY AUDIO, INC. shall be obligated to only correct defects in the product itself. ASHLY AUDIO, INC. is not liable for any damage or injury which may result from or be incidental to or a consequence of such defect. Some states do not allow limita- tions on how long an implied warranty lasts, or the exclusion, or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
