Summary of Contents for Ashly ne4250
- Page 1 8250 ne 4250.25 ne 8250.25 ne 4250.70 ne 8250.70 ne 4250.10 ne 8250.10 Network Enabled Multi Channel Power Amplifiers Operating Manual ASHLY AUDIO INC. 847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010 Toll-Free: (800) 828-6308 Fax: (585) 872-0739 www.ashly.com...
-
Page 2: Important Safety Instructions
Operating Manual - NE Multi Channel Power Amplifier Important Safety Instructions Consignes de sécurité à lire atten- The lightning flash with arrowhead symbol, within an equilateral triangle, Le symbole de la flèche dans un triangle équilateral symbolisant la foudre is intended to alert the user to the presence of uninsulated "dangerous est prévu pour sensibiliser l’utilisateur à... -
Page 3: Table Of Contents
Operating Manual - NE Multi Channel Power Amplifier Table Of Contents 1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2 UNPACKING . -
Page 4: Introduction
Ashly’s exclusive Five Year, Worry- Free Warranty remains one of the most liberal policies available on any commercial- grade product. The warranty covers every product with the Ashly brand name, and is offered at no extra cost to you, our customer. -
Page 5: Overview
Protea software, remote standby for power up, contact closure preset recall, remote control through micropocessor based devices such as the Ashly WR-5, RD-8C, or other custom control, and DC remote level control using an Ashly WR-1. -
Page 6: Physical Description

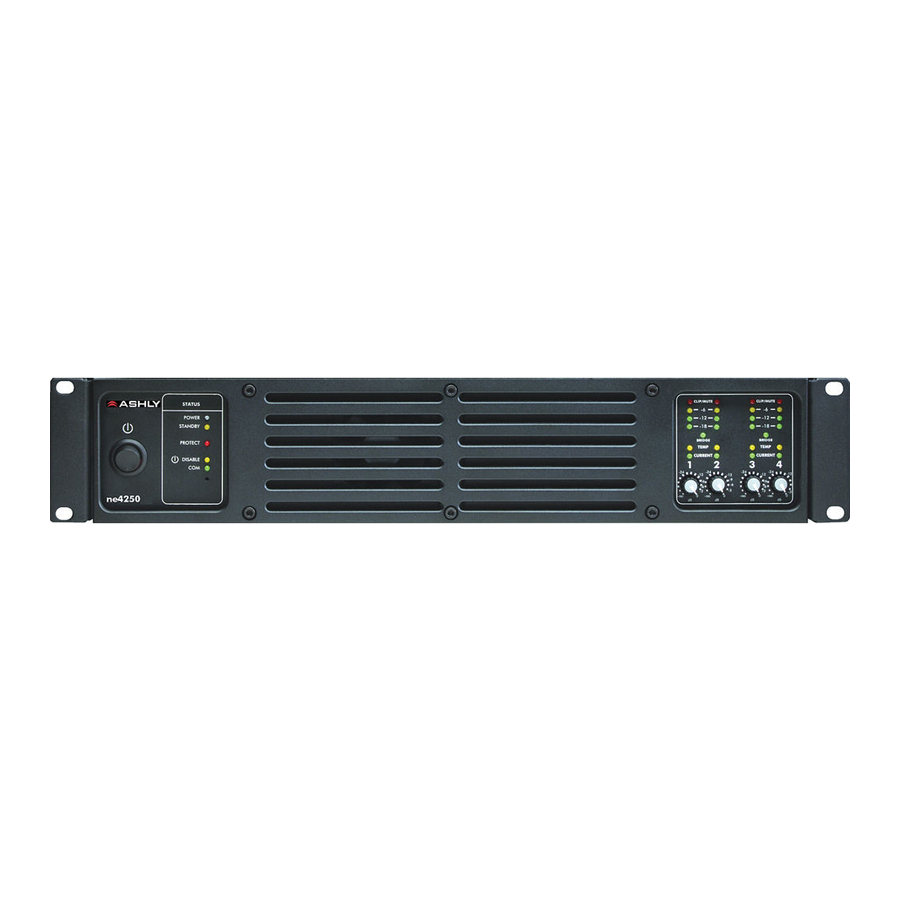

Operating Manual - NE Multi Channel Power Amplifier Physical Description Each model in the NE Multichannel series is 2RU, and weighs 22 pounds (10kg) or less. The model number is indicated in the lower left corner of the front panel. Amplifier Front Panel 1. -
Page 7: Rear Panel Features
Operating Manual - NE Multi Channel Power Amplifier Amplifier Rear Panel 1. Optional Cobranet Card CNM-2 – Installation of this option allows this amplifier to be part of a Cobranet audio network. 2. Optional AES/EBU or MIC Input - This slot allows for installation of an AES/EBU digital input or MIC input. 3. -
Page 8: Remote Control
Data Control The Data Control euroblock connector on the back of the amplifier is used for the Ashly WR-5 programmable zone con- troller and Ashly RD-8C (or RW-8C) remote level controller. The Data Control interface provides data and phantom power for... -
Page 9: Remote Level Control (Wr-1)
Operating Manual - NE Multi Channel Power Amplifier WR-1 Remote Level Control - The WR-1 is a dual potentiometer remote volume control designed to fit in a standard wall electrical box, and is wired to the amplifier (with or without DSP installed) back panel Euroblock connector labeled “Remote Level Control”... -
Page 10: Rd-8C And Rw-8C Remote Control
The Ashly RPS-18 remote power supply is required when more than four WR-5 remotes are connected to one amplifier. neWR-5 Networked Programmable Remote Control - The neWR-5 remote control is a networked version of the WR-5,... -
Page 11: Newr-5 Networked Programmable Remote Control
Cat-5 Ethernet cable and an IEEE 802.3af Power over Ethernet (PoE) switch, hub, or in-line PoE injector. If PoE is unavailable, the Ashly RPS-18 (sold separately) is a 15-48VDC power supply capable of at least 2 watts per neWR-5 and can be hard wired to the back of the neWR-5. -
Page 12: Amplifier Control Surface
Operating Manual - NE Multi Channel Power Amplifier The base amplifier comes with software provisions for an audio control surface, password protected security functions, and network property management. Furthermore, Link Group Configuration and Power On Delay are set up under the Device Options menu tab. -
Page 13: The Dsp Window
Operating Manual - NE Multi Channel Power Amplifier side, with a cross linking matrix mixer in between. Key features of the DSP window include: Input Channel Number - Right click on this to bring up Clear, Copy/Paste, Link, and Sub Preset for that input channel. Input Channel Name - The user can name each input channel. -
Page 14: Specifications
Operating Manual - NE Multi Channel Power Amplifier 6. SPECIFICATIONS General Power Amplifier Specifications 0dBu = 0.775V rms Base Model 4250 8250 120VAC 230VAC 120VAC 230VAC Continuous Average Power Output Per Channel Low Z models, Stereo Mode, all channels driven 8Ω, 20Hz-20kHz 1%THD . - Page 15 Operating Manual - NE Multi Channel Power Amplifier All Pass DSP Specifications Frequency 20Hz-20kHz Input: ....Active Balanced, 10 kohms Max Input Level: ..+21 dBu Variable Q HP/LP Frequency: .
- Page 16 ASHLY AUDIO, INC. shall be obligated to only correct defects in the product itself. ASHLY AUDIO, INC. is not liable for any damage or injury, which may result from, or be incidental to, or a consequence of, such defects.
