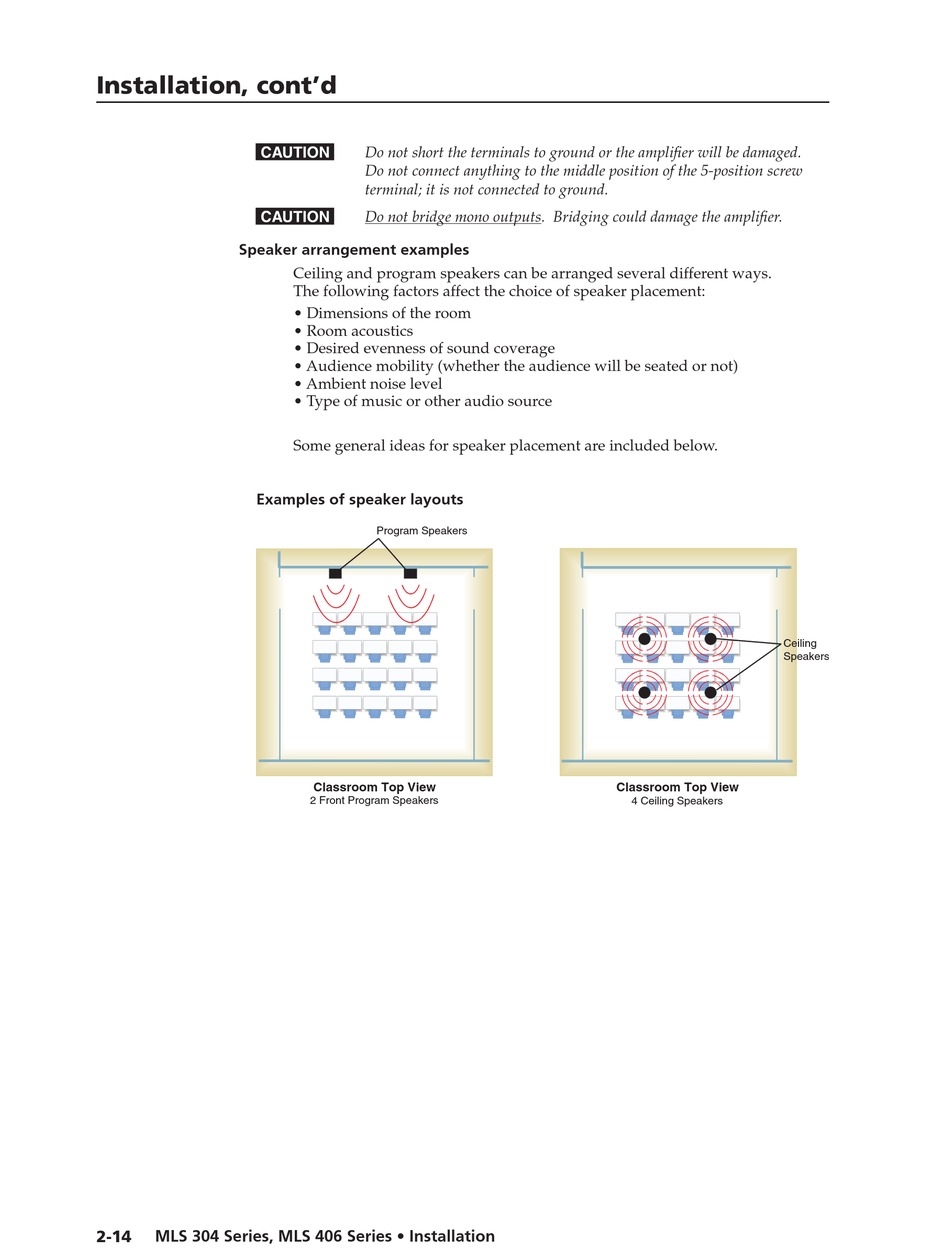

Speaker arrangement examples
Examples of speaker layouts
2-1
MLS 304 Series, MLS 406 Series • Installation
Do not short the terminals to ground or the amplifier will be damaged.
Do not connect anything to the middle position of the 5-position screw
terminal; it is not connected to ground.
Do not bridge mono outputs. Bridging could damage the amplifier.
Ceiling and program speakers can be arranged several different ways.
The following factors affect the choice of speaker placement:
• Dimensions of the room
• Room acoustics
• Desired evenness of sound coverage
• Audience mobility (whether the audience will be seated or not)
• Ambient noise level
• Type of music or other audio source
Some general ideas for speaker placement are included below.
Program Speakers
Classroom Top View
2 Front Program Speakers
Ceiling
Speakers
Classroom Top View
4 Ceiling Speakers
