- Page 1 Owner’s Manual Includes LX10, LX11, and LX12 ATTENTION: Please read the content of your owner’s manual before operating your power chair. “Pride LX10” Exeter, PA St. Catharines, ON 1-800-800-8586 www.pridemobility.com...
- Page 2 WARNING! Failure to heed the warnings in this owner’s manual may result in personal injury. CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your power chair. Copyright © 2003 Pride Mobility Products Corporation INFMANU2052...
-
Page 3: Table Of Contents
C O N T E N T S INTRODUCTION ........................4 SAFETY ............................6 III. EMI/RFI ............................13 IV. UNPACKING AND ASSEMBLY ..................15 YOUR PRIDE LX ........................18 VI. COMFORT ADJUSTMENTS ....................22 VII. DISASSEMBLY ......................... 24 VIII.BATTERIES AND CHARGING ................... 25 IX. -
Page 4: Introduction
I N T R O D U C T I O N INTRODUCTION Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Pride Power Chair. The Pride Power Chair design combines the most advanced state-of-the-art components with modern, attractive styling. - Page 5 I N T R O D U C T I O N Pride Owners Club As an owner of a Pride product, you are invited to register your product’s warranty and enroll in the Pride Owners Club. You may do so by filling out and returning your enclosed registration card or by visiting Pride’s web site at www.pridemobility.com.
-
Page 6: Safety
I I . S A F E T Y SAFETY WARNING! Do not operate your new power chair for the first time without completely reading and understanding this owner’s manual. Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an extensive variety of products to best fit the individual needs of the power chair user. -
Page 7: Weight Limitations
I I . S A F E T Y NOTE: If you discover a problem, contact your authorized Pride provider for assistance. Weight Limitations Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. WARNING! Exceeding the weight capacity voids your warranty and may result in personal injury and/or damage to your power chair. - Page 8 I I . S A F E T Y WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas covered with snow, ice, cut grass, or wet leaves). WARNING! When on any sort of an incline or decline, never place the power chair in freewheel mode while seated on it or standing next to it.
- Page 9 I I . S A F E T Y n Reduce your power chair’s speed when driving on uneven terrain and/or soft surfaces. n Avoid tall grass that can entangle the running gear. n Avoid loosely packed gravel and sand. n If you feel unsure about a driving surface, avoid that surface.
- Page 10 I I . S A F E T Y Stairs and Escalators Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator. WARNING! Never use your power chair to negotiate steps or escalators. You may cause injury to yourself and to others and/or damage your power chair.
-
Page 11: Positioning Belts
I I . S A F E T Y WARNING! Before transferring, position yourself as far back as possible in the power chair seat to prevent the power chair from tipping forward during transfer and causing injury. WARNING! Avoid using your armrests for weight bearing purposes. Such use may cause the power chair to tip and cause personal injury. -
Page 12: Removable Parts
I I . S A F E T Y Batteries In addition to following the warnings below, be sure to comply with all other battery handling information. For more information about your power chair’s batteries, see VIII. “Batteries and Charging.” WARNING! Power chair batteries weigh approximately 60 pounds each. -
Page 13: Emi/Rfi
I I I . E M I / R F I EMI/RFI Laboratory tests performed by the Food and Drug Administration (FDA) have shown that radio waves can cause unintended motion of power chairs. Radio waves are a form of electromagnetic energy. When this energy adversely affects the operation of an electronic device, it is called Electromagnetic Interference (EMI) or Radio Frequency Interference (RFI). - Page 14 I I I . E M I / R F I Are all power chairs susceptible to EMI/RFI? Each make and model of chair differs in its ability to resist electromagnetic interference. That is, each has a particular level of “immunity” to interference, measured in volts per meter (V/m). A higher immunity level offers greater protection.
-
Page 15: Unpacking And Assembly
I V . U N P A C K I N G A N D A S S E M B L Y The contents of your Pride LX box are as follows: one (1) base assembly, one (1) seatback, two (2) battery boxes, one (1) controller box, one (1) battery charger box, and one (1) accessories box. - Page 16 I V . U N P A C K I N G A N D A S S E M B L Y 6. Remove the plastic wrap from the seat posts and remove the seatback screws. See figure 6. 7.
- Page 17 I V . U N P A C K I N G A N D A S S E M B L Y 13. Connect the controller to the motors. The motor/controller connectors are marked “L” for left and “R” for right.
-
Page 18: Your Pride Lx

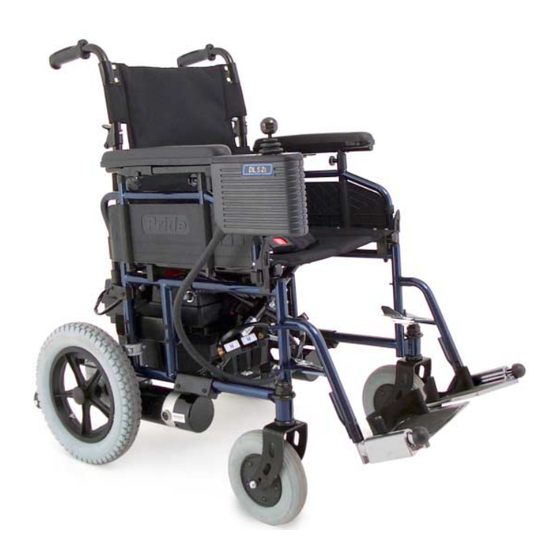

Y O U R P R I D E The Pride LX is a rear-wheel drive power chair that you can easily disassemble and fold for transportation or storage. The two battery boxes sit on the battery tray. SEAT CANES SEATBACK ARMRESTS CONTROLLER... - Page 19 Y O U R P R I D E SPECIFICATIONS Drive Wheels: 13 in. solid tires, rear mounted (LX10, LX11) 13 in. pneumatic tires, rear mounted (LX12) Caster Wheels: 8 in. solid, articulating, front mounted (LX10, LX11) 8 in. pneumatic, articulating, front mounted (LX12) Anti-tip Wheels: 1.5 in., solid, rear mounted Maximum Speed:...
- Page 20 Y O U R P R I D E Electronic Connections The Pride LX’s controller is connected to the front battery MOTOR CONNECTORS box and to each motor. See figures 15 and 16. The motor CONTROLLER CONNECTOR connectors are marked “L” and “R”. The “L” harness is connected to the left motor and the “R”...
- Page 21 Y O U R P R I D E Manual Freewheel Levers For convenience, your Pride LX is equipped with two manual freewheel levers that enable you to disengage the drive motors and maneuver the chair manually, in freewheel mode. To engage or disengage the drive motors: 1.
-
Page 22: Comfort Adjustments
V I . C O M F O R T A D J U S T M E N T S After you have used your Pride LX for an extended period of time, you may find the need to make some adjustments to increase your comfort. - Page 23 V I . C O M F O R T A D J U S T M E N T S Seatback Height You can change the seatback height in 1-in. increments. There are five different height adjustment holes. To change the seatback height: 1.
-
Page 24: Disassembly
V I I . D I S A S S E M B L Y Your Pride LX is a folding power chair. Once you remove the two battery boxes, you can fold the chair for easy transportation or storage. To disassemble and fold your Pride LX: PULL UP THE BATTERY FRAME BEFORE FOLDING. -
Page 25: Viii.batteries And Charging
Do not use the on/off key to stop the chair. This may cause injury. V I I I . B A T T E R I E S A N D C H A R G I N G Your Pride LX uses two long-lasting, 12-volt, deep-cycle batteries that are sealed and maintenance-free. Since they are sealed, there is no need to check the electrolyte (fluid) level. - Page 26 V I I I . B A T T E R I E S A N D C H A R G I N G Frequently Asked Questions (FAQs) Can I use a different battery charger? We do not recommend using other types of chargers (e.g., an automotive battery charger) other than the one suggested by your authorized Pride provider.
- Page 27 V I I I . B A T T E R I E S A N D C H A R G I N G Why do my new batteries seem weak? Deep-cycle batteries employ a different chemical technology than that used in car batteries, nickel-cadmium (nicads), or in other common battery types.
-
Page 28: Operation
I X . O P E R A T I O N DYNAMIC DL-50 CONTROLLER The DL-50 electronic controller is an integral electronic controller. All of the electronics necessary to operate the power chair are contained in one module. See figure 28. The DL-50 consists of: 1. -
Page 29: Thermal Rollback
I X . O P E R A T I O N Off-board Charger/Programming Socket Your DL-50 may have a 3-pin socket on the front which enables you to use an off-board battery charger. The socket may also be used for reprogramming the controller by using a programmer, should this be necessary. Contact your authorized Pride provider for more information. - Page 30 I X . O P E R A T I O N Fault Codes The system status LED is displayed within the on/off key. This LED is lit if the system is turned on. It also flashes in groups called flash codes, to indicate system faults. The table below identifies the individual fault codes. If your controller displays one of these codes, contact your authorized Pride provider.
-
Page 31: Pilot Controller
I X . O P E R A T I O N PILOT CONTROLLER The electronic controller is what you use to operate your power chair. It takes the battery voltage and sends it to the appropriate system. The electronic controller also enables you to monitor battery charge, electronic controller functions, and the condition of your electrical system. -
Page 32: Controller Connector
I X . O P E R A T I O N n Red and yellow lights lit: Charge battery if possible; Pilot and electrical system OK. n Red lights only lit or slow flash: Charge battery as soon as possible; Pilot and electrical system OK. n Rapid flash of lights: Indicates a fault in the Pilot or the electrical system. - Page 33 I X . O P E R A T I O N WARNING! Under strenuous driving conditions, it is possible for the bottom and side case temperature of the Pilot to exceed 105° F. DO NOT touch the side or bottom of the Pilot case under these circumstances.
-
Page 34: Care And Maintenance
C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your power chair is a sophisticated, motorized vehicle. Like any motorized vehicle, it requires routine maintenance checks. You can perform some of these checks yourself. But other maintenance checks may require assistance from an authorized Pride provider. - Page 35 C A R E A N D M A I N T E N A N C E n Ensure that all parts of the controller system are securely fastened to your power chair. Do not overtighten any screws. n Check for proper tire inflation. There should be 30 – 35 psi in each pneumatic tire. If a tire does not hold air, see an authorized Pride provider for replacement.
- Page 36 C A R E A N D M A I N T E N A N C E Cleaning Precautions CAUTION! Never hose off your Pride LX or place it in direct contact with water. Your LX has a painted, ABS plastic body shroud that allows it to be easily wiped clean with a damp cloth. CAUTION! Never use any chemicals to clean a vinyl seat, as they may cause the seat to become slippery or dry out and crack.
- Page 37 C A R E A N D M A I N T E N A N C E Follow these easy steps for a quick and safe tire replacement: 1. Place a support under the motor. 2. If you have pneumatic tires, make sure it is completely deflated 3.
- Page 38 C A R E A N D M A I N T E N A N C E CAUTION! Make sure you tighten the fasteners so that the connections are secure. 14. Place the lid back onto the battery box. 15.
- Page 39 C A R E A N D M A I N T E N A N C E When to See Your Authorized Pride Provider for Service The following symptoms could indicate a serious problem with your power chair. If necessary, contact your authorized Pride provider.
-
Page 40: Warranty
X I . W A R R A N T Y Five-Year Limited Frame Warranty There will be a five-year limited frame warranty on Pride workmanship. One-Year Limited Warranty For one (1) year from the date of purchase, Pride will repair or replace at our option to the original purchaser free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship: n Electronic controllers and joystick assemblies... - Page 41 X I . W A R R A N T Y Warranty Exclusions n ABS plastic body shrouds and footrest covers are wear items and not warranted. n Batteries (battery manufacturer provides a six-month limited warranty) n Tires and tubes n Upholstery and seating n Repairs and/or modifications made to any part without specific prior written consent from Pride n Circumstances beyond the control of Pride...
- Page 42 N O T E S www.pridemobility.com Pride LX Series/Rev B/Feb 03...
- Page 43 Quality Control - Model LX Thank you for making the Pride LX your choice in power chairs. We have thoroughly inspected your Pride LX. The following check marks indicate that it has been test driven and inspected. Model #______________ Serial #______________ Controller Controller Serial # Inclusion of all Parts...
