Everything you need to boot this
motherboard is included in this Easy
Installation Guide. For more
information, a complete
Online User's
Manual
can be found in the
Pack CD
Disc. Thanks for the help of
saving our earth.
Hard Drive IDE Cable x 1
ATA/66 IDE Cable x 1
Floppy Drive Cable x 1
Bonus Pack CD disc x 1
This Easy Installation Guide x 1
PART NO.: 49.87703.001
DOC. NO. : AX64-EG-E0005C
Bonus

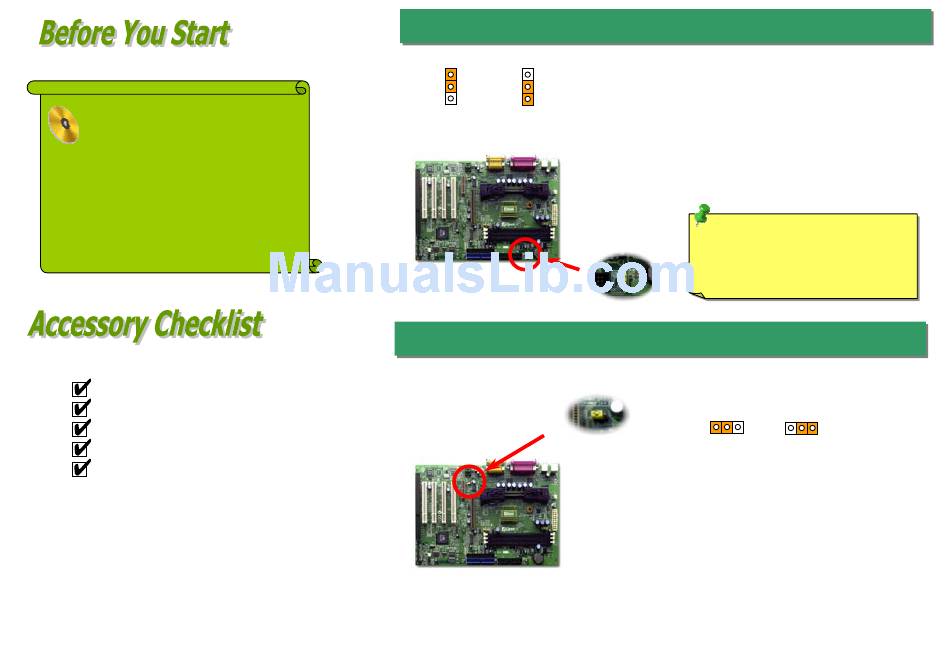

JP14 Clear CMOS
1
1
2
2
3
3
Clear CMOS
Normal Operation
(default)
JP12 Enable/Disable Onboard Audio
This motherboard has AC97 sound onboard. JP12 is used to
enable or disable onboard AD1881 CODEC chip. If you select
Disable, you can use your preferred AMR sound card.
You can clear CMOS to restore system default setting. To clear
the CMOS, follow the procedure below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 for a few seconds.
4. Return JP14 to its normal setting by shorting pins 1-2.
5. Connect ATX power cable back to connector PWR2.
Tip: When should I Clear CMOS?
1. Boot fail because of overclocking...
2. Forget password...
3. Troubleshooting...
1 2 3
1 2 3
Enable
Disable
