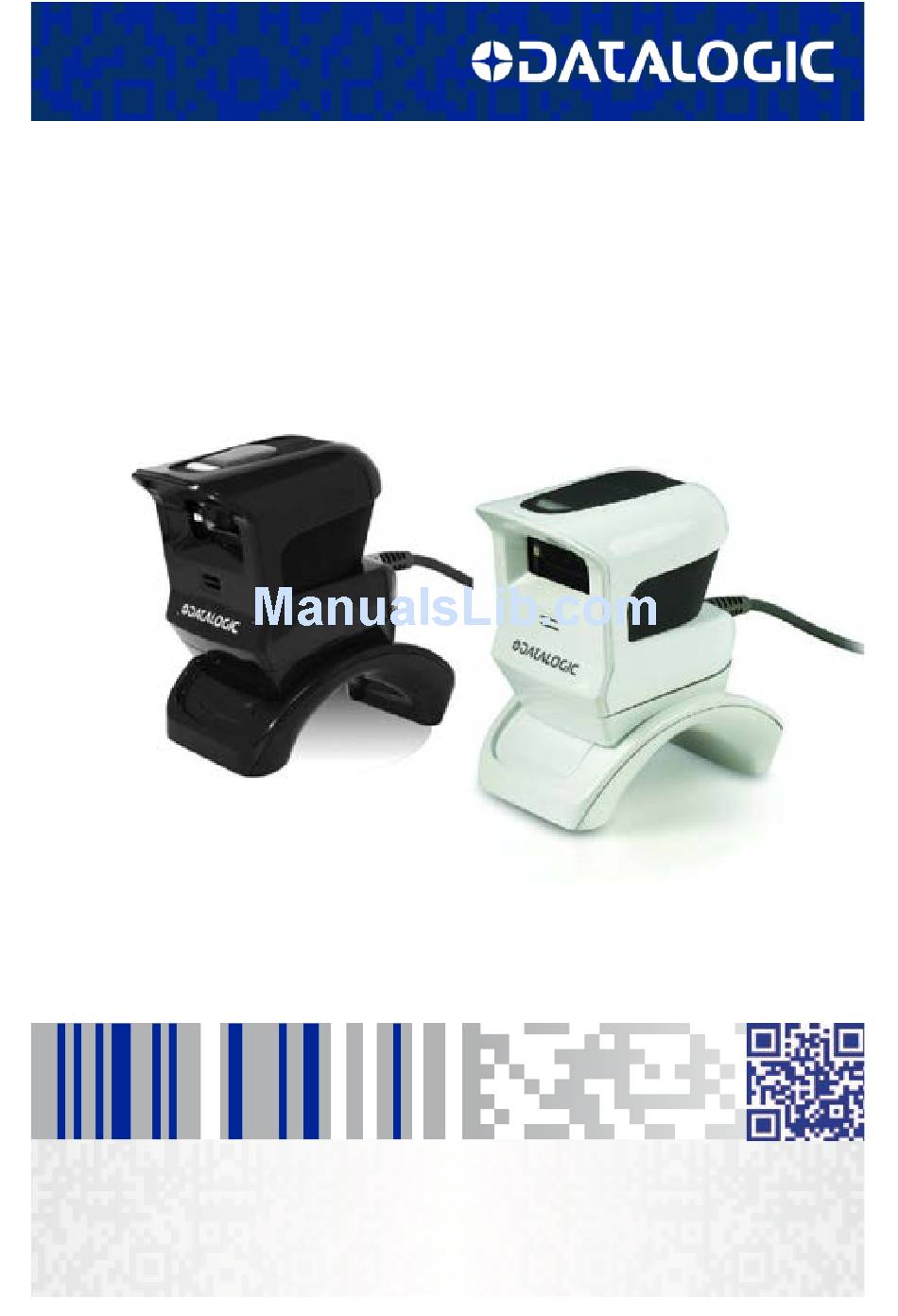

  • Page 1 Gryphon™ I GPS4400 On-Counter Presentation Scanner Quick Reference Guide...
  • Page 2 Disclaimer Datalogic has taken reasonable measures to provide information in this man- ual that is complete and accurate, however, Datalogic reserves the right to change any specification at any time without prior notice. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A.

  • Page 3: Table Of Contents

    Canadian Notice ..................33 Power Supply ..................33 Reader Labeling ....................34 Aiming System................34 WEEE Statement .................... 40 Datalogic ADC Limited Factory Warranty ............. 41 Services and Support ..................44 Products ..................44 Service & Support ................ 44 Contact Us ..................44...
  • Page 4 NOTES...
  • Page 5 Product, you will be deemed to have accepted the terms and conditions of this Agreement. If you do not intend to be bound to the terms of this Agreement, Datalogic is not willing to license the Software to you, you may not use the Datalogic Product or the Software, and you must contact the party from whom you acquired the Datalogic Product for instructions.
  • Page 6 End User. Title to the Software shall be and remain with Datalogic or the third party from whom Datalogic has obtained a licensed right. As used in this Agreement, the term "purchase" or its equivalents when applied to the Software shall mean "acquire under license."...
  • Page 7 Inc., Legal Department, 959 Terry Street, Eugene, OR 97402. 7.2 In the defense or settlement of any such claim, Datalogic may, at its option, 1) pro- cure for End User the right to continue using the Datalogic Product, 2) modify the...
  • Page 8 DFARS 252.227-7013(c)(1)(ii), whichever is applicable. 9.2 If End User is using the Datalogic Product outside of the United States, End User must comply with the applicable local laws of the country in which the Datalogic Product is used, with U.S. export control laws, and with the English language version of this Agreement.
  • Page 9 This provides our customers with the very latest in Datalogic software technology. The only exception to this policy is when the buyer has a signed contract with Datalogic that clearly defines the terms and conditions for making software/firmware changes in products shipped to the buyer.
  • Page 10 NOTES Gryphon™ GPS4400...
  • Page 11 On-Counter Presentation Scanner The Gryphon™ 4400 series represents a premium level in bar code data collection devices from Datalogic using advanced imaging tech- nology. The GPS4400 countertop presentation scanner offers hands-free scanning of small, easily handled items and hand held scanning operation for bulkier items.

  • Page 12: Reading A Bar Code

    Reading a Bar Code User comfort is maximized with the GPS4400 OEM module’s steady, deep red illumination light. Easier on the eyes than competitive prod- ucts with flicker illumination, the highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads. The aimer’s cen- ter cross provides a locator for targeted scanning in a multiple bar code environment.

  • Page 13: Setting Up The Reader

    Setting Up the Reader Setting Up the Reader Scan the appropriate bar code for your reader’s interface type from the following section. RS-232 Interface RS-232 standard interface Select RS-232 STD RS-232 Wincor-Nixdorf Select RS-232 W-N RS-232 for use with OPOS/UPOS/JavaPOS Select RS-232 OPOS Quick Reference Guide...

  • Page 14: Usb Interface

    Setting Up the Reader USB Interface The reader attaches directly to a USB host or a powered USB hub, and is powered by it. No additional power supply is required. The reader auto-detects the USB and defaults to the USB-KBD interface. To simulate a Keyboard, scan the bar code below: $P,HA35,P(CR) Interface Selection: USB-KBD...
  • Page 15 Setting Up the Reader To simulate a serial interface, scan the bar code below: $P,HA47,P(CR) Interface Selection: USB-COM Download the correct USB COM driver from: http://www.datalogic.com. IMPORTANT USB-OEM (for use with OPOS/UPOS/JavaPOS): Select USB-OEM Quick Reference Guide...

  • Page 16: Attaching/Detaching The Stand

    Setting Up the Reader Attaching/Detaching the Stand The reader can be removed or attached to the stand simply by snap- ping on or off. To attach, align the holes on the bottom of the scanner with the posts on the stand and push down to snap in place. To remove, just pull straight up to detach the reader from the base.

  • Page 17: Programming

    (if necessary), you can select other options and cus- tomize your reader through use of the programming bar codes available in the Gryphon I GPS4400 Product Reference Guide (PRG). Programming can also be performed using the Datalogic Aladdin™...

  • Page 18: Resetting Product Defaults

    Programming Resetting Product Defaults If you aren’t sure what programming options are in your reader, or you’ve changed some options and want your default settings restored, scan the bar code below to reset the reader to its initial configuration. Defaults are based on the interface type. Be sure your reader is configured for the correct interface before scanning this label.

  • Page 19: Good Read Green Spot Duration

    Programming Good Read Green Spot Duration Successful reading can be signaled by a good read green spot. Use the bar codes that follow to specify the duration of the good read pointer beam after a good read. ENTER/EXIT PROGRAMMING MODE ♦...

  • Page 20: Operating Modes

    Programming Operating Modes The reader can operate in one of several scanning modes. See the PRG for further information on the operation of read- ing modes, and additional programmable features. On Line (Single Trigger): Scanning is manually activated when the trigger button is pushed.
  • Page 21 Programming Operating Modes (continued) $CSNRM01(CR) Serial On Line $CSNRM02(CR) Automatic (Always On) $CSNRM03(CR) ♦ Automatic (Object Sense) Quick Reference Guide...

  • Page 22: Technical Features

    Technical Features Technical Features Item Description Physical Characteristics White/Gray Color Dark Gray/Black Without Stand With Stand Height: 74 mm Height: 121 mm Dimensions Length: 95 mm Length: 107 mm Width: 64 mm Width: 73 mm Without Stand: 295.0 g / Weight With Stand: 178.0 g / 6.3 oz 10.4 oz...
  • Page 23 Technical Features Item Description Current & Power Consumption Input current at 5V in Automatic (Object Sense) Reading Mode Operating (typical) <180 mA Operating (max) <200 mA Operating (peak*) <300 mA 55 mA (OnLine & Serial OnLine Modes) Idle/standby (typical) 105 mA (Automatic Object Sense Mode) No idle in Automatic Mode Performance Characteristics Nominal Frame Rate...
  • Page 24 Technical Features inches Code 39 4mil 15.4 Code 39 5mil 18.8 Code 39 10mil 37.9 14.9 Code 39 20mil 57.1 22.5 EAN 7.5mil 25.5 10.0 Depth of Field (Typical) EAN 13mil 42.2 16.6 PDF-417 6.6mil 13.7 PDF-417 10mil 22.4 PDF-417 15mil 34.6 13.6 DataMatrix 10mil...
  • Page 25 Code 128; Code 128 ISBT; Interleaved 2 of 5 ; Standard 2 of 5; Interleaved 2 of 5 CIP (HR); Industrial 2 of 5; Discrete 2 of 5; Datalogic 2 of 5 (China Post Code/Chi- nese 2 of 5); IATA 2of5 Air cargo code; Code 11; Codabar; Codabar (NW7); ABC Codabar;...

  • Page 26: Laser Safety

    Technical Features RS-232 types: STD, W-N & OPOS Interfaces Supported USB types: COM, KBD & OEM User Environment Operating Temperature 0° to 50° C (32° to 122° F) Storage Temperature -40° to 70° C (-40° to 158° F) Operating: 5% to 90% relative humidity, non condens- Humidity Drop specifications 5 drops from 4 feet (1.2 m) to concrete...

  • Page 27: Host Interface Connections

    Technical Features Host Interface Connections The reader auto-detects if a USB host cable is attached at powerup, and switches the host interface to USB in that event. Back of Scanner Cable Strain Relief Pin 10 To Host Pin 1 Cable Cable Clip (Latch) Interface Cable Port (out) RS-232 Request to Send (output from scanner)

  • Page 28: Led And Beeper Indications

    LED and Beeper Indications LED and Beeper Indications The top of the product has a button and an indicator LED: Trigger But- Press for manual trigger Green LED Good Read or trigger button press ON = USB enumeration or interface inactive, waiting for change Green LED of configuration, during transfer of captured image, or Blinks =...

  • Page 29: Indicators

    Indicators Indicators The reader’s beeper sounds and its LED illuminates to indicate vari- ous functions or errors on the reader. An optional “Green Spot” also performs useful functions. The following tables list these indica- tions. One exception to the behaviors listed in the tables is that the reader’s functions are programmable, and so may or may not be turned on.
  • Page 30 Indicators Indicator Description Beeper The LED is lit Reader Active The reader is active Mode and ready to scan. steadily The reader has Reader The LED blinks been disabled by Disabled continuously the host. Upon successful read of a label, the software shall turn Green Spot the green spot on...
  • Page 31 Indicators Programming Mode The following indications ONLY occur when the reader is in Programming Mode Indicator Description Beeper A valid programming Reader sounds Label Program- LED blinks con- label has been four low fre- ming Mode Entry tinuously scanned. quency beeps. Reader sounds Label Program- three times at...

  • Page 32: Error Codes

    Error Codes Error Codes Upon startup, if the reader sounds a long tone, this means the reader has not passed its automatic Selftest and has entered FRU (Field Replaceable Unit) isolation mode. If the reader is reset, the sequence will be repeated. Press and release the trigger to hear the FRU indi- cation code.

  • Page 33: Gps4400 Dimensions

    Error Codes GPS4400 Dimensions Figure 1. GPS4400 Without Stand Dimensions in mm Quick Reference Guide...
  • Page 34 Error Codes Figure 2. GPS4400 Dimensions With Stand Dimensions in mm Gryphon™ GPS4400...

  • Page 35: Ergonomic Recommendations

    Ergonomic Recommendations Ergonomic Recommendations In order to avoid or minimize the potential risk of ergonomic injury follow the recommendations below. Consult with your local Health & Safety Manager to ensure that you are adher- ing to your company’s safety programs to prevent employee CAUTION injury.

  • Page 36: Regulatory Information

    All models are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required. Any changes or modifications to equipment, not expressly approved by Datalogic could void the user's authority to operate the equip- ment. Statement of Agency Compliance This device complies with part 15 of the FCC Rules.

  • Page 37: Canadian Notice

    Regulatory Information • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio or television technician for help.

  • Page 38: Reader Labeling

    Reader Labeling Reader Labeling The sample labels shown below are for illustrative purposes only. Please view the labels on your product for actual details, as they may vary. Bottom of Scanner Aiming System ™ The Gryphon aiming system meets the Class 2 requirements for laser safety.
  • Page 39 Reader Labeling LA LUCE LASER DIE LASER-STRAH- LE RAYON LASER A LUZ LÁSER ES È VISIBILE LUNG IST FÜR DAS EST VISIBLE À VISIBLE AL OJO ALL' O CCHIO MENSCHLICHE AUGE L' O EIL NU ET IL HUMANO Y ES UMANO E VIENE SICHTBAR UND WIRD EST ÉMIS PAR LA...
  • Page 40 Reader Labeling For installation, use and maintenance, it is not necessary to open the device. Use of controls or adjustments or performance of proce- dures other than those specified herein may result in exposure to hazardous visible laser light. WARNING The product utilizes a low-power laser diode.
  • Page 41 Reader Labeling eviterebbe qualsiasi altra sorgente di luminosità intensa, ad esem- pio il sole. Evitare inoltre di dirigere il raggio laser negli occhi di un osservatore, anche attraverso superfici riflettenti come gli specchi. DEUTSCH Die folgenden Informationen stimmen mit den Sicherheitshin- weisen überein, die von internationalen Behörden auferlegt wurden, und sie beziehen sich auf den korrekten Gebrauch vom Terminal.
  • Page 42 Reader Labeling FRANÇAIS Les informations suivantes sont fournies selon les règles fixées par les autorités internationales et se réfèrent à une correcte utilisation du terminal. NORMES DE SECURITE LASER Ce produit est conforme aux normes de sécurité laser en vigueur à sa date de fabrication: CDRH 21 CFR 1040 et EN 60825-1.
  • Page 43 Reader Labeling ESPAÑOL Las informaciones siguientes son presentadas en conformidad con las disposiciones de las autoridades internacionales y se refieren al uso correcto del terminal. NORMATIVAS ESTÁNDAR PARA LA SEGURIDAD LÁSER Este aparato resulta conforme a las normativas vigentes de seguri- dad láser a la fecha de producción: CDRH 21 CFR 1040 y EN 60825-1.

  • Page 44: Weee Statement

    (WEEE), visite la página Web www.datalogic.com. Portuguese Para informações sobre a disposição de Sucatagem de Equipamentos Elétricos e Eletrônicos (WEEE -Waste Electrical and Electronic Equipment), consultar o site web www.datalogic.com. Chinese 有关处理废弃电气电子设备 (WEEE) 的信息，请参考 Datalogic 公 司的网站：http://www.datalogic.com/。...

  • Page 45: Datalogic Adc Limited Factory Warranty

    Datalogic service center, with shipping charges prepaid. Datalogic shall pay for the return of the product to Customer if the ship- ment is to a location within the country in which the Datalogic service center is located.

  • Page 46: Warranty Exclusions

    Datalogic service center, with shipping charges prepaid. Datalogic shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Datalogic service center is located. Cus- tomer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.

  • Page 47: Risk Of Loss

    VANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES. Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Da- talogic shall assume risk of loss or damage for product in Datalogic’s possession. In the absence of specific written instructions for the return of product to Cus- tomer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liability in connection with the return shipment.

  • Page 48: Services And Support

    Services and Support Services and Support Datalogic provides several services as well as technical support www.datalogic.com through its website. Log on to and click on the links indicated for further information. Products Search through the links to arrive at your product page where you Manuals Software &...
  • Page 49 Services and Support NOTES Quick Reference Guide...
  • Page 50 Services and Support NOTES Gryphon™ GPS4400...

  • Page 51: Declaration Of Conformity

    Lippo di Calderara di Reno (BO) 40012 Italy Pag.: 1 di 1 La presente dichiarazione di conformità è rilasciata sotto la responsabilità esclusiva di Datalogic ADC Srl per: This Declaration of Conformity is issued under the sole responsibility of Datalogic ADC Srl for: Cette déclaration de conformité...
  • Page 52 ©2013 Datalogic ADC, Inc. • All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic ADC, Inc. 959 Terry Street Eugene |OR 97402 Telephone: (1) 541-683-5700...
