Icom IC-F3022T/S Instruction Manual page 23

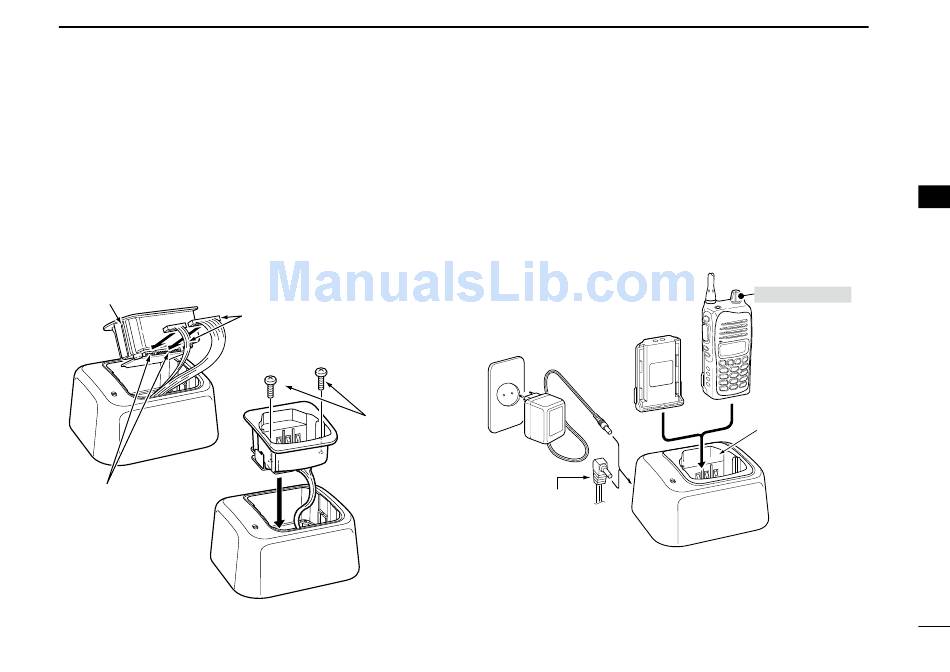

D AD-106 installation
The AD-106
charger adapter
BC-119N or BC-121N before battery charging.
➥ Connect the AD-106
charger adapter
BC-121N as below, then install the AD-106 into the holder
space of the BC-119N or BC-121N with the supplied
screws.
AD-106
Plugs
* This illustration is described with the BC-119N.
must be installed into the
and the BC-119N/
Connectors
Screws supplied
with the charger
adapter
BATTERY CHARGING
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of battery
packs.
The following items are additionally required.
• AD-106 charger adapter
• An AC adapter (may be supplied with BC-119N depending on ver-
sion) or the DC power cable (OPC-515L/CP-1L).
Battery
pack
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
4
Transceiver
Turn power OFF
AD-106 charger
adapter is installed
in BC-119N.
*See the instruction manual
for details of the charger LED
indication, operation, etc.
