Fuses - Jeep 2013 Grand Cherokee User Manual

MAINTAINING YOUR VEHICLE

FUSES

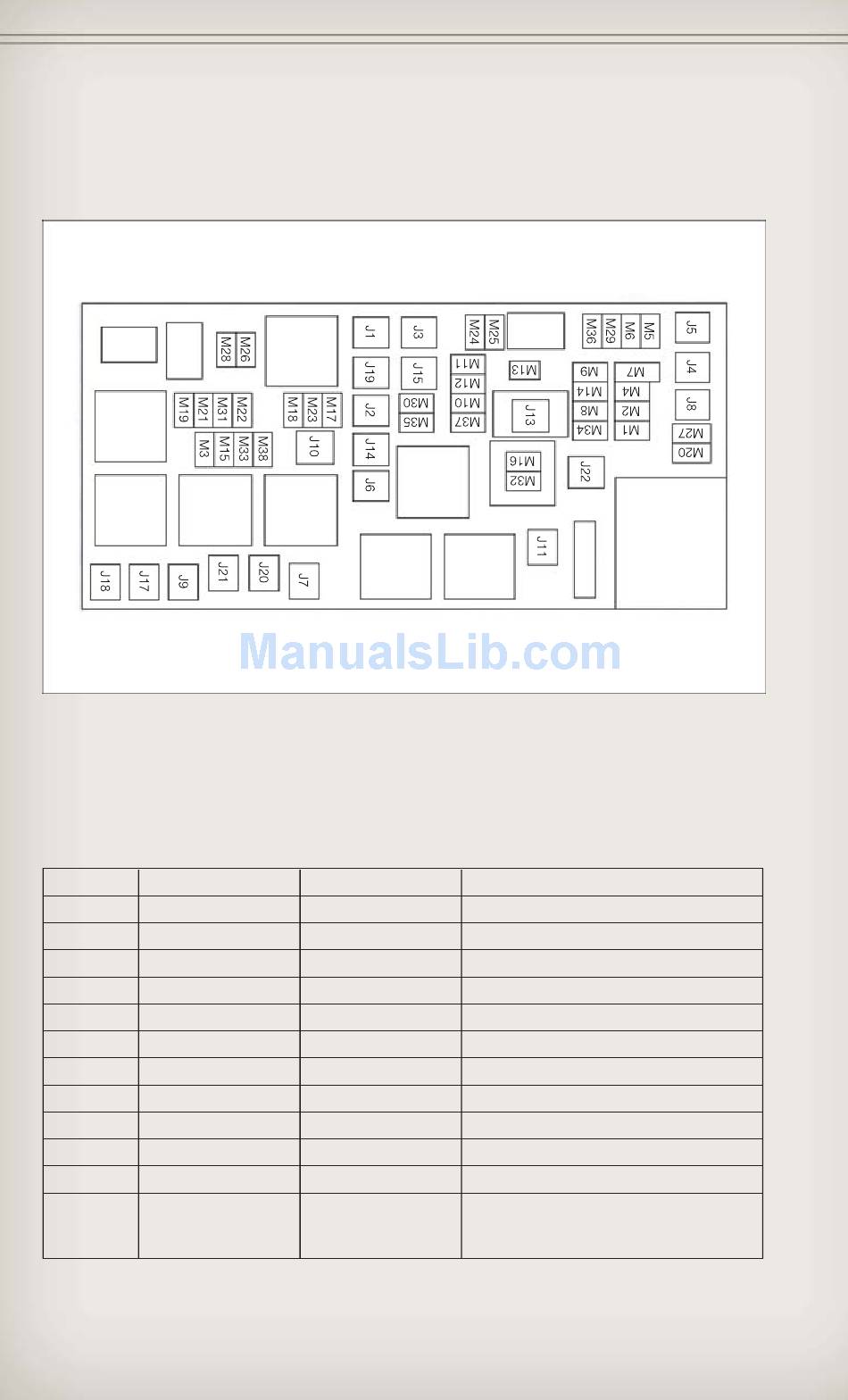

Integrated Power Module (fuses)
The integrated power module is located on the right side of the engine compartment.
This center contains cartridge fuses and mini fuses. A description of each fuse and
component may be stamped on the inside cover, otherwise the cavity number of each
fuse is stamped on the inside cover that corresponds to the following chart.
Cavity Cartridge Fuse
J01 40 Amp Green
J02 30 Amp Pink
J03 30 Amp Pink
J04 25 Amp Natural
J05 25 Amp Natural
J06 40 Amp Green
J07 30 Amp Pink
J08 40 Amp Green
J09 30 Amp Pink
J10 30 Amp Pink
J11 30 Amp Pink
J13 60 Amp Yellow
128
Mini Fuse
Air Suspension
Power Liftgate Module
Trailer Tow
Driver Door Node
Passenger Door Node
ABS Pump Feed/ESP
ABS Valve Feed/ESP
Power Seat
E-Brake
Headlamp Wash Relay Contact
DTCM
Streaming Video Module/ VES3
Module/VES2 Module/DISP/DVD
Description
