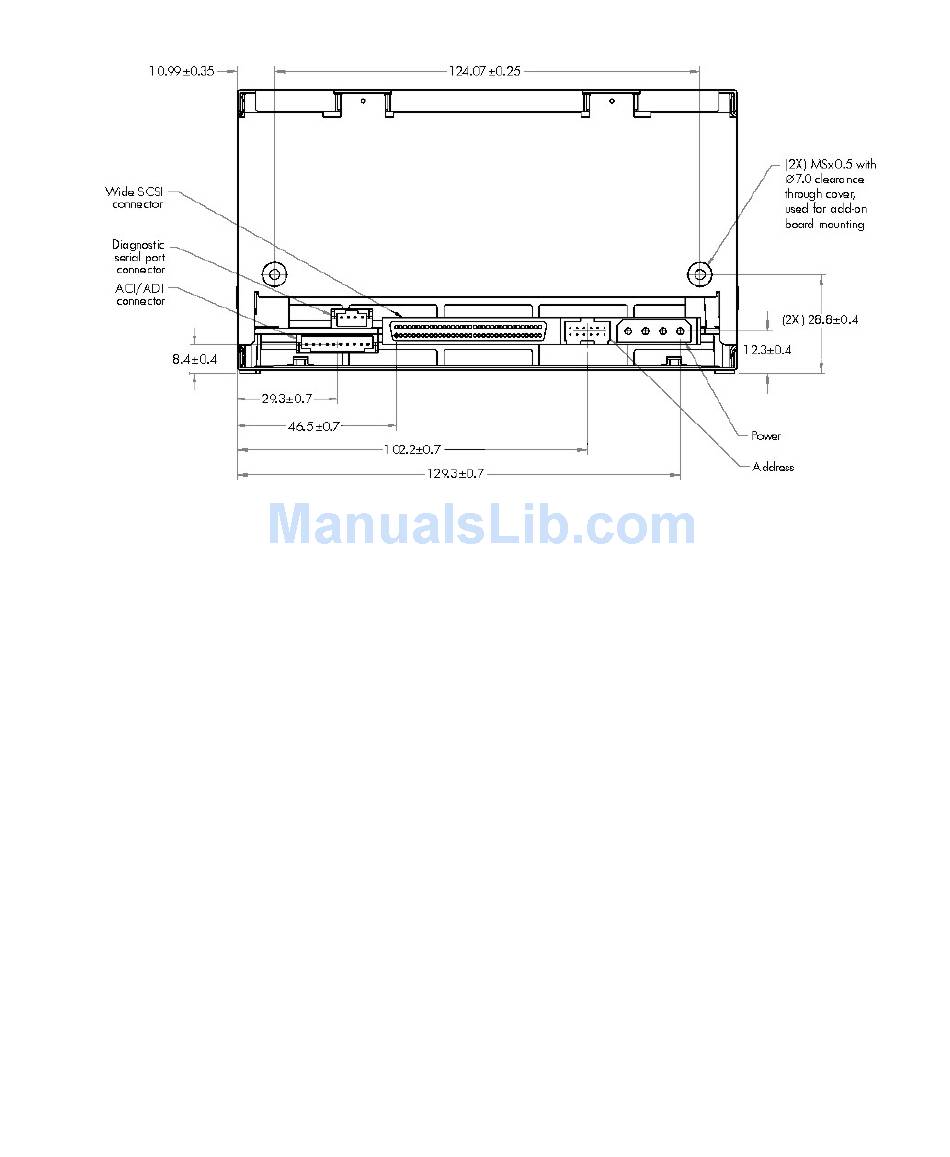

Rear View—SCSI
Figure 1-5
Figure 1-6 Rear view—Fibre Channel

Product weight

Internal* 2.239 kg (4.94 lb)
External 5.572 kg (12.28 lb)
*including front panel and ESD bag but excluding rails

Drive orientation

An HP Ultrium drive will operate in the 0°, –90° and +90° when viewed from the front panel.
In addition, in the 0° axis, the drive will operate with +20°nose-up tilt.
12 Physical specification
[No drawing available as of November 30, 2004]
