HP D6030A - NetServer - E50 Installation Manual
Hp netserver common tray ultra3 hard disk drive installation guide
Hide thumbs
Also See for D6030A - NetServer - E50:
- Installation manual (106 pages) ,
- User manual (85 pages) ,
- Getting started (57 pages)
Related Manuals for HP D6030A - NetServer - E50
Summary of Contents for HP D6030A - NetServer - E50

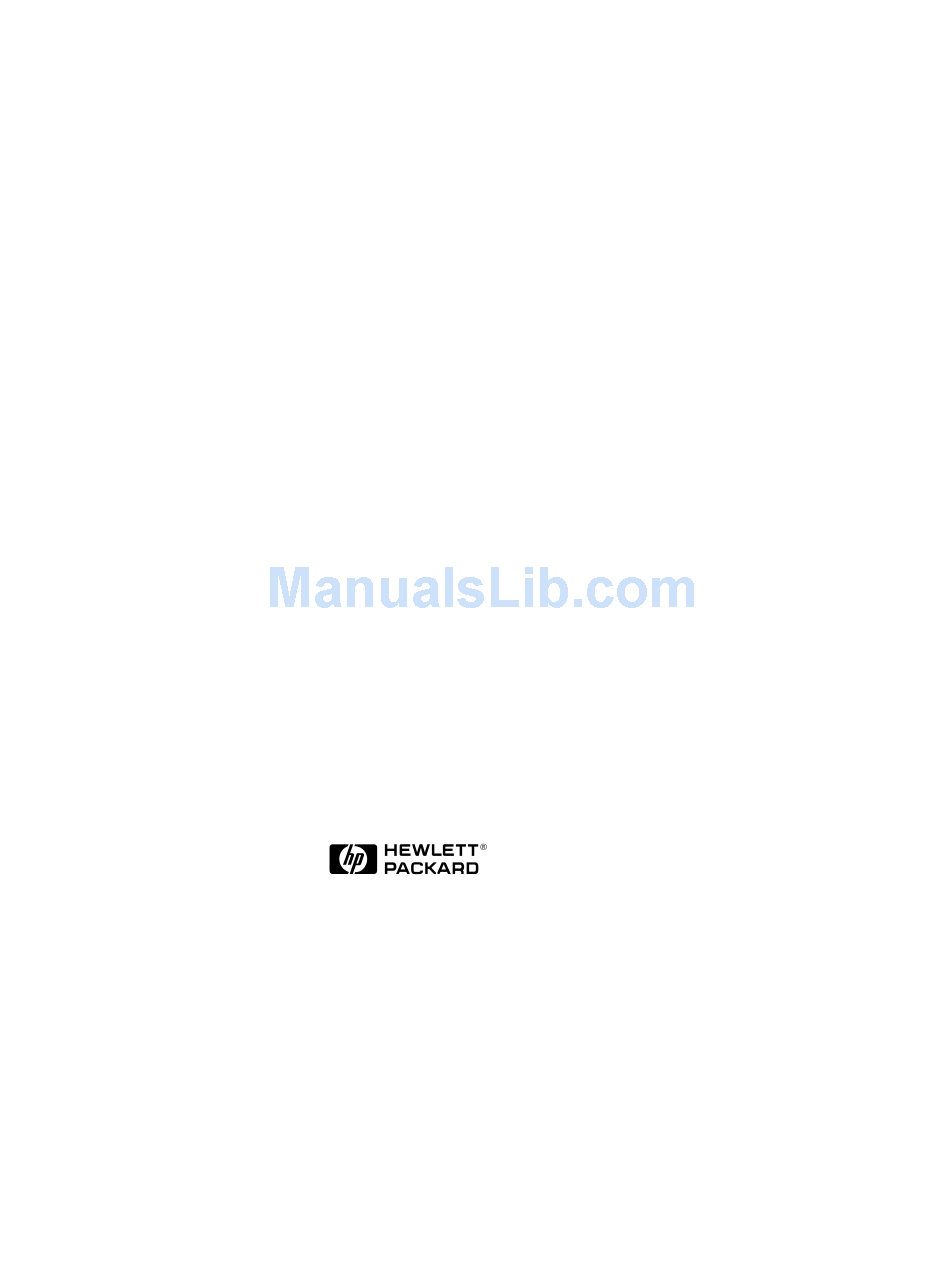

- Page 1 HP NetServer Common Tray Ultra3 Hard Disk Drive Installation Guide HP Part Number 5969-5921 Printed in February 2000...
-
Page 2: Audience Assumptions
Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard. -
Page 3: Table Of Contents
Contents 1 Prepare Drive for Installation..............1 Introduction ....................1 General Installation Steps................1 Step 1: Prepare for Installation ..............2 Tools You Need..................2 Setup Information You Need ..............2 Unpack the Drive..................3 Step 2: Determine the Drive Type ..............3 Step 3: Set the SCSI Address................ - Page 4 Contents Index....................... 33...
-
Page 5: Prepare Drive For Installation
1 Prepare Drive for Installation Introduction This chapter describes the tools, setup information and the steps necessary to install a SCSI hard disk drive into an HP NetServer. The drives documented in this guide are listed in Table 1-1. Table 1-1. Hard Disk Drive Product Numbers HP Product Number Capacity P1213A... -
Page 6: Step 1: Prepare For Installation
Chapter 1 Prepare Drive for Installation CAUTION In a few cases, drives with the same product number can be of different types and require different jumper settings. If your drive does not match the type in the figure, check the other figures for the matching type. -
Page 7: Unpack The Drive
Chapter 1 Prepare Drive for Installation Unpack the Drive CAUTION Shock: Hard disk drives are very susceptible to mechanical shock and can be damaged by a drop as short as one-quarter of an inch (.64 cm). Take care when unpacking and handling the disk drive. - Page 8 Chapter 1 Prepare Drive for Installation Type 1 P1213A 9.10 GB Model P1214A 9.10 GB Model P1215A 18.2 GB Model P1167A 18.2 GB Model P1169A 36.4 GB Model Type 2 P1213A 9.10 GB Model P1214A 9.10 GB Model P1215A 18.2 GB Model P1167A 18.2 GB Model P1169A 36.4 GB Model Type 3...
- Page 9 Chapter 1 Prepare Drive for Installation The "Disk Drive Characteristics" appendix shows a legend of the drive control settings and the jumper control settings for the individual drives. SCSI Connector Figure 1-2. Component Identification, Type 1 Drives SCSI Connector Power Connector Figure 1-3.
-
Page 10: Step 3: Set The Scsi Address
Chapter 1 Prepare Drive for Installation SCSI Connector Power Connector Figure 1-4. Component Identification, Type 3 Drives Step 3: Set the SCSI Address The SCSI address is set using jumpers located on the drive. SCSI addresses range from 0 to 15. Each drive is preset to SCSI address 3. - Page 11 Chapter 1 Prepare Drive for Installation R R L A A A A E E E 3 2 1 0 S S D R R R E E E P E D M 68-Pin SCSI S S S D S S E Connector SCSI 0 SCSI 3...
- Page 12 Chapter 1 Prepare Drive for Installation S D M W P E E T E S E P D S S P 68-Pin SCSI Connector SCSI 0 SCSI 1 SCSI 2 SCSI 3 SCSI 4 SCSI 5 SCSI 6 SCSI 7 SCSI 8 SCSI 9 SCSI 10...
- Page 13 Chapter 1 Prepare Drive for Installation R L R R E E E E S / D E A A A A S D S S E WS S 3 2 1 0 68-Pin SCSI Connector SCSI 0 SCSI 1 SCSI 2 SCSI 3 SCSI 4...
-
Page 14: Step 4: Connect Scsi Cable Adapter (If Required)
Chapter 1 Prepare Drive for Installation Step 4: Connect SCSI Cable Adapter (if required) The SCSI cable adapter, HP part number 5182-4551 (see Figure 1-8), allows you to connect an Ultra3 SCSI drive to a narrow SCSI cable and narrow SCSI controller (9.10 GB only). -
Page 15: Mount The Drive In The Netserver L Series
2 Mount the Drive in the NetServer L Series This chapter describes the installation of a drive in the NetServer L Series. Step 1: Mount the Drive in the System Use the tray with the drive activity light for mounting a drive in the front of a NetServer. -
Page 16: Step 2: Connect The Drive Activity Light
Chapter 2 Mount the Drive in the NetServer L Series Step 2: Connect the Drive Activity Light The mounting tray (D2198B) has a drive activity light on the front-panel. The drive activity light flashes during data access and the drive power-on self-test. Connect the drive activity light for your drive as shown in Figures 2-2, 2-3, and 2-4. - Page 17 Chapter 2 Mount the Drive in the NetServer L Series S D M W P E E T E S E P D S S P +5V Red Cable Black Cable Drive Activity LED Figure 2-3. Activity Light Connection, Type 2 Drives R L R R E E E E S / D E A A A A S D S S E WS S 3 2 1 0...
-
Page 18: Step 3: Connect The Drive
Chapter 2 Mount the Drive in the NetServer L Series Step 3: Connect the Drive In this step, you install the drive in the system, and connect the SCSI data cable and the drive power cable. The SCSI cable is connected to the SCSI connector on the system board or to a SCSI host bus adapter board. -
Page 19: Step 4: Configure The Drive
Chapter 2 Mount the Drive in the NetServer L Series Record information about the new hard disk setup, including: model number, capacity, and SCSI address. Reassemble your HP NetServer. Connect all the cables and power cords. Power up your HP NetServer. NOTE If a drive recognition error displays during system startup, press Ctrl+Alt+Del to restart the system. -
Page 21: Mount The Drive In The Netserver E 45 Or E 50
3 Mount the Drive in the NetServer E 45 or E 50 This chapter provides instructions for installing a hard disk drive in the HP NetServer E 45 or E 50. Consider the following when installing a drive in an HP NetServer E Series system. - Page 22 Chapter 3 Mount the Drive in the NetServer E 45 or E 50 Power System Board Switch IDE1 IDE2 Available Connector Flexible Disk Controller Engaged Connector SCSI Card 50-pin SCSI Cable PCI 1 IDE CD-ROM Cable Shelf 5 Flexible Disk Shelf 1 Flexible Disk Cable Shelf 6...
-
Page 23: Step 2: Mount The Drive In The System
Chapter 3 Mount the Drive in the NetServer E 45 or E 50 Step 2: Mount the Drive in the System To prepare to install the drive: Turn off your system and the display. Disconnect the power cords. Detach any external cables. Remove the cover from the HP NetServer. -
Page 24: Step 3: Connect The Drive
Chapter 3 Mount the Drive in the NetServer E 45 or E 50 Align the four screw holes in the bottom of the NetServer E 45 tray with the four screw holes in the bottom of the drive. Loosely install all of the screws, then tighten the screws to no more than eight inch-pounds (0.9 Newton-meter). -
Page 25: Step 4: Configure The Drive
Chapter 3 Mount the Drive in the NetServer E 45 or E 50 Record information about the new hard disk setup, including: model number, capacity, and SCSI. Reassemble the HP NetServer. Connect all the cables and power cords. Turn on power to the HP NetServer. Step 4: Configure the Drive Configure the SCSI controller for the drive using the SCSI Select utility. -
Page 27: A Jumper Settings
A Jumper Settings The hard disk drives are shipped without SCSI terminators. These drives are ready to use on a SCSI cable with a built-in active terminator. Each hard disk drive is configured at the factory for optimum performance on most systems. - Page 28 Appendix A Jumper Settings Description Off* Spindle starts immediately after power up. If Delay Spin-Up is on, it overrides this setting. Parity Disable Parity checking and parity error reporting by the drive is disabled. Off* Parity checking and parity error reporting by the drive is enabled.
-
Page 29: B Disk Drive Characteristics
B Disk Drive Characteristics The proper settings for the following items depend on the operating system (NetWare, MS-DOS, OS/2, Windows NT, UNIX, Banyan Vines, Windows 2000, or Linux) and corresponding version number: Extended Translation setting for the controller Partitions, logical drives or divisions for the hot swap hard disk drive For non-UNIX systems, partition and logical hot swap hard disk drive sizes also depend on: Partition type (Bootable or Non-bootable) -
Page 31: C Returning Hp Hard Disk Drives
C Returning HP Hard Disk Drives When returning a drive for service, repair, or replacement, use the packaging supplied with the exchange drive. Foam Antistatic Bag Hard Disk Drive Figure C-1. Drive Repackaging... -
Page 33: D Warranty And Support
D Warranty and Support The hardware warranty below applies to components purchased as accessories. If your component was factory installed as part of an HP NetServer model, refer to the warranty statement provided with your system documentation. Hardware Warranty This HP NetServer accessory is covered by a limited hardware warranty for a period of one year from receipt by the original end-user purchaser. -
Page 35: E Regulatory Information
Supplementary Information: The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC. 1) This product was tested in a typical configuration with a Hewlett-Packard NetServer computer and peripherals. Cupertino, February, 2000 Quality Manager... - Page 37 Index D4910A, 6 D4911A, 5, 6 active termination, 14, 20 adapter, SCSI cable, 10 mounted tray, 11 delay spin-up, 23 Delay Spin-Up, 23 narrow SCSI adapter, 10 disk drive NetServer E 30, 17 configuration, 23 NetServer E 40, 17 drive NetServer E 45, 17 format, 15, 21 logical partition, 15, 21...
- Page 38 Index SCSI host bus adapter, 6, 14, 20 SCSI Select utility, 15, 21 tools, 2 SCSI terminators, 23 setup information, 2 Ultra Wide SCSI connector, 10 shock, 3 start unit command, 24 static electricity, 3 write protect, 24 support, 29 system board, 14, 20 system boot, 15, 21...
