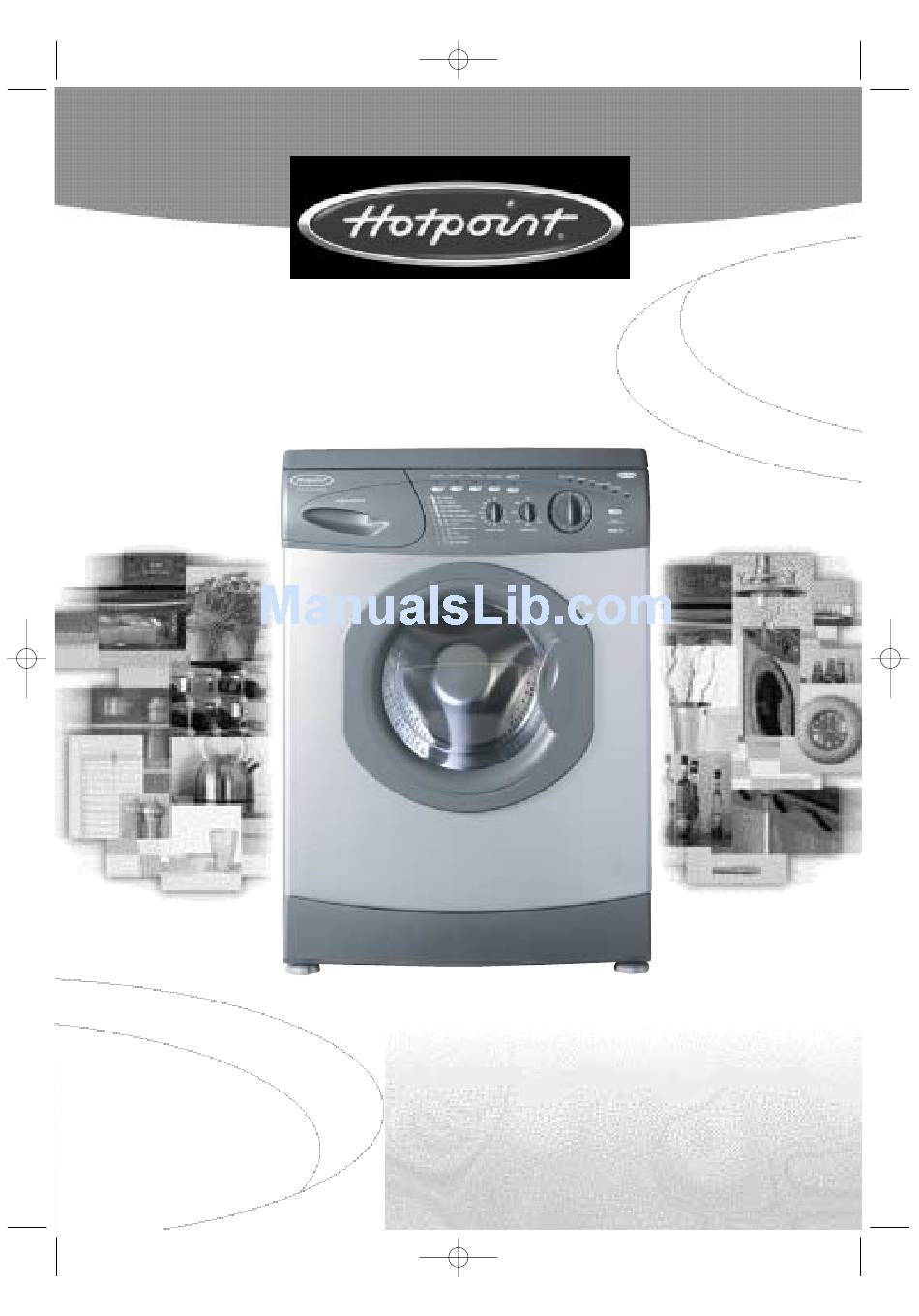

- Page 1 *Vogue aquarius 1666200001-09 04/04/2002 8:55 am Page 1 Installation and User Instructions for the Aquarius Range For everyone you’ll ever be WMA33 WMA32 WMA31 WMA30...

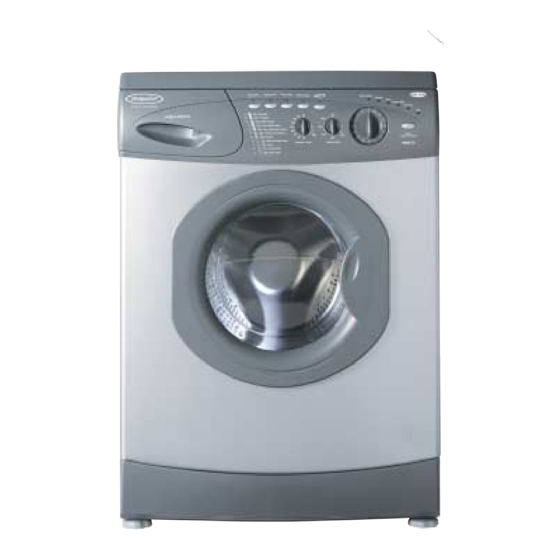

- Page 2 *Vogue aquarius 1666200001-09 Congratulations on choosing Model WMA 33 Model WMA 32 Model WMA33 Model WMA33 shows the maximum features available on an Aquarius washing machine. Control Dispenser drawer panel Adjustable feet 04/04/2002 8:55 am Page 2 Aquarius!! Model WMA 31 Please record the Model number and the Serial number of your machine on the Back Cover of the book for future reference.
-
Page 3: Troubleshooting
*Vogue aquarius 1666200001-09 The following instructions and information will help you to get the most out of your new machine... Safety first! This instruction manual contains important details on using your machine safely. If you pass the machine onto someone else, make sure that you give them this manual. - Page 4 *Vogue aquarius 1666200001-09 This instruction manual contains important details on using your machine safely. Please keep it safe for your future reference. If you pass the machine onto someone else, please make sure that you give them this manual so that the new owner can read these safety warnings. Dispose of packaging materials carefully and keep them well away...
-
Page 5: Installing
*Vogue aquarius 1666200001-09 Remove the polystyrene block... After removing the packaging from the machine, make sure that the polystyrene block (figure 1) has come away from the underside of the machine, with the polystyrene base. If it has not come away, carefully lower the machine on its side onto the polystyrene top cap and then remove the polystyrene block (see figure 2). - Page 6 *Vogue aquarius 1666200001-09 2. Remove the transit fixings... There are two transit bolts fitted under plastic covers, one at either side of the rear of your machine. These bolts prevent damage to the machine while it is being transported. Remove both transit bolts complete with spacers, by following the instructions below.
- Page 7 Changing the mains lead If you have damaged the existing lead and need a new one, contact Hotpoint Service UK on 08709 066066 or www.theservicecentre.co.uk (or in the Republic of Ireland on 1850 302 200). A charge will be made. We strongly advise that fitting the new lead is carried out by a qualified electrician.
-
Page 8: Connect To Water Supply
(see figure 2). A cold fill adaptor (figure 3) and fitting instructions are available from your local Hotpoint authorised Service Centre or by calling the Genuine Parts and Accessories Mail Order Hotline UK on 08709 077 077 or www.theservicecentre.co.uk... - Page 9 *Vogue aquarius 1666200001-09 5.Connect the machine to a drainage system... Do not remove the hooked end support from the GREY drainage hose when using any of the drainage methods detailed below. You may need to reposition it as required along the drainage hose.
- Page 10 *Vogue aquarius 1666200001-09 6. Move the machine into position... Your machine is heavy so care must be taken when moving it. To help you we have fitted wheels to the bottom rear of WARNING: the machine. Do not drag or lift the machine by it’s door.
-
Page 11: Using Your Machine
*Vogue aquarius 1666200001-09 Using your machine The rest of this instruction book will help you to make the most of your new washing machine. We have created the machine for the way you live, by listening to people just like you who use our products. You will find that your new machine has many useful features and is easy to use. -
Page 12: Typical Wash Programme
*Vogue aquarius 1666200001-09 A typical wash programme WARNINGS: Do not allow children to play with the machine or tamper with the controls. Do not overload the machine! It may damage laundry and reduce the quality of the wash. Do not try to open the door when the door indicator light... -
Page 13: Choose Suitable Detergent
*Vogue aquarius 1666200001-09 IMPORTANT INFORMATION. We have set the detergent retaining flap, in the main detergent compartment to dispense powder detergent only. If you want to dispense liquid detergent put the retaining flap in its ‘down’ position. Drawer release latch Prewash detergent compartment. - Page 14 *Vogue aquarius 1666200001-09 WARNING: Do not put any item(s) into the drawer other than detergents that are designed to be released from the drawer as they may cause damage or blockage. 04/04/2002 8:58 am Page 14 Dispensing powder detergent To achieve the best wash results the manufacturer’s recommended amount of detergent should be measured and added to the dispenser drawer (max.
-
Page 15: Wash Programmes
*Vogue aquarius 1666200001-09 Wash programmes On-Off / Selecting a programme The machine is switched on, by turning the programme selector dial away from the ‘OFF’ position, to your selected programme. To start the programme press and release the ‘START/Hold To Reset’ button. When the programme has finished return the programme selector dial to the ‘OFF’... -
Page 16: Wash Programme Dial
*Vogue aquarius 1666200001-09 Wash programme dial Turn from ‘OFF’ to the programme you need. Wash Programme label Automatic Pre-wash and Wash Programmes White cotton Heavy soil Cotton heavy soil Wash Programmes White cotton and linen without special finishes Colourfast cotton linen or viscose without special finishes Non-colourfast cotton,... -
Page 17: Options
Gentle action... this option ... Reduces wash action and spin speed for delicate clothes. This does not apply to cotton or wool programmes. (not available with WMA30) One... use this option for... Washing a single item of clothing, for example, one pair of jeans. -
Page 18: Automatic Features
*Vogue aquarius 1666200001-09 Automatic Features Auto half load Auto half load saves you time and money when washing smaller loads. Water levels are automatically adjusted to cater for the different loads. Unbalanced load warning Your machine has an inbuilt feature to prevent it spinning with an unbalanced load. This will minimise vibration and prolong the life of the machine. -
Page 19: Cleaning And Maintenance
*Vogue aquarius 1666200001-09 Cleaning and maintenance Removing and cleaning the dispenser drawer and WARNINGS: compartments Do not clean any part of Note: You should clean the dispenser your machine drawer regularly. with abrasive cleaners, scouring agents, acids, chlorine based bleach or metal polish as they may cause damage. -
Page 20: Troubleshooting
*Vogue aquarius 1666200001-09 Troubleshooting... In the unlikely event that you have problems with your machine, the following guide may help you to get your machine working correctly straight away. .. The machine will not start... Close the door. Check that the machine has power. - Page 21 Check that the hoses are fitted correctly: GREY to HOT If the machine is still not working contact Hotpoint Service, see the back page. Remember, you may be charged for a service call if a problem with your machine is caused by incorrect installation or misuse.
-
Page 22: Hotpoint Guarantee
Recycling & Disposal Information As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use quality recycled components to keep down customer costs and minimise material wastage. Please dispose of packaging and old appliances carefully. To minimise risk of injury to children, remove the door, plug and cut mains cable off flush with the appliance. -
Page 23: After Sales Service
“No company is better positioned to offer an after sales service on a Hotpoint appliance than us - the manufacturer” As part of our commitment to you, all Hotpoint appliances have the added benefit of a fully inclusive parts and labour guarantee for the first 12 months. In addition to this you also have the advantage of free replacement parts for the first 5 years when fitted by a Hotpoint engineer. -
Page 24: Key Contacts
Genuine Parts and Accessories (Open 8-30 to 5-30 Mon - Fri & 8-30 to 12 Sat) Hotpoint Appliance Information (Open 8 to 8 Mon - Fri, 9 to 5 Sat & 10 to 5 Sun) General Domestic Appliances Limited, Morley Way, Peterborough, PE2 9JB.
