Infinity Total Solutions TSS-750 Owner's Manual
  1. Manuals
  2. Brands
  3. Infinity Manuals
  4. Speaker System
  5. Total Solutions TSS-750
  6. Owner's manual

Infinity Total Solutions TSS-750 Owner's Manual

230v
Hide thumbs Also See for Total Solutions TSS-750:
Table of Contents

Advertisement

Quick Links

T
S
S
OTAL
PEAKER
OLUTIONS
TSS-750
Owner's Guide
(230V)

Advertisement

Table of Contents
loading

Related Manuals for Infinity Total Solutions TSS-750

Summary of Contents for Infinity Total Solutions TSS-750

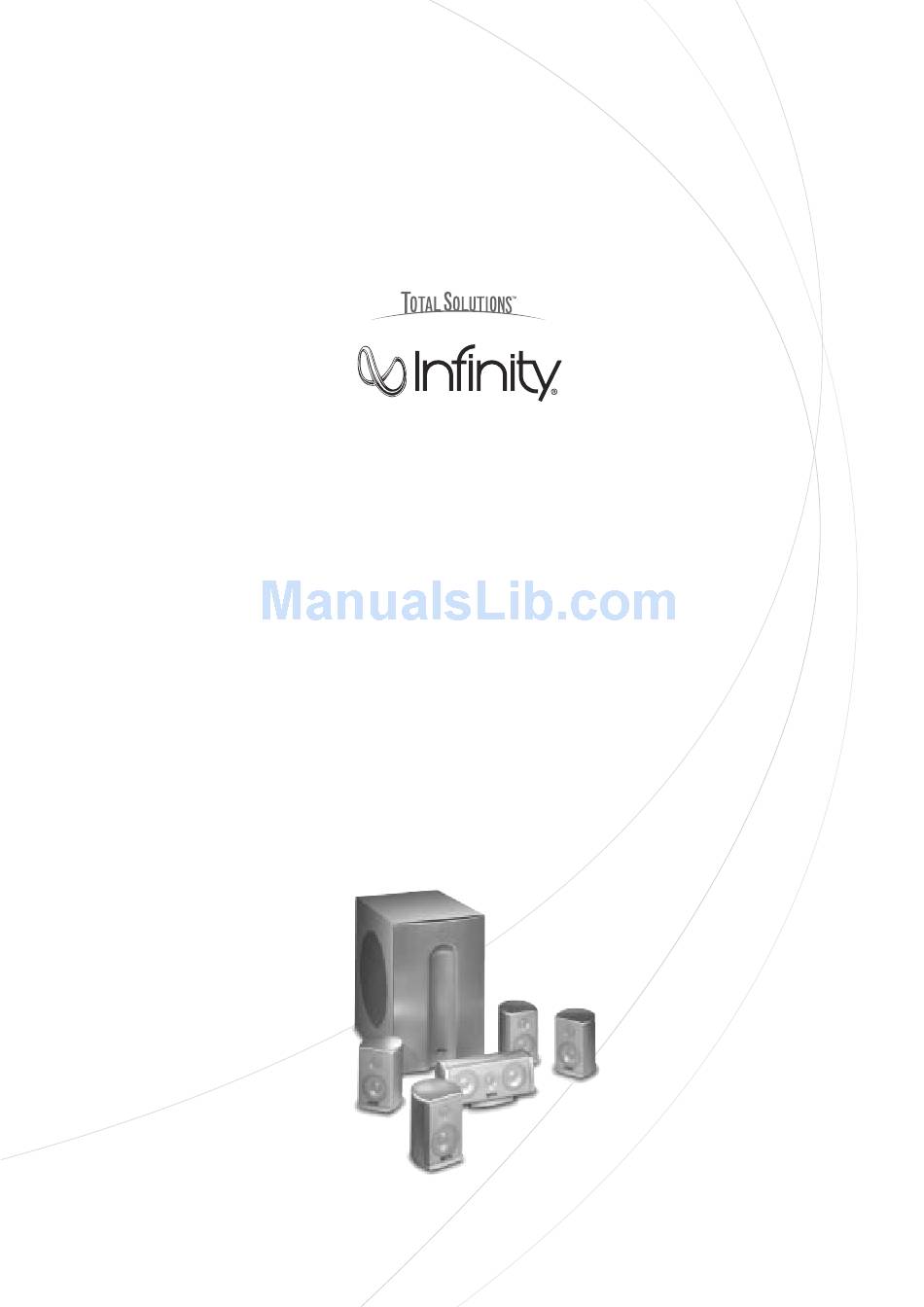

  • Page 1 OTAL PEAKER OLUTIONS TSS-750 Owner’s Guide (230V)

  • Page 2: Important Safety Precautions

    If placed near an 17. Object and Liquid Entry. Never push objects of amplifier, check with the manufacturer for applicability. any kind into this product through openings, as they servicing to qualified service personnel. TSS-750...
  • Page 3 TSS-750 O WNER ’ S UIDE Table of Contents Important Safety Precautions Introduction Unpacking the System Planning Your System Placement Wall-Mounting the Satellites Center and Satellite Speaker Connections Subwoofer Controls Subwoofer Connections Operation Maintenance and Service Specifications TSS-750...

  • Page 4: Planning Your System

    YSTEM Infinity Total Solutions Before deciding where to best place your speakers, survey your room and study Figures 1 and 2. Infinity Total Solutions continues Infinity’s longstanding commitment to accurate sound reproduction. Our proprietary Metal Matrix Diaphragm (MMD ™ ) drivers, precision dividing networks and...

  • Page 5: Wall -Mounting The Satellites

    LACEMENT NOTE: The satellite speakers can be placed directly on a shelf, The TSS-750 satellites are designed to be mounted on the wall. There is a wall bracket for each satellite speaker. or mounted on a wall using the wall brackets included.

  • Page 6: Satellite Speaker Connections

    Figure 5.The satellites and center channel speaker feature terminals that can be connected in several different ways; e.g., spade terminals and direct wiring (as shown here). – Figure 4. Wiring diagram shows polarity connections for one channel of a home theater system. TSS-750...

  • Page 7: Rear Panel

    WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. AVERTISSEMENT: POUR PRÉVENIR LES RISQUES D’INCENDIE OU DE CHOC ÉLECTRIQUE, ÉVITER D’EXPOSER CET APPAREIL A LA PLUIE OU A L’HUMIDITÉ. TSS-750...
  • Page 8 150Hz LINE LEVEL IN Set NORMAL/LFE switch to “NORMAL. ” For LFE use L or R NOTE: If your receiver/processor has only one sub out, you may use either the L or R input. Set NORMAL/LFE switch to “LFE.” TSS-750...

  • Page 9: Operation

    PERATION Surround Modes Crossover Adjustment When using the TSS-750 in a Dolby Pro Logic* home theater The Crossover Frequency Control determines the highest system, make sure the receiver’s center channel mode is set to frequency at which the subwoofer reproduces sounds. For the “Normal.”...

  • Page 10: Specifications

    (16-1/2" x 10-3/4" x 15-3/4") Weight: 12.7kg (28 lb) Infinity continually strives to update and improve existing products, as well as create new ones.The specifications and construction details in this and related Infinity publications are therefore subject to change without notice. TSS-750...
  • Page 11 OTES TSS-750...
  • Page 12 Infinity Systems, 250 Crossways Park Drive, Woodbury, NY 11797 USA 800.553.3332 (USA only) www.infinitysystems.com * Trademarks of Dolby Laboratories. DTS is a registered trademark of Digital Theater Systems, Inc. Infinity is a registered trademark, and MMD is a trademark, of Harman International Industries, Incorporated.

Table of Contents
