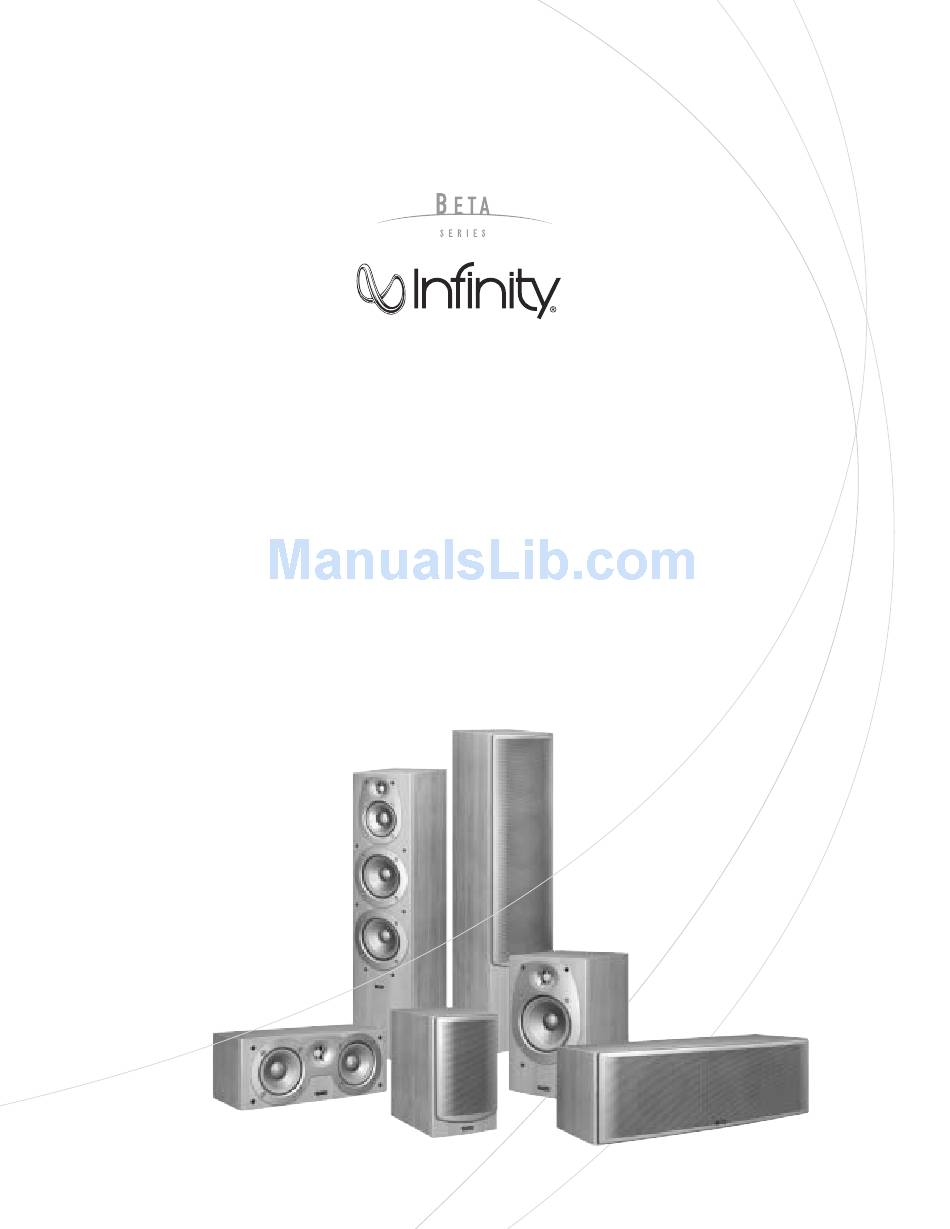

- Page 1 NFINITY ™ PEAKER YSTEMS Owner’s Guide Beta 10 Beta 20 Beta 40 Beta 50 Beta C250 Beta C360...
-
Page 2: Unpacking The Speakers
Home Theater NFINITY ERIES For front-channel use, place one speaker on the left and another on the The Infinity Beta Series of loudspeakers continues Infinity’s longstanding ™ right, along either side of the television monitor. Since the speakers are commitment to accurate sound reproduction. Our patented Ceramic magnetically shielded, you can place them near the TV without worrying Metal Matrix Diaphragm (CMMD ™... -
Page 3: Installing Feet
NSTALLING Beta 40 and Beta 50 These models feature four rubber feet that enable them to be placed on a smooth-surfaced floor, such as tile or hardwood. Four metal spikes are supplied for use when the speaker is to be placed on a carpeted surface to decouple the speaker from the floor and prevent unwanted damping.To insert the spikes, gently lay the speaker on its side (not its front or back) on a soft, nonabrasive surface. - Page 4 Beta 40 and Beta 50 IRING THE YSTEM IMPORTANT: Make sure all equipment is turned off before making any connections. For speaker connections, use a high-quality speaker wire with polarity coding.The side of the wire with a ridge or other coding is usually considered positive polarity (i.e., +).
-
Page 5: Final Adjustments
INAL DJUSTMENTS IRING Check the speakers for playback, first by setting the system volume control The outer connection panel and internal dividing network of the Beta 40 to a minimum level, and then by applying power to your audio system. Play and Beta 50 are designed so that separate sets of speaker cables can a favorite music or video segment and increase the system volume control be attached to the low-frequency transducer and midrange/high-... -
Page 6: Specifications
PECIFICATIONS Beta 10 Beta 20 Beta 40 Frequency Ranges: 60Hz – 20kHz (±3dB) 58Hz – 20kHz (±3dB) 45Hz – 20kHz (±3dB) 55Hz – 40kHz ( – 6dB) 52Hz – 40kHz ( – 6dB) 40Hz – 40kHz ( – 6dB) Recommended Amplifier Power Range: 10 –... - Page 7 OTES Declaration of Conformity We, Harman Consumer International 2, route de Tours 72500 Chateau-du-Loir France declare in own responsibility that the products described in this owner’s manual are in compliance with technical standards: EN 50081-1:1992 EN 50082-1:1997 Robin Marshall Harman Consumer International Chateau-du-Loir, France 11/03 BETA SPEAKER SYSTEMS...
- Page 8 © 2003 Harman International Industries, Incorporated Infinity Systems, 250 Crossways Park Drive, Woodbury, NY 11797 USA 516.674.4INF (4463) www.infinitysystems.com Infinity is a registered trademark, and Infinity Beta and CMMD (patent nos. 6,327,372 and 6,404,897) are trademarks, of Harman International Industries, Incorporated. Part No.TK 11/03...
