Viessmann VITODENS 200-W WB2B Start-Up/Service Instructions
  1. Manuals
  2. Brands
  3. Viessmann Manuals
  4. Boiler
  5. Vitodens 200-W WB2B Series
  6. Start-up/service instructions

Viessmann VITODENS 200-W WB2B Start-Up/Service Instructions

Wb2b series wall-mounted, natural gas-fired condensing boiler, for operation with natural gas heating input 104 to 370 mbh & 30 to 108 kw
Hide thumbs Also See for VITODENS 200-W WB2B:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual , Technical Data Manual

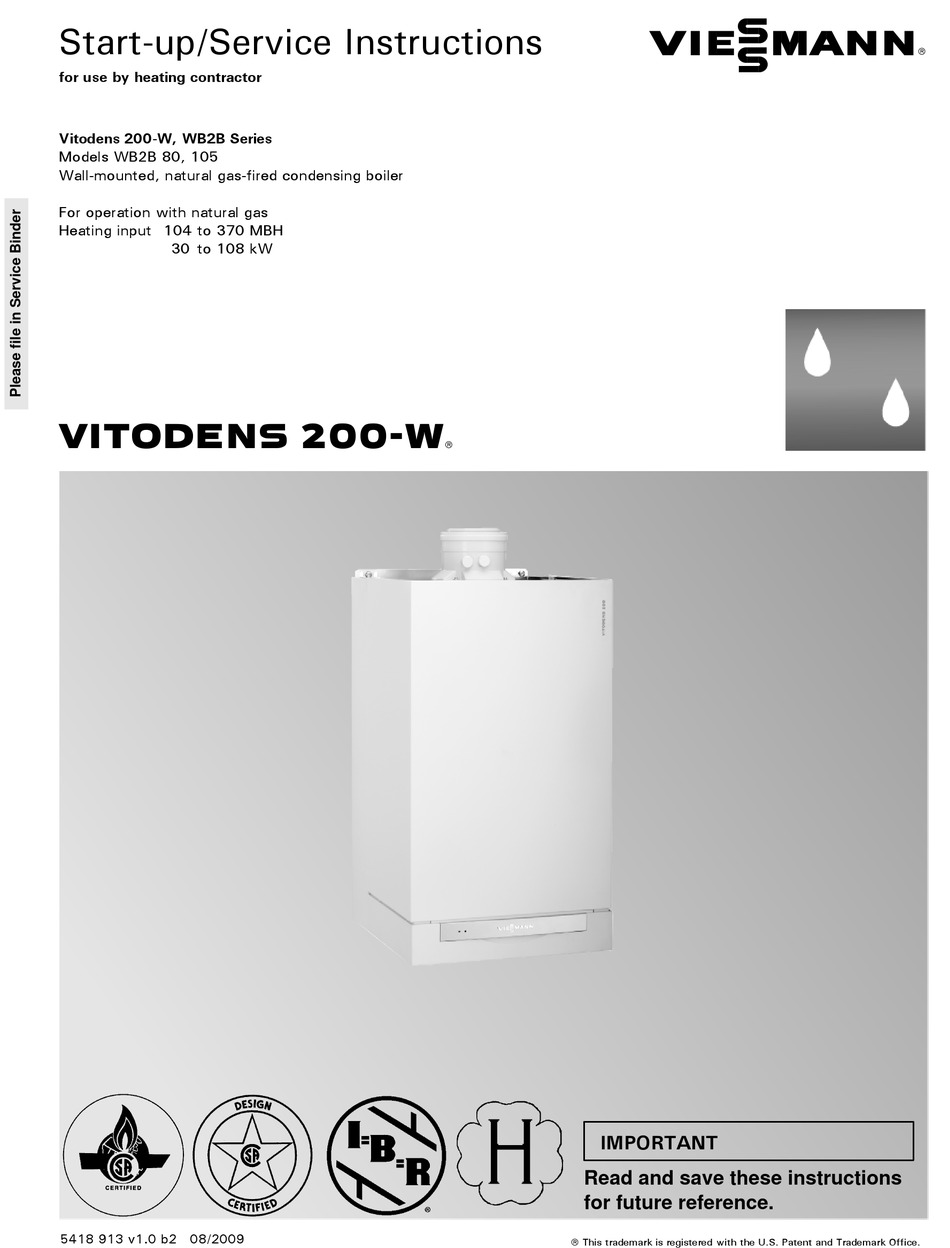

Start-up/Service Instructions
for use by heating contractor
Vitodens 200-W, WB2B Series
Models WB2B 80, 105
Wall-mounted, natural gas-fired condensing boiler
For operation with natural gas
Heating input 104 to 370 MBH
30 to 108 kW
VITODENS 200-W
5418 913 v1.0 b2 08/2009
IMPORTANT
Read and save these instructions
for future reference.
 This trademark is registered with the U.S. Patent and Trademark Office.
