Viessmann Vitodens 200-W Series Installation Instructions Manual

Viessmann Vitodens 200-W Series Installation Instructions Manual

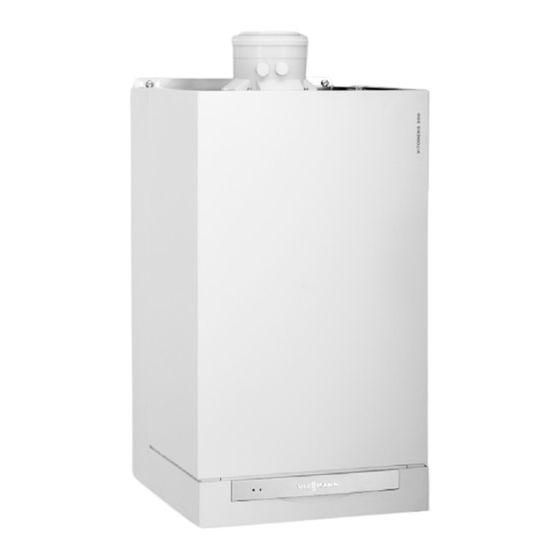

Models 80, 105 wall-mounted, gas-fired condensing boiler
Hide thumbs Also See for Vitodens 200-W Series:
Table of Contents

Advertisement

Quick Links

See also: Technician Manual , Instruction and Installation Manual

Installation Instructions

for use by heating contractor
Vitodens 200-W, WB2B Series
Models 80, 105
Wall-mounted, gas-fired condensing boiler
For natural gas only
Heating input
104 to 370 MBH
30 to 108 kW
VITODENS 200-W
5418 910 v1.0 b1 08/2009
IMPORTANT
Read and save these instructions
for future reference.
 This trademark is registered with the U.S. Patent and Trademark Office.
