PGXG-61B / PGWX-61B / PGWU-61B
User manual

Advertisement

Table of Contents
loading

Related Manuals for Barco PGXG-61B

Summary of Contents for Barco PGXG-61B

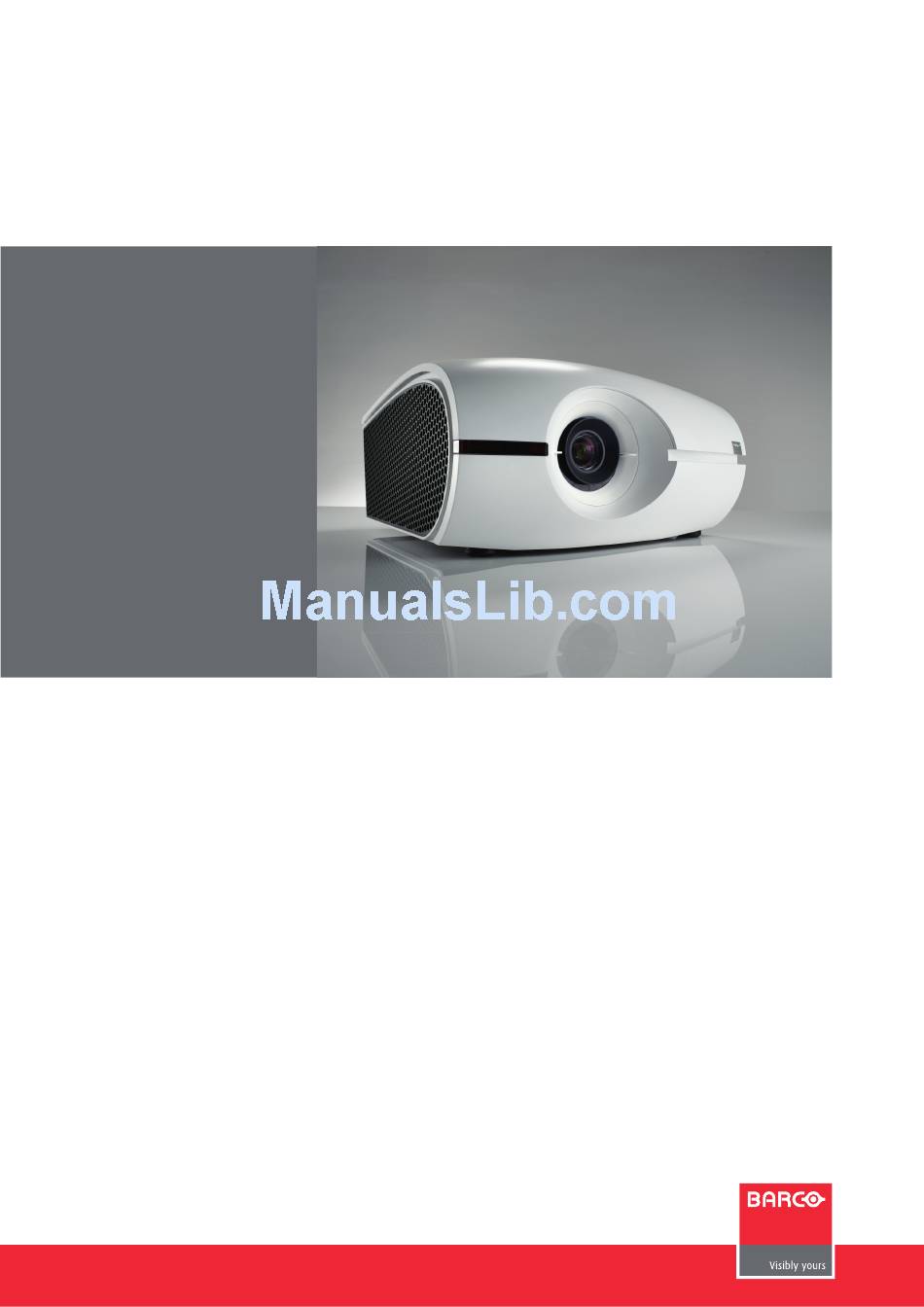

  • Page 1 PGXG-61B / PGWX-61B / PGWU-61B User manual...
  • Page 2 Doc. Revision: 01 Barco nv Projection Division Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.89.70 Fax: +32 56.36.88.24 Support: www.barco.com/esupport Visit us at the web: www.barco.com...
  • Page 3 All other claims, in particular those relating to compensation for direct or indirect damage, and also damage attributed to the operation of software as well as to other services provided by Barco, being a component of the system or inde- pendent service, will be deemed invalid provided the damage is not proven to be attributed to the absence of properties guaranteed in writing or due to the intent or gross negligence or part of Barco.

  • Page 5: Table Of Contents

    6.1 Replacing the Lamp ............................... 42 6.2 Replacing the Air Filter ..............................43 6.3 Replacing the Lens ................................ 44 7. SPECIFICATIONS ................................45 7.1 PGXG-61B ..................................45 7.2 PGWX-61B ..................................47 7.3 PGWU-61B ..................................49 7.4 Dimensions ..................................51 7.5 Compatibility Modes ..............................52 8.

  • Page 6: Safety

    General safety instructions Before operating this equipment please read this manual thoroughly and retain it for future reference. Installation and preliminary adjustments should be performed by qualified Barco personnel or by authorized Barco service dealers. All warnings on the projector and in the documentation manuals should be adhered to.

  • Page 7: Important Safety Instructions

    The part number and serial number are printed on a label which is stuck on the respective part. Record these num- bers in the spaces provided below. Refer to them whenever you call upon your Barco dealer regarding this product.
  • Page 8 - Replace the lamp module before the end of its operational life. - Promptly ventilate the room after a lamp rupture, explosion has occurred, evacuate the room (particularly in case of a pregnant woman). - Seek PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...
  • Page 9 Never expose the projector to rain or moisture. In the event of fire, use sand, CO2 or dry powder fire extinguish- ers. Never use water on an electrical fire. Always have service performed on this projector by authorized Barco service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.
  • Page 10 Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards.
  • Page 11 Replace only with the same or equivalent type recommended by the manufacturer. (AAA LR03,1.5V) For disposal of used batteries, always consult federal, state, local and provincial hazardous waste disposal rules and regulations to ensure proper disposal. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 12: Introduction

    Installation requirements Projector package overview Note: Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guarantee. Observing the specification mentioned in this chapter is critical for projector performance. Neglect- ing this can result in loss of warranty.

  • Page 13: Projector Package Overview

    This projector comes with all the items shown below. Check to make sure your package is complete. Contact your dealer immediately if anything is missing. Remote Control with two AAA size User Guide, Quick Start Projector batteries Guide, Safety Manual Power Cord (China) Power Cord (EU) Power Cord (US) PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 14: Product Overview

    2.3.1 Main Unit Component Location Projection Lens Lamp Cover Tilt-Adjustment Feet Input/Output (I/O) Panel Power Switch Power Socket (AC Input: AC100-240V~, 50-60Hz) Note: The Projection Lens is optional item not a standard accessary in the package. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 15: Input/Output (I/O) Panel

    Component Location Networking Connector RJ45 DVI-D Input ConnectorVideo Input Connector BNC Input Connector (YPbPr/RGBHV) +12V Relay Connector Video Input Connector HDMI Connector VGA Connector (PC Analog Signal/Component Video Input) Monitor Connector (Loop from VGA) RS232 Connector PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 16: Remote Control

    Select and return to previous menu Press “OK” Return to previous menu without selecting Press “Home” Clear OSD Lite of screen Press “Home” Press any key to deactivate Activate electronic dowser press 2x “Arrow keys” the electronic dowser. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 17: Installation

    If the infrared receiver is exposed to fluorescent lamp or strong sunlight, the remote control may not operate normally. Refer to the regulations enforced by your local government on the disposal of used batteries; improper disposal could damage the environment. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 18: Installing The Lens

    Put the lens ring cover back to its place. Push rubber fingers over lens edge. To replace the lens module, reverse the previous steps. Lens cap should be removed before installing. If not it will damage the projector. Caution: Do not transport the projector with any lens installed. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 19: Connecting The Projector

    1.28X 1.25X 1.25X 1.9X 3.3 Connecting the Projector 3.3.1 Removing the rear cover Procedure Unscrew the three crews on the cover. Lift up and remove the cover. To install the rear cover, reverse the previous steps. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 20: Connecting To A Computer Or Laptop

    3. Installation 3.3.2 Connecting to a Computer or Laptop Wiring Diagram Network Port +12V Relay Output Power Cord HDMI Cable 12V DC Jack Network Cable RS232 Cable VGA out Cable VGA in Cable PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 21: Connecting To Video Sources

    3. Installation 3.3.3 Connecting to Video Sources Wiring Diagram DVD Player, Set-top Box, HDTV Receiver Video Output +12V Relay Output Power Cord DVI-D Cable 12V DC Jack HDMI Cable BNC Cable Composite Video Cable PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 22: Powering On/Off The Projector

    ” key of the remote, a message displays on the projector’s screen. Press “ ” key again to confirm, otherwise the message disappears after 5 seconds. CAUTION: Don’t turn on the projector immediately after entering Standby mode. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 23: Adjusting The Projected Image

    V: the vertical image offset range when lens is centered. H1: the horizontal image offset range when lens is at +/-100% vertical offset. V1: the vertical image offset range when lens is when lens is at +/-28% horizontal offset. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...
  • Page 24 3. Installation Vertical Image Offset: +/-100% +100% 100% Lens Center 100% 110% -100% +28% Horizontal Image Offset: +/-28% Lens Center -28% 100% 100% +28% PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 25: Ceiling Mount Installation

    3.6 Ceiling Mount Installation Requirements: Ensure the screws used to attach a mount to the projector meet the following specifications: Screw type: M6*10 Mounting dimension 216.20 241.20 Mounting Holes Note: Damage resulting from incorrect installation will void the warranty. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 26: User Controls

    Hotkey / Short Cut Remote Lite -> OSD Lite Remote Command (Result) (Action -> On Screen) To quick adjust a blurry screen > > To mute picture on the projector > Unmute picture on the projector Press any key PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...
  • Page 27 > Select lamp mode (default setting = NOR- > MAL) > Show projector info Press the sequential key : LEFT > LEFT > RIGHT > Enter advanced menu > > DOWN buttons to enter advanced menu. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 28: Using The Advanced Osd Menus

    Select the next item that you want to adjust in the submenu and adjust it as described above. When each item is adjusted, the projector saves the new setting. Press HOME to return to the previous menu. To exit the OSD menu, press HOME again. Advanced Button Submenu Setting Another Submenu Advanced OSD PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 29: Input Menu

    On: Set “On” to turn 3D settings on for 3D images. Compatible 3D source, 3D content and active shutter glasses are required for 3D viewing. 3D Invert (off & on) Off: Default value. On: Set 3D invert “On” to invert left and right frame contents. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 30: Image Menu

    Adjust the tint (color balance between red and green) of the image. Press the ◄ to increase the amount of green in the image. Press the ► to increase the amount of red in the image. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 31: Noise Reduction

    Presentation: This preset provides the best possible image for presentation and computer graphics. Video: This preset provides the best possible image for video sources (DVD, TV, etc.) Turn on the DA function to activate the dynamic contrast. Off: Default value. On: Set DA on. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 32: Layout Menu

    Note: The ripple picture symptom (a bit vibrated behavior) occurred at main picture under 480i, 576i & 1080i while PIP mode activate, is a bandwidth limitation. Off: Default value. The PIP function is disabled and only main window is visible. On: The PIP image is on top of the main image. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 33: Lamps Menu

    Set lamp power level of the projector. Note: Power function will not be available if you have set the lamp to Eco or Normal modes. Press the ◄ to decrease the power level. Press the ► to increase the power level. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 34: Alignment Menu

    Green Weighting of Red Blue Weighting of Red Green Weighting of Green Red Weighting of Green Blue Weighting of Green Blue Weighting of Blue Red Weighting of Blue Green Weighting of Blue Red Weighting of White PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...
  • Page 35 Reset to default: Resets all color points to default value. Enable Off: Default value. On: CCN enable. Auto Test Pattern Off: Set auto test pattern off On: Default value. Lens to Midposition Set the lens in the center/on axis position. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 36: Control Menu

    Bottom right Auto Source Automatic source searching. On: Default value. Automatic source searching is enabled. Off: Automatic source searching is disabled. Language Select the language to display the OSD Menu. English German French Spanish Simplified Chinese Japanese PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 37: Service Menu

    Sync on Green: Sync on green channel. Composite: S ync embedded in video signal. Color Space Display current color space. Lamp Runtime Display the current lamp runtime. Lamp Hour Reset Reset the hours for lamp to zero. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 38: Factory Reset

    4. User Controls Projector Runtime Display the projector’s total operating hours. Factory Reset Set all persistent settings back to default values. This function will not apply to items including No Signal, Network, Language, Lamp Hours and Projector Hours. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 39: Troubleshooting

    If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector. The recommended resolution per projector is the native resolution so PGXG-61B 1024×768, PGWX-61B 1280×800 and PGWU-61B 1920×1200. The screen of the Notebook or PowerBook computer is not displaying your presentation If you are using a Notebook PC Some Notebook PCs may deactivate their own screens when a second display device is in use.

  • Page 40: Led Indication Chart

    When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. 5.2 LED Indication Chart Status LED 1 sec 1 sec 1 sec 1 sec 1 sec Off/STBY Error During Start-up PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 41: Warning Message

    When you see the warning message, it means the filter is failed to operate. Overheating: When you see the warning message, it means the tem- perature is over operational temperature. Note: Please contact service people when you see those warning messages! PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 42: Maintenance & Service

    Lift up the lamp handle and remove the lamp module slowly and carefully. To replace the lamp module, reverse the previous steps. Turn on the projector and use “Lamp Hour Reset” after the lamp module is replaced. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 43: Replacing The Air Filter

    Clean or replace the air filter. To install the air filter, reverse the previous steps. Note: We recommends cleaning the Air filter every three months; clean it more often if the projector is used in a dusty environment. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 44: Replacing The Lens

    Lens cap should be removed before installing. If not it will damage the projector. Caution: Do not transport the projector with any lens installed. Note: Please verify that all the plastic caps removed from the lens prior inserting in the projector. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 45: Specifications

    Lamps 1 x 465W Ushio Lamp lifetime (ECO/Bright) 2000/1500 Transport with lamp Sealed DLP™ core Sealing between TIR prism and DMD (*) Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...
  • Page 46 CB test certificate, US emc, US safety, CE emc and safety, CCC emc Certifications and safety" Warranty 3 years standard warranty** (**) Warranty and service conditions can differ from region to region. Contact your local sales or service representative for more details. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 47: Pgwx-61B

    Sealing between TIR prism and DMD Optical dowser Advance Picture in Picture Orientation table - ceiling WARP Integrated web server Yes, TI DLP-Link (*) Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...
  • Page 48 CB test certificate, US emc, US safety, CE emc and safety, CCC emc Certifications and safety" Warranty 3 years standard warranty** (**) Warranty and service conditions can differ from region to region. Contact your local sales or service representative for more details. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 49: Pgwu-61B

    Sealed DLP™ core Sealing between TIR prism and DMD Optical dowser Advance Picture in Picture Orientation table - ceiling WARP Integrated web server (*) Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...
  • Page 50 CB test certificate, US emc, US safety, CE emc and safety, CCC emc Certifications and safety" Warranty 3 years standard warranty** (**) Warranty and service conditions can differ from region to region. Contact your local sales or service representative for more details. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 51: Dimensions

    Be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate. Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector. Avoid installing the projector near a heat source. PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 52: Compatibility Modes

    ○ ○ 1280×1024 ○ ○ SXGA 1280×1024 ○ ○ 1280×1024 91.1 ○ SXGA+ 1400×1050 ○ ○ UXGA 1600×1200 ○ ○ 1920×1080 ○ ○ HD1080 1920×1080 ○ ○ 1920×1080 Only support ○ ○ WUXGA 1920×1200 [RB] timing PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...
  • Page 53 3D Timing - 120 Hz Frame Sequential Frame Rate in Hz Line Rate in KHz Input Source Resolution Pixel Clock in MHz (Vertical Frequency) (Horizontal Frequency) SVGA (800×600) 119.63 76.92 83.725 XGA (1024×768) 120.13 98.87 139.276 720p (1280×720) 120.31 92.88 161.997 PGXG-61B/PGWX-61B/PGWU-61B - - 2014/02/12...

  • Page 54: Environmental Information

    Mercury Notice “Lamp(s) contain Mercury, Lamp(s) Contain Mercury. This Barco product consists of materials that may contain mercury, which must be Dispose According to Dispose Properly.” recycled or disposed of in accordance with local, state, or country laws: Local, State, Federal Law.
  • Page 55 ╳： Indicates the hazardous and toxic substance content of the part is over the threshold defined by the SJ/ T11364-2006 standard. In all cases where an X is shown, Barco uses an allowable exemption per EU RoHS. ╳： 表明该部件所含有害和有毒物质含量高于 SJ/T11364-2006 标准定义的阈值。对于所有显示为“X”的情况，Barco 按照...
  • Page 56 Production Address No.20, 3rd Ave, Kunshan Free Trade Zone, Jiangsu, P.R. China...
