Related Manuals for Hoover WindTunnel Self-Propelled WindTunnel Bagless with Powered Hand Tool
Summary of Contents for Hoover WindTunnel Self-Propelled WindTunnel Bagless with Powered Hand Tool

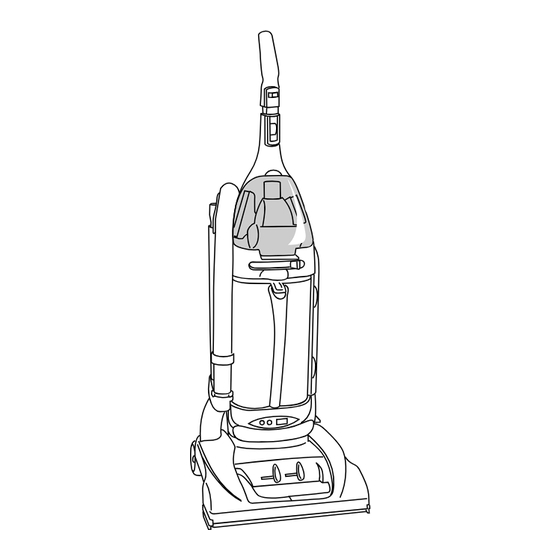

- Page 1 This product was designed for easy Assembly (See page 3) Self-Propelled WindTunnel Bagless with Powered Hand Tool by HOOVER ™ ® www.hoover.com...
-
Page 2: Table Of Contents
• Do not use outdoors or on wet surfaces. • Close supervision is necessary when any appliance is used by or near children. Do not allow vacuum cleaner to be used as a toy or to run unattended at any time. -
Page 3: Assembling Cleaner
This cleaner was inspected and packaged carefully before being shipped from the factory. If you should happen to need assistance during assembly or operation, Visit us online at www.hoover.com to find the service outlet nearest you (click on the “Service” button) OR Call 1-800-944-9200 for an automated referral of authorized service outlet locations (U.S. -
Page 4: How To Use
NOTE: Hose must be co 2. How to use Cleaner description Operate cleaner only at voltage specified on data plate on bottom of cleaner. This cleaner is intended for household use. ON-OFF Switch Plug cord into electrical outlet. To turn cleaner ON, push switch (A) up. To turn cleaner OFF, push switch down. -
Page 5: Embedded Dirt Finder
Carrying cleaner The cleaner can be lifted by using the carrying handle on the back of the cleaner. Embedded Dirt FINDER feature (available on some models) With red and green lights (C), the ‘Dirt FINDER’ system alerts the user to areas of carpet that may need more cleaning attention. -
Page 6: Edge Cleaning
2-10 AUTOMATIC BRUSH ROLL Automatic brush roll indicator (some models) When red is in the OFF window, brush roll is STOPPED. When red is in the ON window, brush roll is ROTATING. 2-13 Stair Cleaning Use the hose and powered hand tool or furniture nozzle for stair cleaning. -
Page 7: Emptying Cup
The extra reach hose provides a 20 foot reach to allow easier cleaning of stairs and hard-to-reach high places. To attach hose to your vacuum cleaner, follow the instructions below. 2-18 Turn cleaner OFF before disconnect- ing and connecting hose. -
Page 8: Cleaning Filters
To remove loose dirt from the HEPA filter, turn knob (G) on top of dirt cup lid at least one complete turn. The dirt cup lid is designed with a “breakaway” feature which allows it to snap free if it is pushed open too far. To reattach, align hinges of lid with slots in handle area of dirt cup. -
Page 9: Replacing Headlight
Do not operate cleaner without the fil- ter in place. Headlight replacement What to buy This cleaner uses a 12 volt, wedge base type 912 bulb, Hoover part No. 27313101. 3-15 Removing lens Disconnect cleaner from electrical outlet. Using a screwdriver, remove the two screws as shown and lift off lens. -
Page 10: Replacing Belts
What to buy To assure effective operation, use only genuine HOOVER belts with your cleaner. When purchasing a new belt, ask for flat belt Hoover belt part no. 38528035 (belt package part no. 40201170). Replacing flat belt Disconnect cleaner from electrical outlet. -
Page 11: Replacing Brush Roll
To remove V-belt, slide back of belt over pulley (C). Then firmly pull on belt and “snap” it out. Discard used belt. Replace with Hoover belt part no. 38528034 (belt package part no. 40201200). To install new belt (with lettering on out-... - Page 12 Pivot bottom plate down and snap closed. Replacing belt When replacing belt, ask for HOOVER part No. 38528037. 1. Remove bottom plate, belt guard and brush roll as described in Figs. 3-28 through 3-30.
-
Page 13: Maintenance
OR - • calling 1-800-944-9200 for an automated referral of authorized service outlet locations (U.S. only). Do not send your cleaner to The Hoover Company in North Canton for service, this will only result in delay. Lubrication The motor is equipped with bearings which contain sufficient lubrication for the life of the motor. -
Page 14: Trouble Shooting
Note: Electrical parts are enclosed in the cleaner. Do not remove any screws. If blockage cannot be removed through existing openings, take the cleaner to a Hoover Factory Service Center or an Authorized Hoover Warranty Service Dealer (Depot). C. If blockage occurs during powered hand tool use: 1. -
Page 15: Warranty
The Hoover Company on-line at www.hoover.com This warranty does not cover pick up, delivery, or house calls; however, if you mail your appliance to a Hoover Factory Service Center for warranty service, transportation will be paid one way. While this warranty gives you specific legal rights, you may also have other rights which vary from state to state.
