BARRIER FREE

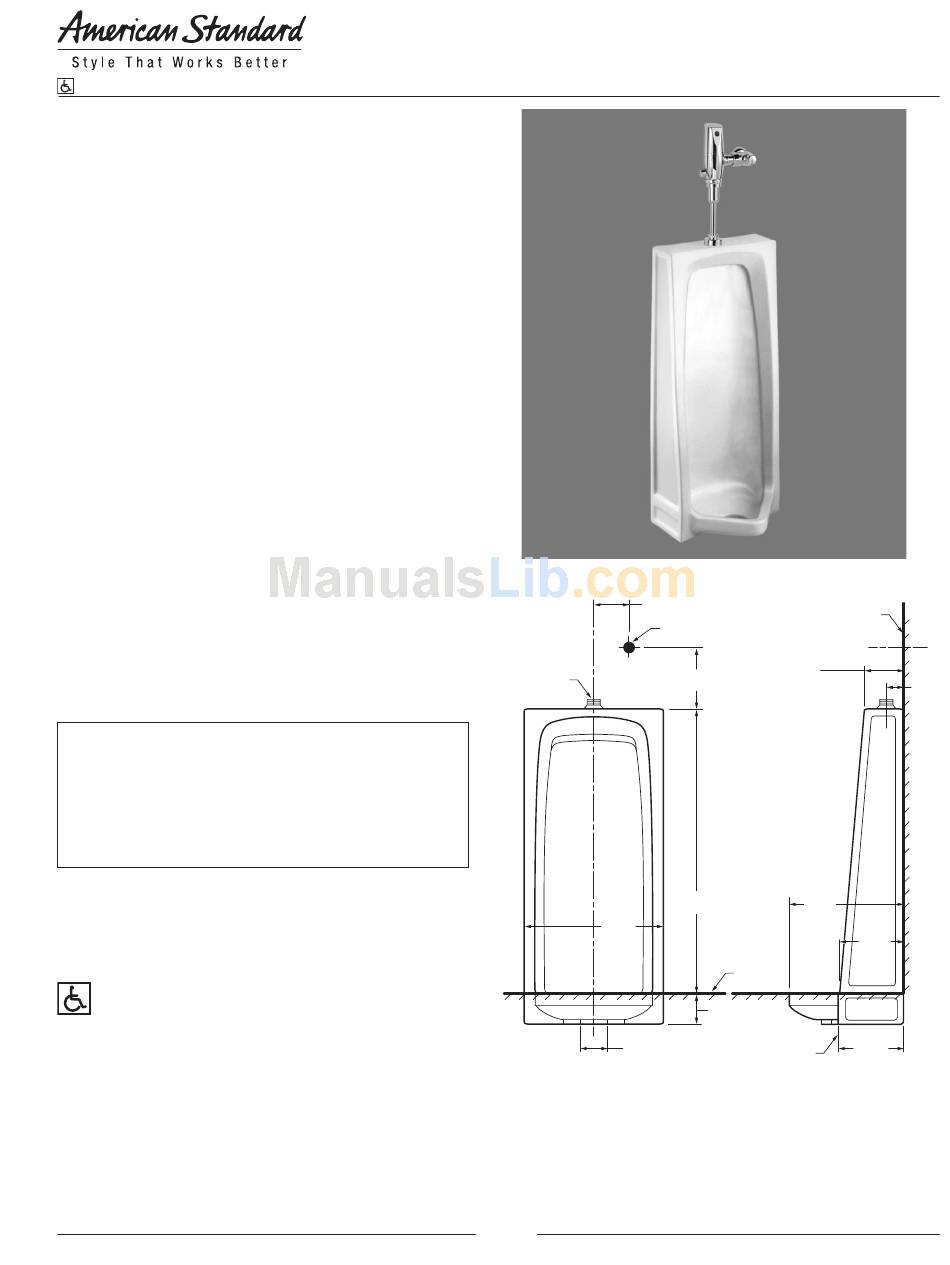

STALLBROOK™ 1.0 GPF WASHOUT URINAL
• Vitreous china
• Sloping front stall urinal
• Low-consumption (3.8 Lpf/1.0 gpf)
• Integral flush spreader
• Washout flush action
• 3/4" inlet spud
• Fixture only
• Meets ASME flush requirements at 0.7 to 1.0 GPF
❏
6400.014 Top Spud
Nominal Dimensions:
381 x 457 x 956mm
(15" x 18" x 38")
Recommended working pressure – between
20 psi at valve when flushing and 80 psi static
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2 for Vitreous China Fixtures
To Be Specified:
❏ Color: ❏ White ❏ Bone ❏ Silver
❏ Flush Valve:
❏ American Standard Selectronic
DC Power (Top Spud)
❏ Strainer (suggest McGuire #1233 or equivalent)
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDE-
LINES AND ANSI A117.1 ACCESSIBLE AND USEABLE
BUILDINGS AND FACILITIES - CHECK LOCAL CODES.
NOTE: Electronic Flush Valve required to meet ADA Flush
Valve Height Requirement.
© 2008 AS America Inc.
#6063.101.002
™
NOTES:
FLUSH VALVE NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of fixtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
M81
STALLBROOK™
121mm
(4-3/4)
3/4 S.P.S. SUPPLY
TO FLUSH VALVE
3/4
292mm
SPUD
(11-1/2)
C/L
965mm
(38)
457mm
(18)
102mm
(4)
89mm
(3-1/2) DIA. OUTLET
URINAL
VITREOUS CHINA
FINISHED
WALL
127mm
(5)
381mm
(15)
210mm
(8-1/4)
FINISHED
FLOOR
216mm
C/L OF
(8-1/2)
OUTLET
Revised 11/08
76mm
(3)
