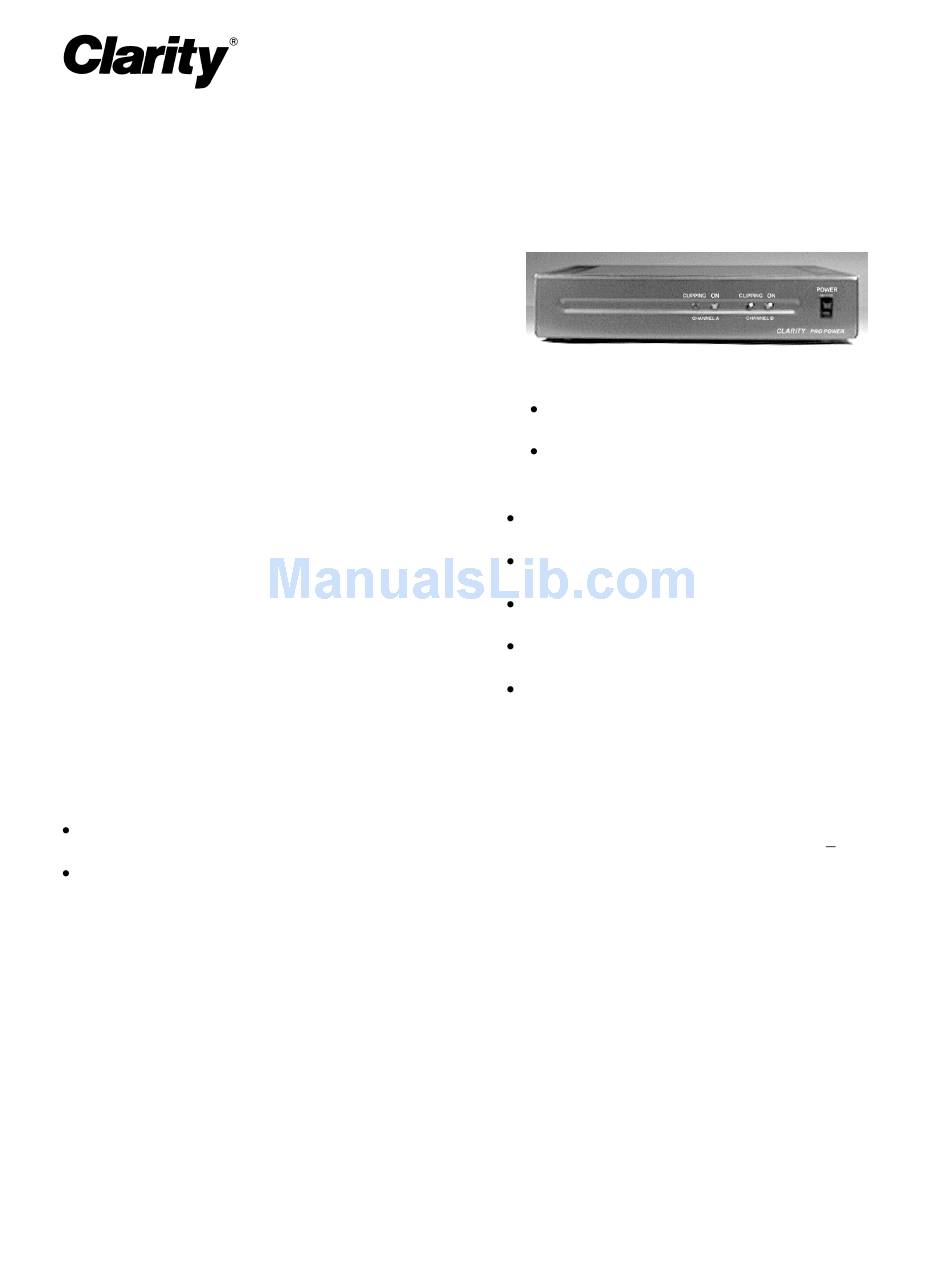

200 WATT 2-CHANNEL POWER AMPLIFIER
INTRODUCTION
These instructions contain the specifications and
information necessary to install, operate, and maintain
the SMB-200, 200 Watt 2-Channel power amplifier
manufactured by Clarity, 1111 Industry Avenue,
Roanoke, VA 24013.
"WARNING: To reduce the risk of fire or
electric shock, do not expose this appliance
to rain or moisture."
"WARNING: Shock Hazard - Do Not Open."
"AVIS: Risque de Choc Electrique ne pas
Ouvrir."
SPECIFICATIONS
Purpose
The SMB-200 2-Channel Power Amplifier provides
up to 100 watts of audio power per channel in the
2-channel mode and 200 watts of audio power in
bridge mode for voice paging or background music
systems.
Applications
Clarity Paging and Sound Reinforcement
Systems
Clarity Stand Alone Background Music Systems
Refer to Figure 1 for a block diagram of a typical
installation.
Features
- 100 watts per channel
- Shelf or rack mount (optional rack kit SMA-RMK)
- Volume control for each channel
- ON/OFF switch
- Circuit breaker protection
- Overload limiting circuit protection
- Phono jacks for input connections
- Screw terminals for output connections
- Power "ON" indicator per channel
- Clipping indicator per channel
- 2 ohm output 2-channel, 4 ohm output bridge
SMB-200
Dimensions and Weight
17.1" W x 14.75" D x 3.9" H
(43.43 cm W x 37.38 cm D x 9.9 cm H)
24 lbs (10.8 kg)
Accessories
SMB-101 Wall or shelf mount 100 watt
2-channel transformer unit (25,70,100 volt)
SMB-102 Wall or shelf mount 200 watt
1-channel transformer unit (70,100 volt)
SMB-201 Rack mount 100 watt 2-channel
transformer unit (25,70,100 volt)
SMB-202 Rack mount 200 watt 1-channel
transformer unit (70,100 volt)
SMA-RMK Rack mount kit
Nominal Specifications
Wattage Output
Type Outputs
Frequency Response
Distortion
S/N
Input Impedance
Sensitivity
Contour roll off
Mounting
Power Requirements
Voltage
Current
1
CSP SMB-200
Issue 2
100 Watts RMS per channel
200 Watts RMS Bridge
2- channel mode, 2 Ohms
Bridge mode, 4 Ohms
50-25 kHz + 2 dBm
<.5% @ 1 kHz Rated Output
<80 dBm
10 K Ohms
500 mVRMS
300 Hz 6dBm per octave
Wall or Rack
120 Vac
5.0 Amps
947443
