(540) 427-3505

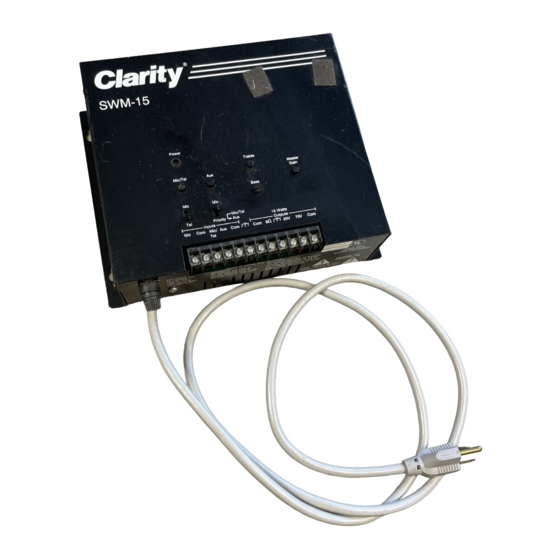

15 WATT WALL MOUNT AMPLIFIER
INTRODUCTION
These instructions contain the specifications necessary
to install, operate, and maintain the Clarity 15 Watt
Wall Mount Amplifier.
"WARNING: To reduce the risk of fire or
electric shock, do not expose this appliance
to rain or moisture."
"WARNING: Shock Hazard-Do Not Open."
"AVIS: Risque de Choc Electrique ne pas
Ouvrir."
"PELIGRO: Corriente Electrica - No Abres."
SPECIFICATIONS
The Clarity 15 Watt Wall Mount Amplifier is designed
to provide audio power that can be used to operate 4-8
ohms, 25 volt or 70 volt type speakers or horns for
voice paging or background music systems.
Applications
- Paging and Sound Reinforcement Systems
- Stand Alone Background Music Systems
- Telephone Paging Systems
Features
- Microphone or telephone page port on input 1
(switch selected)
- Priority override (switch selected)
- Wall mountable
- Master volume control
- Bass control
- Treble control
- All controls are screwdriver adjustable
- Power "ON" indicator
- 8 ohm, 25V or 70V outputs
- UL Listed
- Overload limiting circuit protection
- AC input fuse
SWM-15
Dimensions
9.5"W x 8.25"H x 3.0"D
(24.13cm x 20.95cm x 7.62cm)
(including mounting bracket 10.75"W [27.3cm]).
Nominal Specifications
Type of Outputs
Frequency Response
Distortion
Number of Inputs
Voice Switch Sensitivity
Mic Input Impedance
Sensitivity of Mic Input
Tel Line Input Impedance
Aux Impedance
Nominal Power Requirements
Voltage
Current
Environment
Temperature
Humidity
1
CSP-SWM-15
Issue 3
4-8 ohms, 25 volts, 70 volts
80 Hz-15 KHz
<2%
1 Mic/Tel, 1 Aux
-21 dbm
600 ohm balanced
1.5mV RMS
600 ohm
10K ohms
120 VAC
.5 Amps
0 to 50°C
0 to 85% non-precipitating
947431
