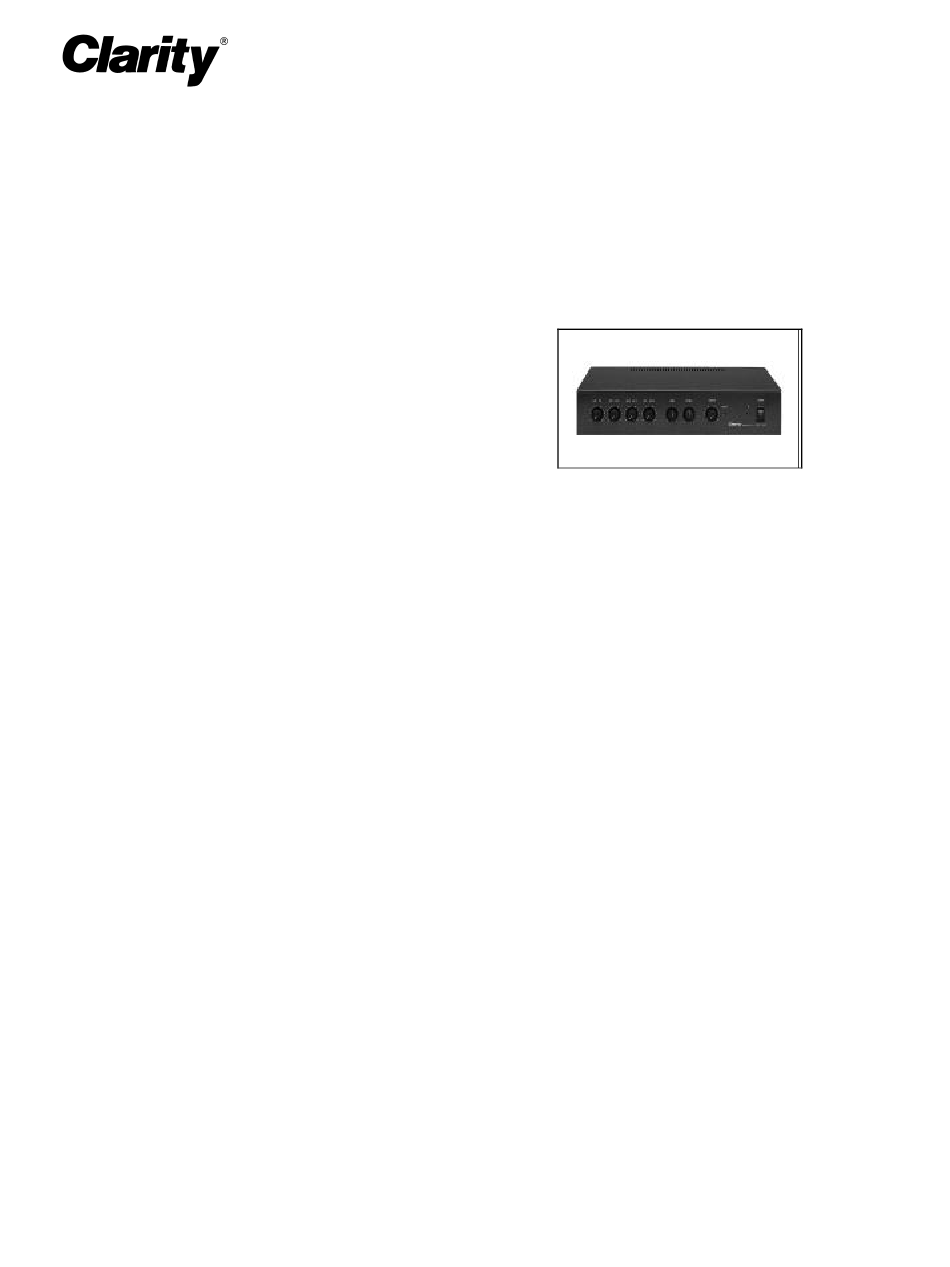

40, 60, AND 120 WATT MIXER-AMPLIFIERS
INTRODUCTION
These instructions contain the specifications and
information necessary to install, operate, and maintain
the SMA-40, 40 Watt Mixer-Amplifier, the SMA-60,
60 Watt Mixer-Amplifier and the SMA-120, 120 Watt
Mixer-Amplifier manufactured by Clarity, 1111
Industry Avenue., Roanoke, VA 24013.
"WARNING: To reduce the risk of fire or electric
shock, do not expose this appliance to rain or
moisture."
"WARNING: Shock Hazard - Do Not Open."
"AVIS: Risque de Choc Electrique ne pas Ouvrir."

SPECIFICATIONS

Purpose
The SMA-40 Mixer-Amplifier provides up to 40 watts
of audio power, the SMA-60 provides 60 watts, and the
SMA-120 provides up to 120 watts of audio power for
voice paging or background music systems.
Applications
•
Clarity Paging and Sound Reinforcement Systems
•
Clarity Stand Alone Background Music Systems
Refer to Figure 1 for a block diagram of a typical
installation.
Features
•
Active mix or Priority override on inputs (override
is voice operated)
•
Shelf or rack mount (optional kit)
•
Mic 1/Tel on Input 1, 3 standard MIC/AUX
inputs
•
Volume control for each input
•
Master volume control
•
Bass control
•
Treble control
•
Circuit breaker protection
•
ON/OFF switch
•
Overload limiting circuit protection
SMA-40, SMA-60, SMA-120
•
Screw terminals for all connections
•
Power "ON" indicator
•
2 ohm, 25 and 70 volt outputs on the SMA-120
•
4 ohm, 25 to 70 volt outputs on the SMA-40 and
SMA-60
•
Knobs for all controls
•
Clipping indicator
•
Effects loop
•
Tape output
•
Booster output

Dimensions and Weight

•
17.1"W x 12.5"D x 3.9"H
(43.43cm W x 31.75cm D x 9.9cm H)
•
24 lbs. (10.8 Kg) - SMA-120
•
20 lbs. (9.1 Kg.) – SMA-40 and SMA-60

Power Requirements

Voltage
Current (SMA-40)
(SMA-60)
(SMA-120)
Environment
Temperature
Humidity
1
CSP SMA-40/60/120
Issue 4
120 VAC
1.0 Amps
1.6 Amps
3.0 Amps
0 to 50 Degrees C
0 to 85% non-precipitating
947408
