LevelOne WAP-6012 Brochure & Specs

300Mbps N_Max Wireless
Gigabit PoE Access Point
H/W Version: 1

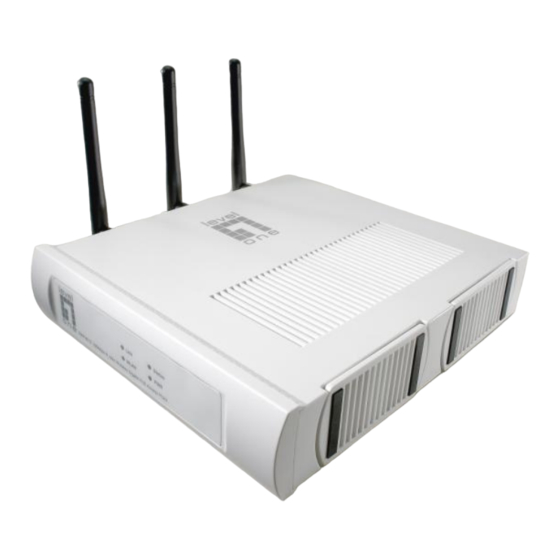

LevelOne's WAP-6012 300Mbps N_Max Wireless
Gigabit PoE Access Point is designed specifically
for business-class environments such as SOHO
or enterprises to provide security for network
administrators.
Ultimate Wireless Performance
The WAP-6012 allows network administrators to
deploy a highly manageable, robust wireless network.
For advanced installations, this new high-speed Access
Point has integrated 802.3af Power over Ethernet (PoE)
support, allowing installation of this device in areas
where power outlets are not readily available.
High Security
The WAP-6012 provides the latest in wireless security
technologies by supporting both personal and
enterprise versions of WPA and WPA2 (802.11i) with
Key Features
- 3 antennas with 2T/3R MIMO technology for Wireless
Data Rates of up to 300Mbps
- Compatible with IEEE802.11b/g/n wireless standards
- Supports 8 multi-SSIDs assignment for different
clients
- Provides 1 Gigabit Ethernet port (1000Mbps)
- 802.3af Power over Ethernet (PoE) for simple
deployment
- Supports AP, AP Client, Bridge and Repeater Modes
- Supports WEP, WPA, WPA2 and 802.1x for high
security
- Supports Wi-Fi Protected Setup (WPS)
- Supports SNMP(Simple Network Management
Protocol)
2
1 2 3 4
support for a RADIUS (802.11x) server backend. It
includes support for up to 8 VLANs for implementing
multiple SSIDs to further help segment users on the
network. It also includes a wireless client isolation
mechanism, which limits direct client-to-client
communication.
Multiple Operation Modes
The WAP-6012 is a feature-rich 11n access point
that supports AP, Bridge and Repeater modes for
customized wireless deployments. In Bridge mode,
the WAP-6012 acts as a wireless bridge to connect
separate wireless networks into one. This provides
more users with greater access to network resources.
In Repeater mode, the WAP-6012 allows extended
coverage and greater signal strength for greatly
improved distance coverage of the Wireless network
(WLAN).
5 6
Works Well With
WGR-6012
300Mbps N_Max Wireless Gigabit
Router
GEP-0520
4 GE PoE Port + 1 GE Switch
WAP-6012
1. LED Indicators
2. Power Port
3. PoE LAN Port
4. Reset Button
5. Detachable Antennas
6. Wall Mount Holes
