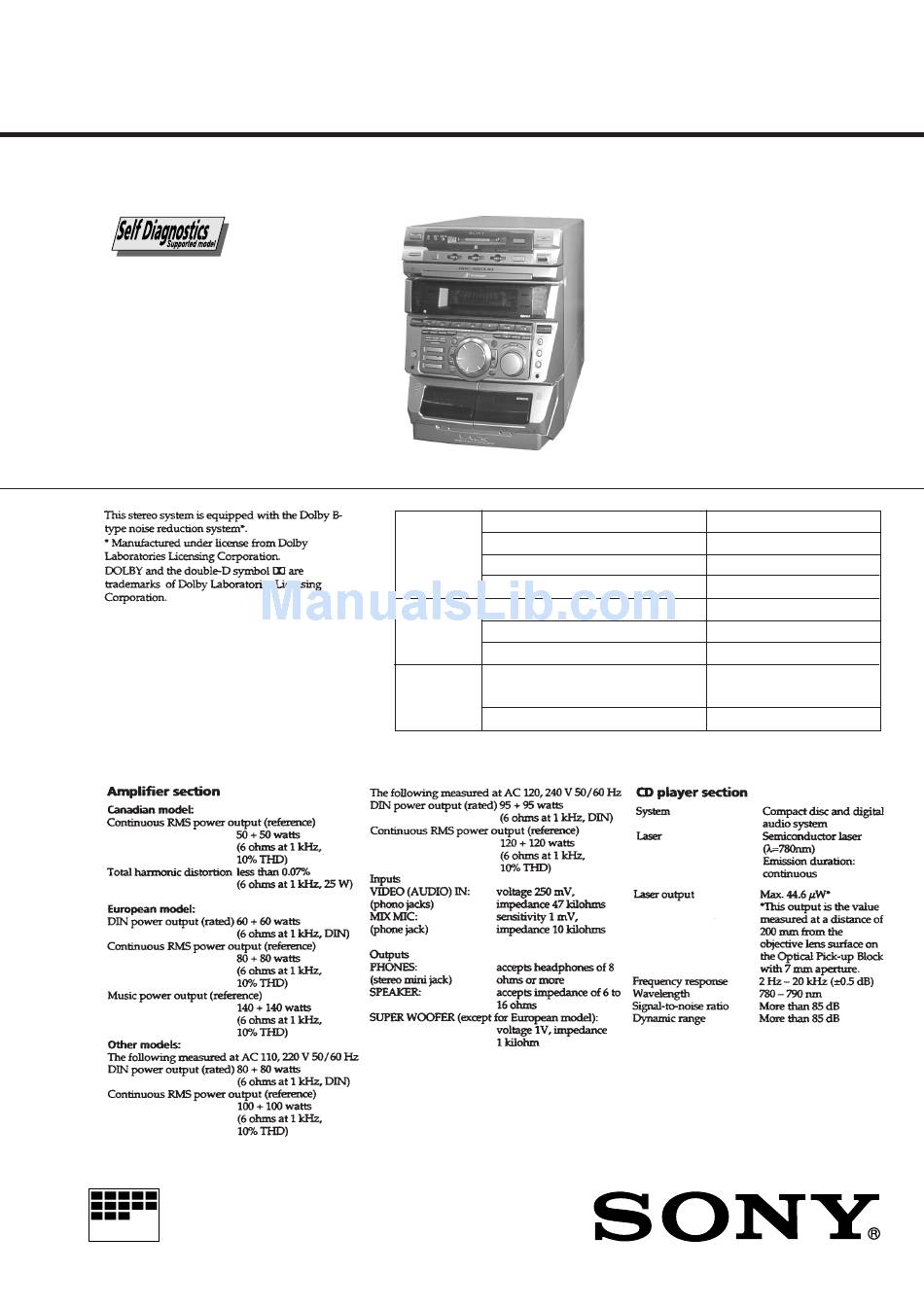

SERVICE MANUAL
HCD-MDX10 is the tuner, deck,
CD, MD and amplifier section in
MHC-MDX10.
MICROFILM
HCD-MDX10
Model Name Using Similar Mechanism NEW
Mechanism Type
CD
SECTION
Base Unit Type
Optical Pick-up Type
Model Name Using Similar Mechanism MDS-JE520
MD
Mechanism Type
SECTION
Optical Pick-up Type
Model Name Using Similar Mechanism HCD-DR4/DR5/DR6/DR440/
TAPE DECK
SECTION
Tape Transport Mechanism Type
SPECIFICATIONS
COMPACT DISC DECK RECEIVER
– 1 –
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
CDM38LH-5BD32L
BU-5BD32L
KSS-213D/Q-NP
MDM-5A
KMS-260A/K1NP
W300/W5000/XB500
TCM-230AWR2/230PWR2
— Continued on next page —
