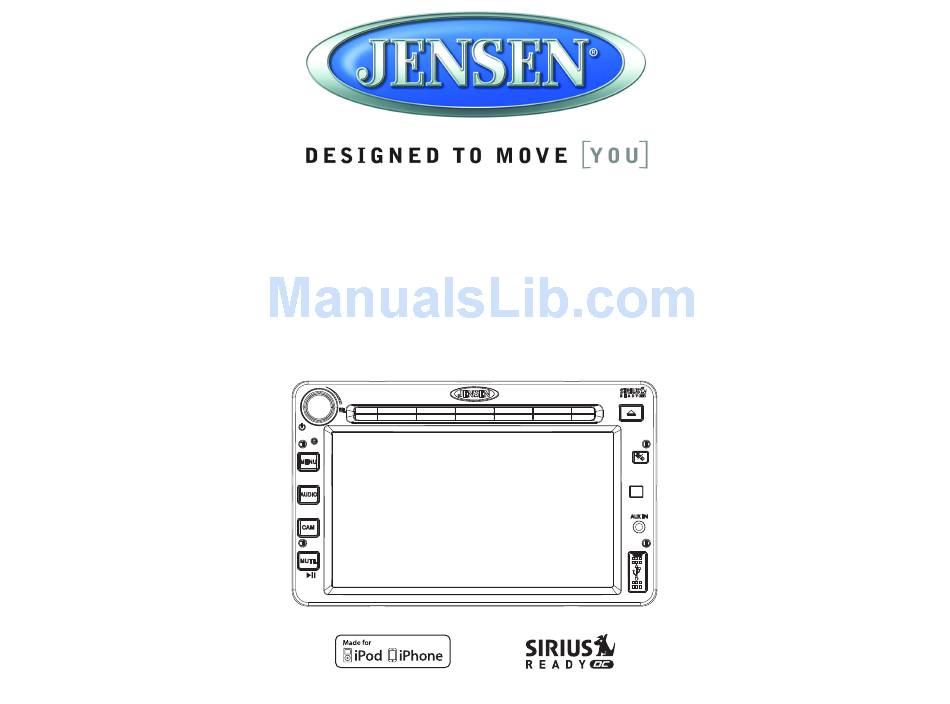

- Page 1 JRV212T TOUCH PANEL MOBILE AUDIO AND OBSERVATION SYSTEM Installation and Operation Manual JRV212T...
-
Page 2: Legal And Safety Notices
JRV212T LEGAL AND SAFETY NOTICES Legal Notices Safety Information Copyrights and Trademarks When Driving iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., Keep the volume level Iow enough to be aware of the road and traffic conditions. -
Page 3: Disc Notes
JRV212T DISC NOTES Depending on the recording status, conditions of the disc, and the equipment used for recording, some CD-Rs/CD-RWs may not play on this unit. For more reliable playback, please adhere to the NOTE: A disc may become scratched (although not enough to make it unusable) depending on how you handle it and other conditions in the usage environment. -
Page 4: Installation
JRV212T INSTALLATION Before You Begin Check the dashboard opening size by sliding the mounting sleeve into it. If the opening is not large enough, carefully cut or file as necessary until the sleeve easily slides into the opening. Disconnect Battery Do not force the sleeve into the opening or cause it to bend or bow. -
Page 5: Wiring
JRV212T WIRING WHITE FEMALE RCA CONNECTOR RED FEMALE RCA CONNECTOR IR REMOTE CONTROL CONNECTOR RIGHT REAR SPEAKER (+) RIGHT FRONT SPEAKER (+) FEMALE MOTOROLA TYPE LEFT FRONT SPEAKER (+) ANTENNA CONNECTOR LEFT REAR SPEAKER (+) LEFT REAR SPEAKER (-) WHITE FEMALE... - Page 6 JRV212T Recommended Camera Installation Configurations...
-
Page 7: Basic Operation
JRV212T BASIC OPERATION Camera (CAM) • Press the CAM button (5) to access camera mode. JRV212T • Press and hold to view the “System Menu” Camera setup options. See “Camera Configuration” on page 10. Audio • Press the AUDIO button (4) to access Audio Mode and select a source for playback. - Page 8 JRV212T Adjusting the Clock Remote Sensor The current time is displayed in the top right hand corner of the LCD display. To adjust the clock: Point the remote control handset (sold separately) at the remote sensor IR (11) and press the function keys on the handset to control the system.
-
Page 9: System Menu
JRV212T SYSTEM MENU Press the MENU button (3) to access the System Menu. Table 3: System Menu Options Setting Options Function System Menu See “SIRIUS Satellite Radio” on page 9. Sirius Satellite Radio (only appears when SIRIUS tuner is connected) See “Weather Alert Configuration”... -
Page 10: Camera Configuration
JRV212T Table 4: SIRIUS Satellite Radio The following Camera Configuration options can be adjusted: Table 6: Camera Configuration Setting Options Function Locked List View list of locked channels.Enter lock code, then Setting Options Function Channels touch to lock/unlock. Camera 1 Mode Skip The output of Camera 1 image is skipped. -
Page 11: Preset Stations
JRV212T AM/FM/RBDS CONTROLS Tuning • Touch the on-screen “TUNE+” or “TUNE-” button on the touch screen to tune up or down in JRV212T one step increments. • Touch the “SEEK ” or “SEEK-” button to seek the next strong station. -
Page 12: Rbds Operation
JRV212T Automatic Store / Preset Scan (AS/PS) Automatic Store Select a band (if needed). Touch and hold the “AS/PS” button for more than three seconds to automatically select 6 strong stations and store them in the current band. New stations replace any stations already stored in that band. -
Page 13: Weather Band Operation
The JRV212T is equipped with a weather alert level (Min Alert Level) and weather alert power (Auto-On Enable) feature that will cause the radio to turn on automatically when a weather alert is detected, adding an additional level of user safety. - Page 14 JRV212T NOTE: Because broadcast areas overlap you may want to set more than one S.A.M.E. location. If you live near the border between counties, you may want to receive alerts from more than one tower. Your radio is capable of being programmed with up to 7 different FIPS location codes. The default...
-
Page 15: Cd/Mp3/Wma Operation
JRV212T CD/MP3/WMA OPERATION Inserting and Removing a USB Device Inserting a USB Device JRV212T Insert the USB device into the USB jack (13) and then press the AUDIO button (4) on the front control panel to access AV mode (if needed). The unit will automatically detect the USB device and display “Loading USB”... -
Page 16: Controlling Playback
JRV212T NOTE: After loading an MP3 disc, files and folders are accessed in the order in which they were written by the CD writer. Therefore, the playing order may not be the same as the order in which they are expected to played. -
Page 17: Sirius Radio Operation
JRV212T SIRIUS RADIO OPERATION SIRIUS Tuning Options Channel Tuning JRV212T Touch the “TUNE+” or “TUNE-” buttons to tune up or down in one step increments. Preset Tuning • Touch the “PT+” button to view the next preset channel. • Touch the “PT-” button to view the previous preset channel. -
Page 18: Channel Lock
JRV212T Channel Lock Touch the “PRESET” button to view the preset list. Touch and hold a preset location on the screen until the channel is stored and appears in the Access Channel Lock through the System Menu under the “SIRIUS Satellite Radio” menu. See preset list. -
Page 19: Ipod Operation
Showroom of Comp Accessing iPod Mode F.AUX R.AUX Jensen iPod Ready Cable If iPod Auto-Select is turned “On” in the system menu, your iPod will play automatically when connected to the unit. HEAD UNIT “iPod” will appear in the upper left corner of the display. -
Page 20: Camera Operation
JRV212T CAMERA OPERATION Enter Camera Mode Camera Control Options Connect the cameras to the unit using the CAMERA 1-3 connection cables at the back of the unit. Touch the lower part of the screen to make the camera controls appear. -
Page 21: Care And Maintenance
JRV212T CARE AND MAINTENANCE • Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. • Keep the product away from dust and dirt, which can cause premature wear of parts. -
Page 22: Troubleshooting
JRV212T TROUBLESHOOTING Symptom Cause Solution No power The vehicle’s ignition is not on If the power supply is properly connected to the vehicle accessory terminal, switch the ignition key to “ACC”. The fuse is blown Replace the fuse. Disc cannot be loaded or Presence of CD disc inside the player Remove the disc in the player and insert the new one. -
Page 23: Specifications
