Jensen JBR550 Installation And Operation Manual

JBR550
AM/FM/CD AUDIO SYSTEM with PA
Installation and Operation Manual

   Related Manuals for Jensen JBR550

   Summary of Contents for Jensen JBR550

  • Page 1

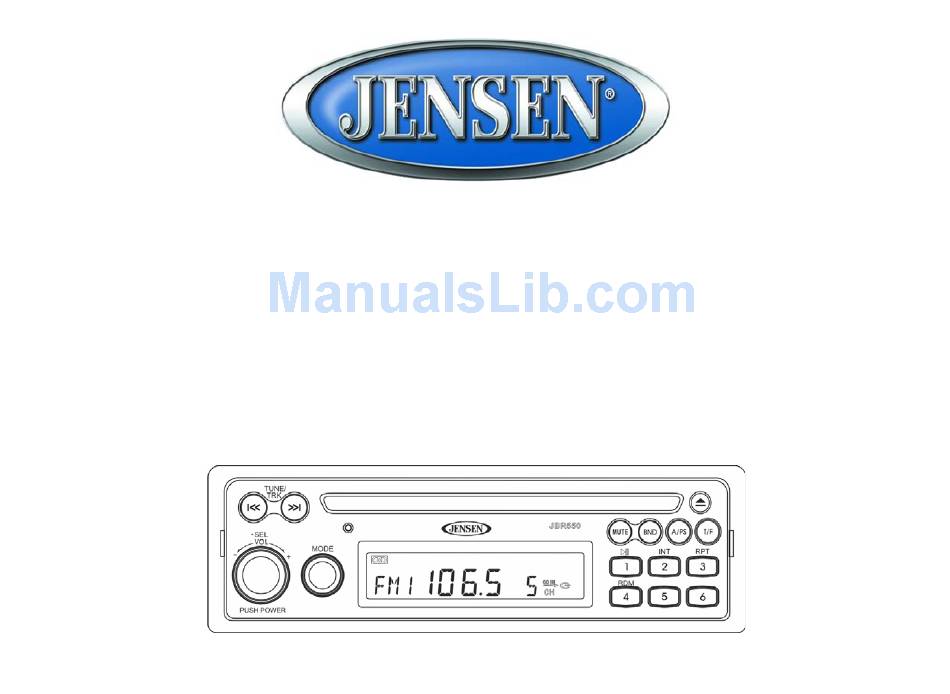

    JBR550 AM/FM/CD AUDIO SYSTEM with PA Installation and Operation Manual...

  • Page 2: Table Of Contents

    JBR550 CONTENTS System Features ....................1 Safety Information ....................2 Installation ......................3 Basic Operation ....................6 Tuner Operation ....................8 CD Player Operation ................... 9 Care and Maintenance..................10 Troubleshooting....................10 Specifications ....................11...

  • Page 3: System Features

    JBR550 SYSTEM FEATURES Features of the Jensen JBR550 mobile audio system include: • AM/FM Tuner with 30 Presets (12 AM, 18 FM) • Single In-Dash CD Player • Public Announcement (PA) Feature with Optional Microphone (sold separately) • Mute • Electronic Bass, Treble, Balance and Fader Controls •...

  • Page 4: Safety Information

    JBR550 SAFETY INFORMATION Disc Maintenance When Driving Keep the volume level Iow enough to be aware of the road and traffic conditions. • A dirty or defective disc may cause sound dropouts while playing. Before playing, wipe When Washing your Vehicle the disc using a clean cloth, working from the center hole towards the outside edge.

  • Page 5: Installation

    JBR550 INSTALLATION Before You Begin to a secure part of the dashboard, either above or below the radio using the screw and flange nut provided. Bend the strap to position it as necessary. Disconnect Battery Before you begin, always disconnect the battery negative terminal. CAUTION: The rear of the radio must be supported with either the perforated strap or Remove Transport Screws the rubber mounting bushing to prevent damage to the dashboard from the weight of...

  • Page 6

    JBR550 Wiring Diagram VIEW E PA-MIC INPUT...

  • Page 7

    JBR550 Reconnecting the Battery When wiring is complete, reconnect the battery negative terminal. Removing the Unit To remove the radio after installation, insert the removal keys straight back until they click, and then pull the radio out. If removal keys are inserted at an angle, they will not lock properly to release the unit.

  • Page 8: Basic Operation

    JBR550 BASIC OPERATION NOTE: CD mode will be skipped if no CD is inserted. Reset Use a ball point pen or thin metal object to press the RESET button (11). The reset button should be activated for the following reasons: •...

  • Page 9

    JBR550 Liquid Crystal Display (LCD) The current frequency and activated functions are shown on the LCD panel. NOTE: LCD panels may take longer to respond when subjected to cold temperatures for an extended period of time. In addition, the visibility of the numbers on the LCD may decrease slightly.

  • Page 10: Tuner Operation

    JBR550 TUNER OPERATION Select a Band Automatically Store / Preset Scan (A/PS) Press the BND button (3) to change between three FM bands and two AM bands. Automatically Store • During FM operation, when the station is broadcasting in stereo, the stereo icon ( Select an AM or FM band.

  • Page 11: Cd Player Operation

    JBR550 CD PLAYER OPERATION Inserting and Ejecting a Disc Controlling Disc Playback Insert a disc, label-side up, into the disc slot (7). The unit will automatically draw the disc in and Selecting Tracks play the first track on the disc, whether the power was turned on or not. Press the TUNE/TRK >>| or |<<...

  • Page 12: Care And Maintenance, Troubleshooting

    JBR550 CARE AND MAINTENANCE TROUBLESHOOTING • Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain Symptom Cause Solution minerals that can corrode the electronic circuits. • Keep the product away from dust and dirt, which can cause premature wear of parts. No power The vehicle’s accessory If the power supply is properly...

  • Page 13: Specifications

    JBR550 SPECIFICATIONS Signal to Noise Ratio..........> 55 dB Channel Separation .

  • Page 14

    ASA Electronics Corporation www.asaelectronics.com © 2010 ASA Electronics Corporation v.121709...
