6201 and 6210 Telephones Quick Reference
Issue 1, June 1998
Document Ordering No. 555-230-709
Comcode 108171083
The 6201 and 6210 telephones are single-line sets capable
of operating behind any Lucent Technologies Business
Communications System (BCS) switch including DEFINITY,
MERLIN LEGEND, and DIMENSION PBXs.
Handset
Handset
cord jack

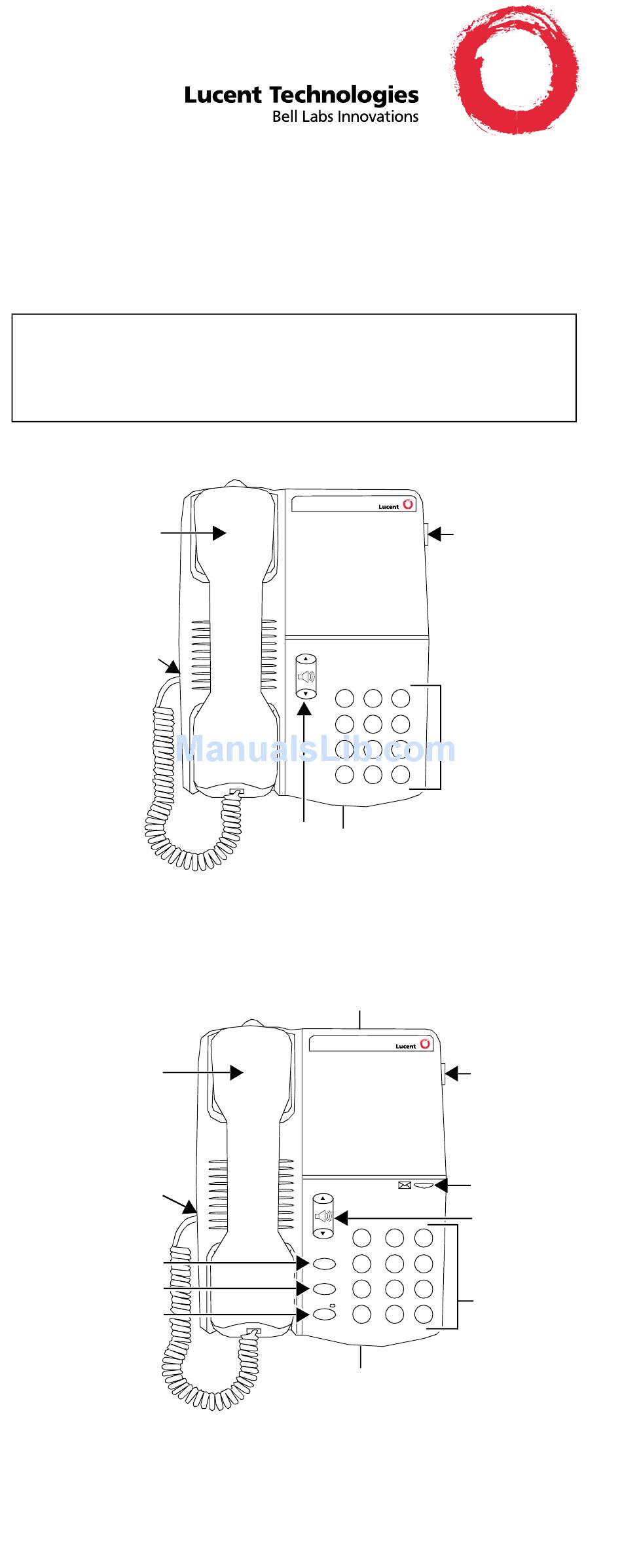

Figure 1. The 6201 Telephone, Top View
Handset
Handset
cord jack
Flash button
Redial button
Hold button
and Hold light
Figure 2. The 6210 Telephone, Top View
6201
ABC
1
2
GHI
JKL
5
4
PQRS
TUV
8
7
0
*
Handset
LINE jack
volume
(on bottom
control
of telephone)
DATA jack
6210
1
GHI
Flash
4
PQRS
Redial
7
Hold
*
LINE jack
(on bottom
of telephone)
1
Ringer
volume
control
DEF
3
MNO
6
Dial pad
WXYZ
9
#
Ringer
volume
control
Message
light
Handset
volume
ABC
DEF
2
3
control
JKL
MNO
5
6
TUV
WXYZ
8
9
Dial pad
#
0

Advertisement

Table of Contents
loading

Related Manuals for Lucent Technologies 6201

Summary of Contents for Lucent Technologies 6201

  • Page 1 6201 and 6210 Telephones Quick Reference Issue 1, June 1998 Document Ordering No. 555-230-709 Comcode 108171083 The 6201 and 6210 telephones are single-line sets capable of operating behind any Lucent Technologies Business Communications System (BCS) switch including DEFINITY, MERLIN LEGEND, and DIMENSION PBXs.

  • Page 2: Important Safety Instructions

    This light is labeled The Ringer volume control — On the 6201 and the 6210 telephones, set the 3-position Ringer volume control to raise or lower the volume of the tone ringer. The volume control is...

  • Page 3: Hearing Aid Compatibility

    This telephone can be hazardous if immersed in water. To avoid the possibility of electric shock, do not use it while you are wet. If you accidentally drop the telephone into water, do not retrieve it until you have first unplugged the line cord from the modular jack.

  • Page 4: Procedures For Using The Features

    PROCEDURES FOR USING THE FEATURES ANSWERING AND PLACING A CALL To answer or place a call Note: The Message light flashes when a call is coming in (that is, when the telephone is ringing). To place or answer a call, lift the handset. To place a call, next, dial the desired number.

  • Page 5: Procedures For Installing The Telephone

    PROCEDURES FOR INSTALLING THE TELEPHONE TABLE/DESK INSTALLATION Use the 7-foot straight line cord that came with your telephone to connect the telephone to a modular jack. WARNING: Do not plug the handset cord into the line jack or the data jack on your telephone since it could damage your handset and the telephone.

  • Page 6: Wall Installation

    Plug one end of the coiled handset cord into the handset jack on the side of the telephone. Plug the other end of the handset cord into the handset. Hang up the handset. Plug the free end of the line cord into a modular wall jack. Lift the handset and listen for dial tone.

  • Page 7: Fcc Registration And Repair Information

    Set the Ringer Volume Control switch to the settings you want. FCC REGISTRATION AND REPAIR INFORMATION Your new Lucent Technologies telephone has been registered with the Federal Communications Commission (FCC). This product complies with standards in Part 68 of the FCC rules. The...

  • Page 8: Repair Instructions

    FCC. Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your Lucent Technologies product. If such changes are planned, you will be notified. INTERFERENCE INFORMATION...
