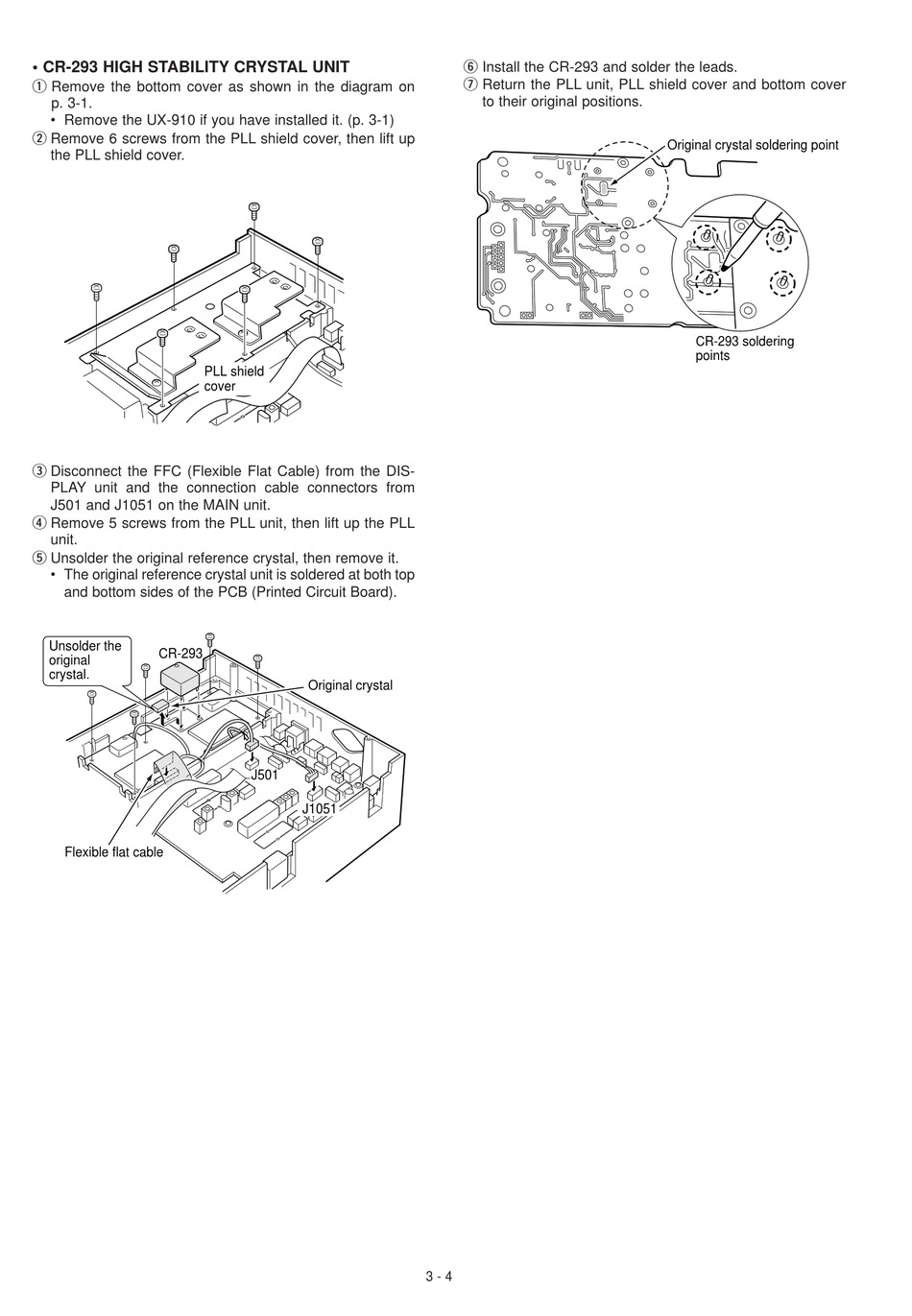

• CR-293 HIGH STABILITY CRYSTAL UNIT
q Remove the bottom cover as shown in the diagram on
p. 3-1.
• Remove the UX-910 if you have installed it. (p. 3-1)
w Remove 6 screws from the PLL shield cover, then lift up
the PLL shield cover.
e Disconnect the FFC (Flexible Flat Cable) from the DIS-
PLAY unit and the connection cable connectors from
J501 and J1051 on the MAIN unit.
r Remove 5 screws from the PLL unit, then lift up the PLL
unit.
t Unsolder the original reference crystal, then remove it.
• The original reference crystal unit is soldered at both top
and bottom sides of the PCB (Printed Circuit Board).
Unsolder the
CR-293
original
crystal.
Flexible flat cable
PLL shield
cover
Original crystal
J501
J1051
y Install the CR-293 and solder the leads.
u Return the PLL unit, PLL shield cover and bottom cover
to their original positions.
3 - 4
Original crystal soldering point
CR-293 soldering
points
