SECTION 7

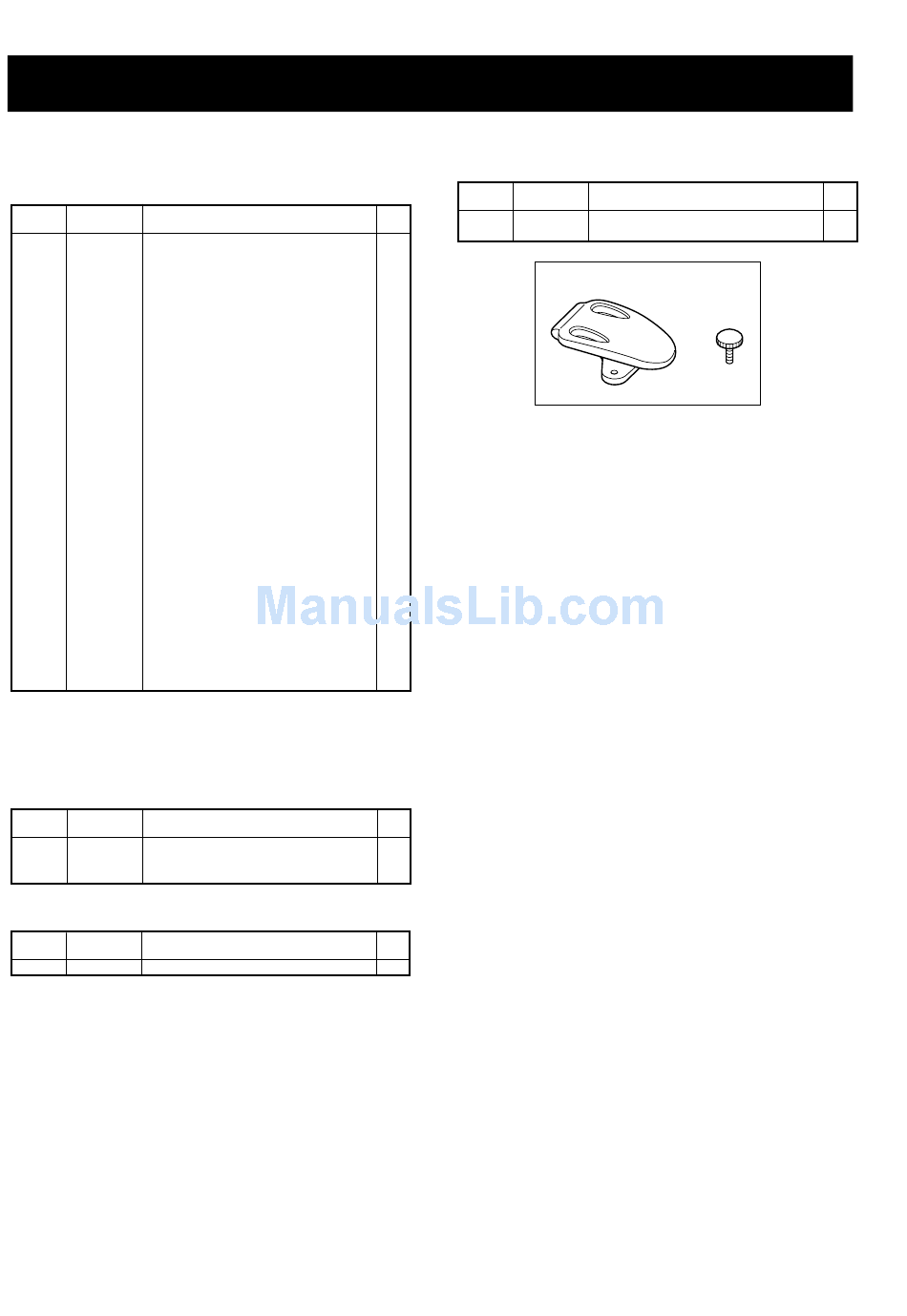

7-1 CABINET PARTS

[CHASSIS PARTS]
REF. NO. ORDER NO.
SP1 2510000960 Speaker K036NA500-26A27
EP1 3310002090 Antenna 2045ANT
MP1 8210015181 Panel 2045 Front Panel-1
8210016101 Panel 2045 Front Panel (A)-1
MP2 8210015191 Panel 2045 Rear Panel-1
8210016111 Panel 2045 Rear Panel (A)-1
MP3 8110006400 Cover 2045 Rear Cover
8110006720 Cover 2045 Rear Cover (A) [ITA-1], [CSA-1]
MP4 8110006410 Cover 2045 Lock Cover
8110006730 Cover 2045 Lock Cover (A) [ITA-1], [CSA-1]
MP5 8310042680 Plate 2045 Window Plate
MP7 8210015220 Panel 2045 Reflector
MP8 8610010570 Knob N-265
MP9 8930045192 Seal 2045 Top Seal-2
MP10 8930045230 Key 2045 4-Key
MP11 8930045200 Button 2045 PTT Button
MP12 8930046990 Seal 2045 Main Seal (A)
MP13 8930045220 Seal 2045 BATT Seal
MP14 8930046280 Terminal 2045 ANT Termainal
MP20 8830001370 Screw 2045 VR Nut
MP22 8930045750 Seal O-ring (X)
MP23 8830000110 Screw Nut M4
MP24 8810009560 Screw PH BO 2x6 ZK (BT)
MP25 8810008640 Screw FH BO 2x4 NI-ZU (BT)
MP30 8810008990 Screw PH BO 2x10 ZK (BT)
[MAIN UNIT]
REF. NO. ORDER NO.
DS2 5030001580 LCD LD-BU10185J
EP1 8930045510 LCD contact SRCN-2045-SP-N-W
[RF UNIT]
REF. NO. ORDER NO.
MP1 8510011570 Case 2045 VCO Case
Screw abbreviations
MECHANICAL PARTS AND DISASSEMBLY
QTY.
DESCRIPTION
1
1
[ITA], [CSA] 1
1
[ITA-1], [CSA-1]
[ITA], [CSA] 1
1
[ITA-1], [CSA-1]
[ITA], [CSA] 1
1
[ITA], [CSA] 1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
2
1
QTY.
DESCRIPTION
1
1
QTY.
DESCRIPTION
1
A, B0, BT: Self-tapping
PH: Pan head
FH: Flat head
BiH: Bind head
NI: Nickel
SUS: Stainless
ZK: Black

7-2 ACCESSORIES

REF. NO. ORDER NO.
MP1 8930045331 2045 Belt clip-1
MP2 8820001040 2045 Screw
MP1
7 - 1
QTY.
DESCRIPTION
1
1
MP2
