4-1-6 SQUELCH CIRCUIT (RF AND MAIN UNITS)
(1) NOISE SQUELCH
The noise squelch circuit cuts out AF signals when no RF sig-
nals are received. By detecting noise components in the AF
signals, the squelch circuit switches the AF mute switch.
A portion of the AF signals from the FM IF IC (RF unit; IC2,
pin 9) are applied to the active filter section (RF unit; IC2, pin
8). The active filter section amplifies and filters noise compo-
nents. The filtered signals are applied to the noise detector
section and output from pin 14 as the "SQL" signal.
The "SQL" signal from IC2 (pin 14) passes through J2 pin 9,
and is then applied to the CPU (MAIN unit; IC1, pin 59). The
CPU analyzes the noise condition and outputs the "RMUT"
and "AFON" signals to toggle the volume mute (MAIN unit;
Q23) and AF mute (MAIN unit; Q5, Q10, Q11) switches.
(2) TONE SQUELCH
The tone squelch circuit detects AF signals and opens the
squelch only when receiving a signal containing a matching
subaudible tone (CTCSS). When tone squelch is in use, and
a signal with a mismatched or no subaudible tone is
received, the tone squelch circuit mutes the AF signals even
when noise squelch is open.
A portion of the AF signals from the FM IF IC (RF unit; IC2,
pin 9) passes through the tone low-pass filter (MAIN unit; Q7,
Q12) to remove AF (voice) signals and is applied to the
CTCSS decoder inside the CPU (MAIN unit; IC1, pin 58) via
the "CTCIN" line to control the volume mute and AF mute
switches.
4-2 TRANSMITTER CIRCUITS
4-2-1 MICROPHONE AMPLIFIER CIRCUIT
(MAIN UNIT)
AF signals from the internal/external microphone are applied
to the microphone amplifier circuit (IC2b) via the microphone
switch (Q6). The amplified signals are passed through the
low-pass filter (IC2a) and applied to the modulation circuit in
the RF unit via J4 pin 5 as the MOD signal.
4-2-2 MODULATION CIRCUIT (RF UNIT)
The filtered audio signals from J4, pin 5 (On the MAIN unit)
are passed through the deviation adjustment pot (R50) then
applied to the modulation circuit (D4, D5) to modulate trans-
mit signals at the VCO circuit (Q6).
The modulated signal is applied to the drive amplifier circuit.

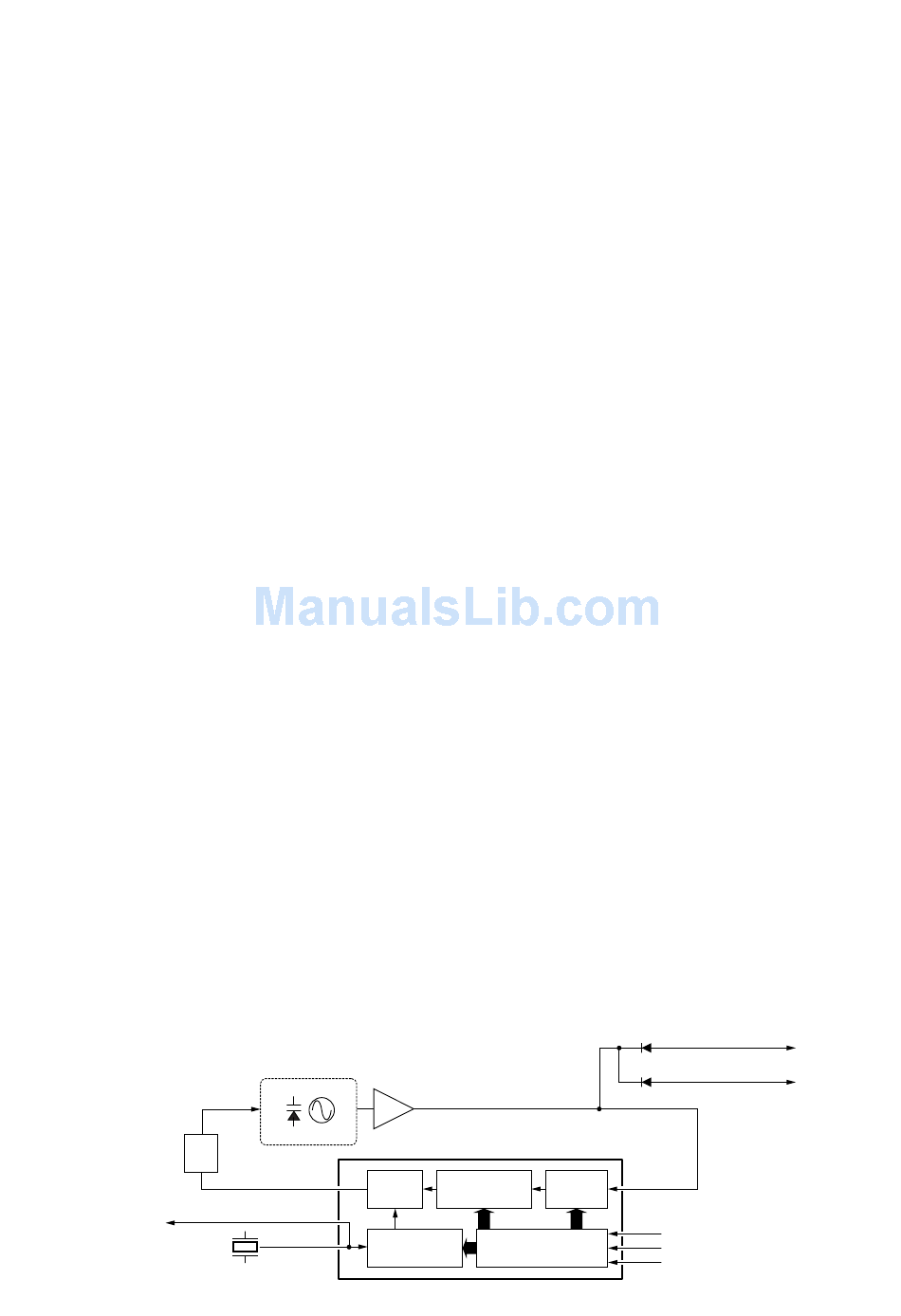

• PLL circuit
Loop
filter
to the FM IF IC
(IC2, pin 1)
X1
21.25 MHz
Buffer
VCO
Q7
Q6, D4, D5
Phase Programmable
14
detector counter
9
11
Programmable
divider
4-2-3 DRIVE/POWER AMPLIFIER CIRCUITS
(RF UNIT)
The amplifier circuit amplifies the VCO oscillating signal to
the output power level.
The amplified transmit signal is passed through the antenna
switching circuit (D6) and low-pass filter, and is then applied
to the antenna.
The modulated transmit signal is amplified at the pre-drive
and drive amplifiers (Q8, Q201) after being amplified at the
buffer amplifier (Q7). The amplified signal is power amplified
at the power amplifier (Q202) to obtain 500 mW or
(IC–4008A) 10 mW (IC–4008MK2) of RF power.
The power amplified signal is then applied to the antenna via
the low-pass filter circuits.
4-3 PLL CIRCUITS (RF UNIT)
A PLL circuit provides stable oscillation of the transmit fre-
quency and receive 1st LO frequency. The PLL output com-
pares the phase of the divided VCO frequency to the refer-
ence frequency. The PLL output frequency is controlled by
the divided ratio (N-data) of a programmable divider.
The PLL circuit consists of the VCO circuit (Q6, D4, D5). An
oscillated signal from the VCO passes through the buffer
amplifier (Q7) is applied to the PLL IC (IC1, pin16) and is
prescaled in the PLL IC based on the divided ratio (N-data).
The reference signal is generated at the reference oscillator
(X1) and is also applied to the PLL IC. The PLL IC detects the
out-of-step phase using the reference frequency and outputs
it from pin 14. The output signal is passed through the loop
filter (R45, C68) and is then applied to the VCO circuit as the
lock voltage.
If the oscillated signal drifts, its phase changes from that of
the reference frequency, causing a lock voltage change to
compensate for the drift in the oscillated frequency.
IC1 (PLL IC)
16
Prescaler
6
7
Shift register
8
4 - 2
D2
to transmitter circuit
D1
to 1st mixer circuit
CK
DATA
STB
