RocketFish RF-G1185 Quick Setup Manual

Package contents Features
• Full HD 1080p video compatibility
• 4-port HDMI Switcher
• Auto HDMI port switching for simple operation
• AC power adapter
• HDCP compliant to ensure playback of any content
• Remote control and battery
• DTS® HD, Dolby® TrueHD lossless digital audio compatibility
• Quick Setup Guide
• One front panel HDMI input for easy connection of portable HDMI devices
• 3D video compatibility
• Gold plated connectors for maximum signal transfer and corrosion resistance
• Remote control for manual HDMI port switching when needed
• Compatibility with CEC enabled HDMI devices

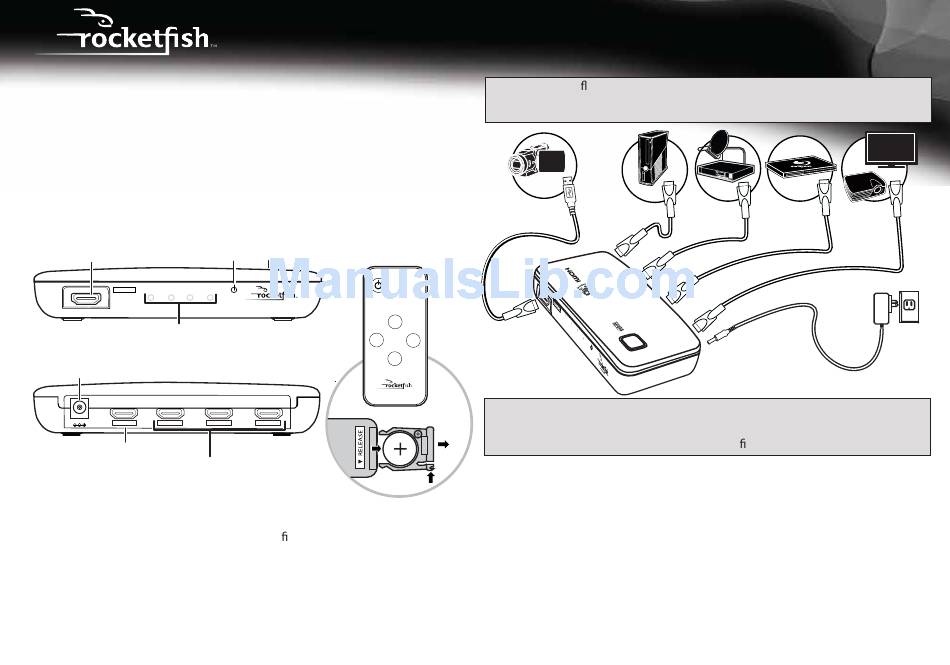

Front
HDMI Input
(OPTION: Camcorder)
INPUT 4 1 2 3
Input LEDs
Back
DC power connector
DC5V
OUTPUT INPUT 3
HDMI Output
(HDTV or projector)
HDMI Input
( Cable/satellite/DVR set-top box/Blu-ray Disc /DVD player or Game console)
Setting up your switcher
1 Using high-speed HDMI cables, such as Rocket sh brand HDMI cables, connect
one end of the HDMI cable to the HDMI port on each source devices, then
connect the other end of each cable to one of the HDMI INPUTS on your switcher
2 Connect a high-speed HDMI cable from an available input on your HDTV (or
projector) to the HDMI OUTPUT of your switcher.
3 Connect the AC power adapter to the DC power connector on your switcher,
then plug the adapter into a power outlet.
4-PORT SWITCHER
RF-G1185
Power/Select
Button (top) Remote
Power LED
4
2
To remove battery
INPUT 2 INPUT 1
In addition to the exibility of additional HDMI inputs, this product also provides
automatic HDMI port switching. The included remote control is for manual HDMI port
switching when needed.
Camcorder
POWER
ON/OFF
HDMI Input 4
1
4
SELECT
MODES
3
RF-G1185
NOTE: If you want to watch 3D video, make sure that your TV or projector supports the
same HDMI 3D video format as your source. A 3D image cannot be delivered to a TV or
projector that does not support 3D video formats. You also need to use HDMI cables
CR2025 that are compatible with 3D video, such as Rocket sh high-speed HDMI cables.
Open
Using your switcher
Push
1 Press the POWER button on the remote control or press and hold the
POWER/SELECT button on your switcher for at least two seconds. The power LED
lights red.
2 Turn on your TV or projector, then switch to the HDMI input that your switcher
is connected to. If you are uncertain how to do this, see the documentation
that came with your TV or projector.
3 Turn on the HDMI device that you want to view. The auto-switching feature of
your switcher should automatically switch to that input, and the corresponding
LED lights green. However, some HDMI source devices are not compatible with
auto-switching technology. If needed, press the number on the remote control
you want to switch to, or repeatedly press the POWER/SELECT button on your
switcher to toggle through the HDMI inputs until the correct input is selected
and the corresponding LED indicator lights green.
QUICK SETUP GUIDE
Satellite
Game
HDMI
Input 1
HDMI
Input 2
HDMI
Input 3
HDMI
Output
DC connector
HD TV
or
Blu-Ray or
DVD Player
Projector
