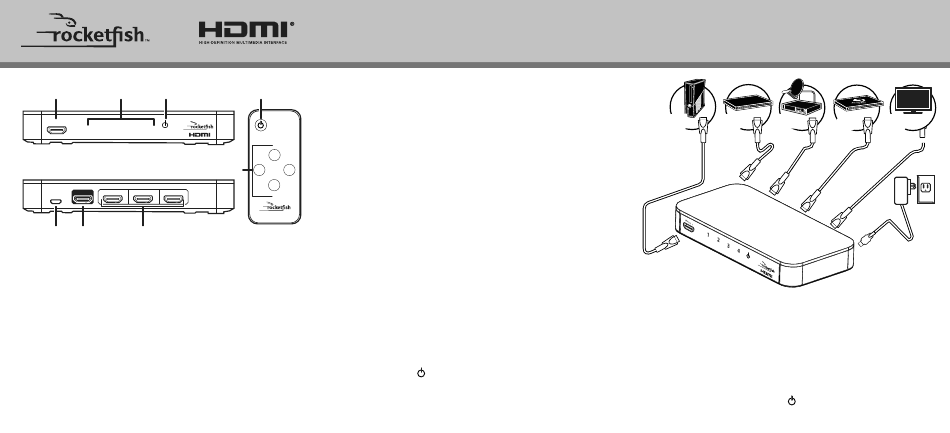

RocketFish RF-G1501 Quick Setup Manual

FRONT
Power LED/
Input LEDs/
buttons button
HDMI input
INPUT 1 1 2 3 4
BACK
Input selectors
OUTPUT INPUT 4 INPUT 3 INPUT 2
DC5V
Power HDMI HDMI
port
output inputs
PACKAGE CONTENTS
• 4-Port HDMI Switch • Remote control
• Power adapter • Quick Setup Guide
FEATURES
Your 4-Port HDMI Switch supports 4K video and next-generation
audio.
• Compatibility with most CEC-enabled HDMI devices
• Resolution – 480p, 720p, 1080p, and 4K (4096 × 2160)
• Frame Rate – Up to 4k at 60 Hz (1080p at 120 Hz)*
• Color – Deep Color, HDR, and other enhanced color specifications
Before using your new product, please read these instructions to prevent any damage.
• Audio – Works with Dolby TrueHD, DTS-HD, and all audio formats
REMOTE
supported by the HDMI 2.0 standard
Power
• Auto Switch – When a source device is turned on, the switch
automatically detects and switches to that device's input
POWER
*Note: TVs with high internal refresh rates (such as 240 Hz) are compatible.
ON/OFF
The specifications refer to source signal and not TV refresh rate.
1
SETTING UP YOUR HDMI SWITCH
2 4
SELECT
MODES
1 Connect HDMI cables from your source devices to the switch's
3
INPUT ports.
2 Connect an HDMI cable from your TV (or projector) to the
RF-G1501
switch's OUTPUT port.
3 Connect the power adapter from the DC 5V port to a power
outlet.
The power LED and an input LED light up.
Note: To fully support 4K resolution, connect the input and output
channels using HDMI PREMIUM Certified cables (within 3 meters).
Optional wall-mounting: Install two screws 4 in. (10.2 cm) apart into your
wall, then hang the switch on the screws. Mounting hardware is not included.
USING YOUR HDMI SWITCH
1 Turn on your TV and source device.
2 To turn on your switch press POWER ON/OFF on your remote
control or tap the
Note: When the switch is turned on, it automatically switches to the last
input that was used.
RF-G1501 / RF-G1501-C, 4-Port HDMI Switch with 4K Compatibility
(power) symbol on your switch.
QUICK SETUP GUIDE
Game DVD Satellite
Console Player Receiver
HDMI
Input 2
HDMI
Input 3
HDMI
Input 4
HDMI
Output
HDMI
Input 1
3 To select a source device:
• Press the number on your remote that matches the input of the
source device you want.
OR
• Tap the number on your switch that matches the input
your source device is connected to.
The corresponding input LED lights.
4 Use your source device as usual to play video and audio.
5 When finished, press and hold (power) to turn off your switch.
Note: You may leave the power on while not in use.
4K 4K UltraHD
Blu-ray TV
Power
adapter
