Icom IC-F21 Service Manual page 23

SECTION 7
[CHASSIS PARTS]
REF. NO. ODER NO.
SP1 2510001100 Speaker 036D0601
MP1 8210017710 2458 front panel
MP4 8930054680 2458 release button
MP6 8930054690 2458 lens
MP7 8210017730 2458 jack panel
MP8 8930054881 2458 plus terminal-1
MP9 8010018501 2458 chassis-1
MP10 8930054710 2458 A-main seal
8930054720 2458 B-main seal
MP11 8930042350 1922 mic sheet
MP12 8930050840 2251 minus terminal
MP13 8830001550 Nut (J)
MP14 8830001570 Nut (K)
8830001550 Nut (J)
MP15 8650005320 2337 contact
MP18 8610010910 Knob N-281
MP19 8610010920 Knob N-282
MP20 8810004860 Screw PH M 2 x 6 ZK
MP21 8810000100 Screw PH M 2 x 4 ZK
MP22 8810009560 Screw B0 M 2 x 6 ZK
MP26 8930053680 Spring (AG)
MP27 8210017090 2337 terminal holder
MP28 8930052840 2337 T-rubber
MP29 8810009510 B0 M02 x 4 NI-ZU (BT)
MP30 8930043760 1923 Mic seal
MP32 8950004671 ANT connector 101A
MP33 8830001250 ANT connector 101 nut
MP34 8930055110 2458 side plate
MP35 8810009510 Screw B0 M 2 x 4 NI-ZU (BT)
MP39 8810009180 Screw B0 M 2 x 5 NI-ZU (BT)
Screw abbreviations B0, BT: Self-tapping
PH: Pan head
NI: Nickel
ZK: Black
NI-ZU: Nickel-zinc
MECHANICAL PARTS AND DISASSEMBLY
DESCRIPTION QTY.
[F21]
[F21S]
[F21S]
[F21]
[F21] only
[F21S] only
[MAIN UNIT]
REF. NO. ODER NO.
1 MP1 8510013000 2336 VCO case
MP2 8510011180
1 MP6 8510013800 2458 main shield
1 MP7 8930055690 Sponge (GT)
1
1
1
1

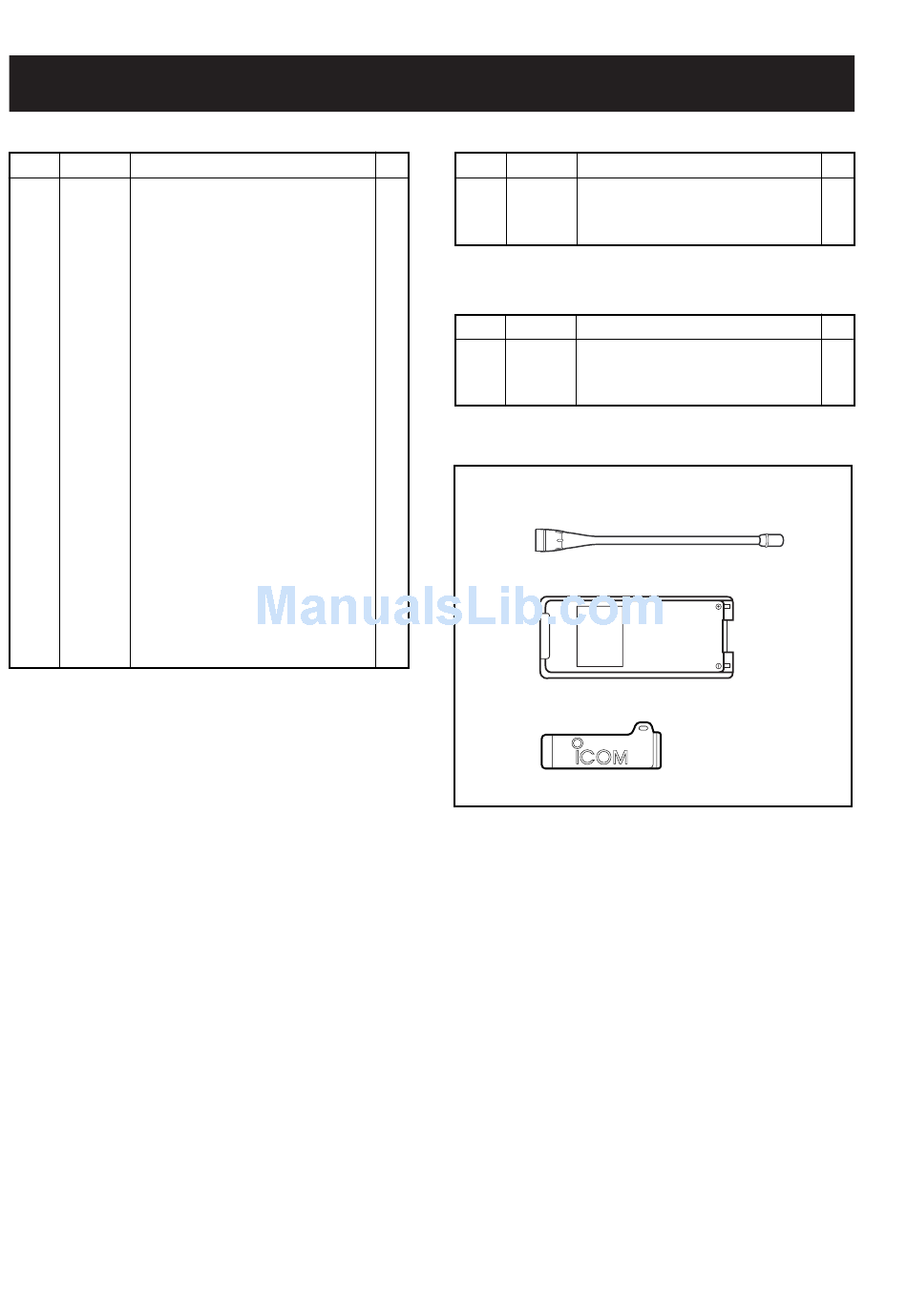

[ACCESSORIES]
1
1 REF. NO. ODER NO.
1
EP1 Optional product Antenna FA-SC57U
1
EP2 Optional product Battery BP-209
1
1
MP1 Optional product 1922 Belt clip
1
1
1
1
2
2
2
1
1
EP1
1
10
1
1
1
1
EP2
1
1
MP1
7 - 1
DESCRIPTION
1923 VCO cover
DESCRIPTION
QTY.
1
1
1
1
QTY.
1
1
1
