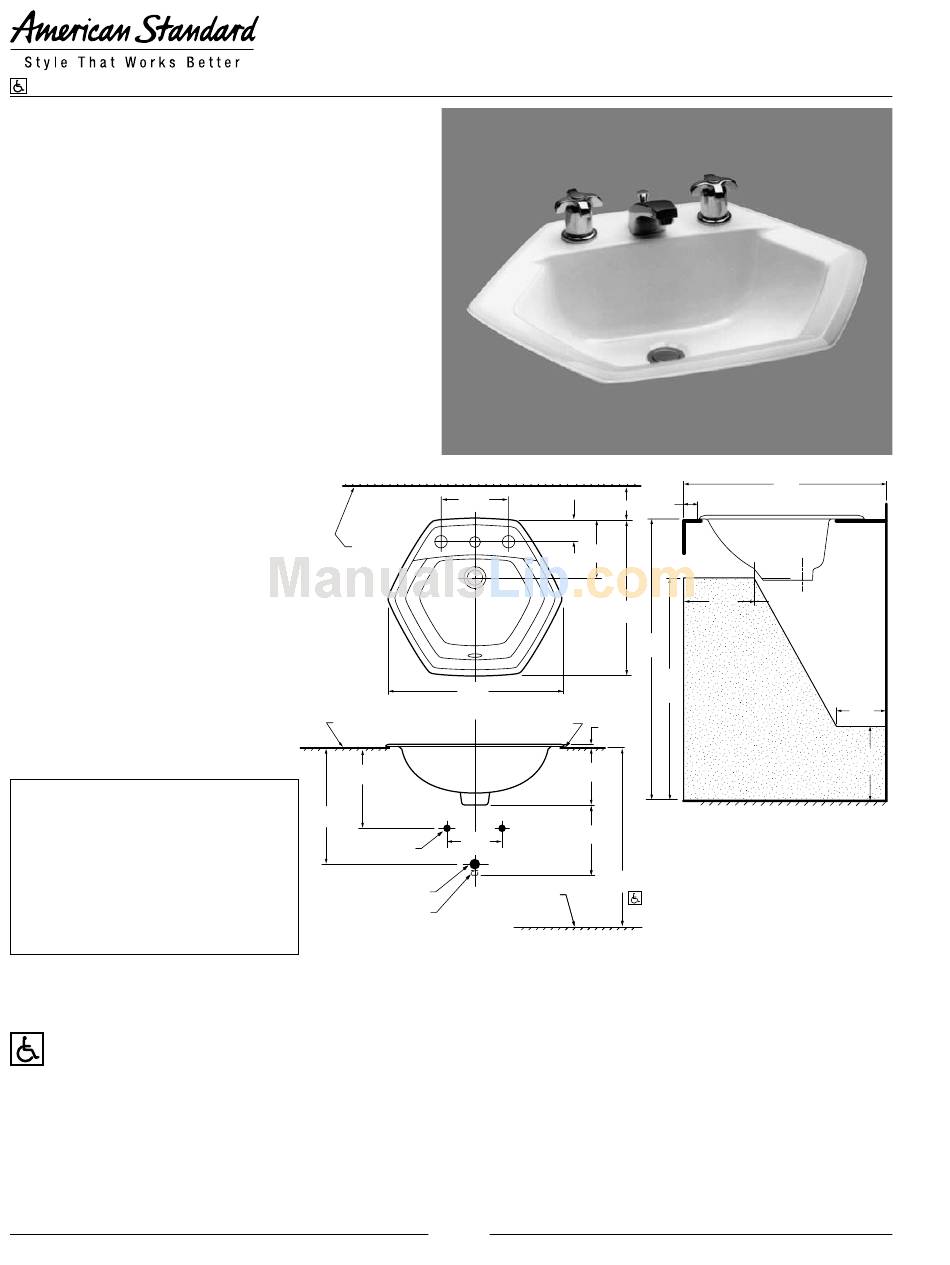

American Standard Hexalyn 0485.013 Specification Sheet

BARRIER FREE
HEXALYN™ COUNTERTOP SINK
• Made from vitreous china
• Self-rimming with cutout template supplied
• Front overflow
• Faucet ledge
Shown with 4801.862 Amarilis/Heritage faucet
with Triune handles (not included)
❏ 0485.013 Faucet holes on 8" (203mm) centers
(Illustrated)
❏
0485.027 Faucet holes on 4" (102mm) centers
❏
0485.033 Center hole only
Nominal Dimensions:
543 x 489mm
(21-3/8" x 19-1/4")
Bowl sizes:
432mm (17") wide
305mm (12") front to back
152mm (6") deep
Compliance Certifications -
Meets or Exceeds the
Following Specifications:
• ASME A112.19.2M for
Vitreous China Fixtures
To Be Specified:
❏ Color: ❏ White ❏ Bone
❏ Linen ❏ Silver
❏ Fawn Beige
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
* See faucet section for additional models available
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USABLE
BUILDINGS AND FACILITIES - CHECK LOCAL CODES.
Install lavatory 864mm (34") from finished floor.
Lavatory installed 51mm (2") minimum from front edge
of countertop provides 686mm (27") knee clearance area.
© 2008 AS America Inc.
FINISHED
WALL
OR
SPLASH BACK
COUNTERTOP (BY OTHERS)
*
273mm
(10-3/4)
*
327mm
(12-7/8)
SUPPLIES
AS REQ'D.
❏ Black
1-1/4 O.D.
1-1/4 O.D.
TAILPIECE
203mm
(8)
73mm
(2-7/8)
543mm
(21-3/8)
SEALING
COMPOUND
182mm
(7-3/16)
178mm
203mm
(8)
FINISHED
WASTE
FLOOR
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE
*
SUGGESTED
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
FOR COUNTERTOP CUTOUT AND INSTALLATION INSTRUCTIONS USE
TEMPLATE SUPPLIED WITH SINK.
SEALING COMPOUND SUPPLIED BY OTHERS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range
of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
J36
HEXALYN™
COUNTERTOP SINK
VITREOUS CHINA
51mm
(2)
OPTIONAL
184mm
(7-1/4)
203mm
(8)
489mm
MIN.
(19-1/4)
851mm
(33-1/2)
686mm
(27)
MIN.
11mm
(7/16)
BARRIER FREE
CLEARANCE
(7)
787mm (31)
851mm (33-1/2)
610mm
(24)
DRAWING FOR
DIMENSIONAL
PURPOSES ONLY.
IT IS NOT AN EXACT
REPRESENTATION.
152mm
(6)
MAX.
229mm
(9)
MIN.
Revised 2/08
