INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE

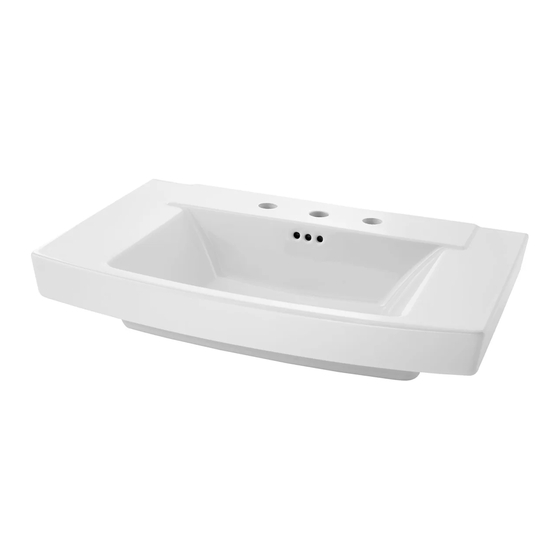

0328 TOWNSEND
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this
product is installed properly, please read these instructions carefully before you begin. (Certain installations may
require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
OBSERVE LOCAL PLUMBING AND BUILDING CODES
Recommended Tools & Materials
Putty Knife
Channel Lock Pliers
Level
FINISHED
WALL
PEDESTAL SINK
®
Adjustable Wrench
Regular Screwdriver
Phillips Screwdriver
Tape Measure
FAUCET MOUNTING HOLES:
SINGLE HOLE, 4"(102mm) OR 8"(203mm)
8-1/2"
(215mm)
30"
(762mm)
In the United States:
American Standard Brands
1 Centennial Ave.
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 442-1902
www.americanstandard.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Hacksaw
Plumbers' Putty or
Caulking
Tubing Cutter
2X
HOLES FOR
ANCHOR BOLTS
2"
(50mm)
19-1/2"
(495mm)
*22-3/4"
(578mm)
FINISHED
In Canada:
AS Canada, ULC
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Toll Free: (800) 387-0369
www.americanstandard.ca
Pipe Wrench
Basin Wrench
Drill
Saber Saw
8-3/8"
(213mm)
8"
(203mm)
1-1/4"
O.D. WASTE
*20-1/2"
(521mm)
8"
(202mm)
FLOOR
American Standard B&K Mexico
S. de R.L. de C.V.
Via Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico
Toll Free: 01-800-839-1200
www.americanstandard.com.mx
7/8"
(22mm)
SUPPLIES
AS REQ'D
1-1/4" O.D.
TAIL PIECE
35-1/4"
(896mm)
In Mexico:
7 3 0 2 3 0 7- 10 0
Advertisement
Related Manuals for American Standard TOWNSEND 0328
Summary of Contents for American Standard TOWNSEND 0328
- Page 1 PEDESTAL SINK ® Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.
- Page 2 C/L of 2X6 Support Following manufacturer's Provide suitable reinforcement instructions, install faucet and behind finished wall for lavatory drain assembly (not included). mounting screws. Be certain to apply a bead of sealing putty on the underside * Determine horizontal center line of the drain (area "A") in order location of support from fixture.
- Page 3 PEDESTAL LAVABO ® Gracias por elegir American Standard - el parámetro de primera calidad por más de 100 años. Para asegurarse de que el producto esté instalado correctamente, por favor lea estas instrucciones cuidadosamente antes de comenzar. (Ciertas instalaciones pueden requerir ayuda profesional). Asegúrese de que su instalación cumpla con los códigos locales.
- Page 4 L/C de 2X6 Soporte Refuerce adecuadamente la parte Instale el conjunto de grifo y posterior de la pared terminada, drenaje (no incluido) de acuerdo a donde van los tornillos de montaje las instrucciones del fabricante. del lavatorio. Asegúrese de aplicar una base de masilla para sellar en la parte * Determine la ubicación de la inferior del drenaje (Área "A"), a fin...
- Page 5 (800) 442-1902 www.americanstandard.com Les noms des produits nommés ci-après sont des marques de commerce déposées d’ A S American Standard Inc. 7 3 0 2 2 0 7- 10 0 FR © AS America, Inc. 2017...
- Page 6 L/C du 2 x 6 Fournir un renforcement adéquat En respectant les directives du Support derrière le mur fini pour les vis de fabricant, installer le robinet et le montage du lavabo. drain (non fournis). Appliquer un ruban de mastic sur le côté * Établir l’emplacement de la ligne inférieur du tuyau d’évacuation horizontale du centre pour le...
