Summary of Contents for American Standard Selectronic 6062.013
Page 1
M965218 REV 1.8 NOTE TO INSTALLER: Please give this manual to the customer after installation. To learn more about American Standard Faucets visit our website at: www.americanstandard-us.com or U.S. customer's e-mail us at: faucetsupport@americanstandard.com For Parts, Service, Warranty or other Assistance,...
Page 2
M965218 REV 1.8 NOTE TO INSTALLER: Please give this manual to the customer after installation. To learn more about American Standard Faucets visit our website at: www.americanstandard-us.com or U.S. customer's e-mail us at: faucetsupport@americanstandard.com For Parts, Service, Warranty or other Assistance,...

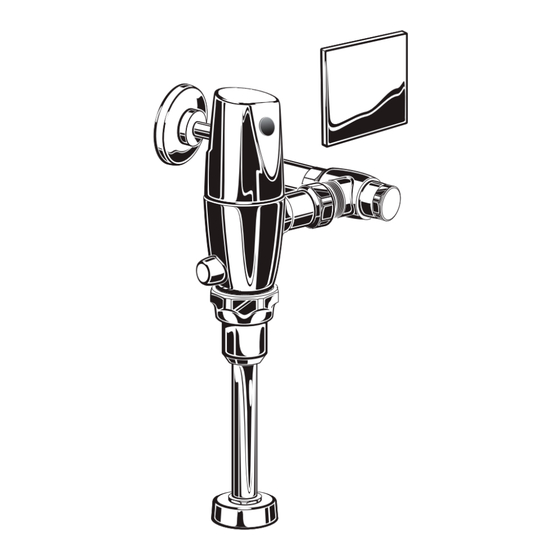

Fig. 1 GENERAL DESCRIPTION: Roughing-in Dimensions SELECTRONIC™ PROXIMITY TOILET FLUSH VALVE SEE DETAIL “A” Exposed Flushometer for 3/4" Top Spud Fixtures 180˚ Exclusive, self cleaning piston-type flush valve with proximity operation DETECTION ZONE and manual override. Operates on 400mm-800mm Right or Left Hand Installation (15-3/4"...
Page 4
INSTALL ELECTRICAL BOX Fig.3 (TOP SPUD FIXTURE ILLUSTRATED) ASSEMBLY; Fig. 3 Hubbel-RACO 8231 4" 127mm ELECTRICAL BOX 127mm (5") OR EQUIVALENT BY (5") CONTRACTOR 1. Drill a 2" diameter hole in the finished wall for the Hubbel-RACO 779 conduit tube from the flush valve at the dimension shown.
Page 5
Fig.4c Hubbel-RACO 8231 4" ELECTRICAL BOX OR EQUIVALENT BY CONTRACTOR BLACK & WHITE POWER CONNECTIONS Unit #1 Unit #2 Unit #3 FOR AC-VERSION (MULTI HOOK-UP); Fig. 4c 1. Contractor to supply ELECTRICAL BOX (1). Mount POWER SUPPLY (2) into ELECTRICAL BOX (1). Connect White and Black power connections to POWER SUPPLY.
Page 6
INSTALL THE SWEAT SOLDER Fig.5 ADAPTER; Fig. 5 FINISHED WALL CENTER LINE OF Turn water supplies off CAUTION before beginning FIXTURE SPUD Note: Install Optional Sweat Solder Adapter (Supplied) for copper pipe supply line. Fig. 5. (A-B)= 1. Measure the distance (A) from the finished wall to the 32mm center of the inlet spud on the fixture.
Page 7
FLUSH OUT SUPPLY LINES; Fig. 8 Fig. 8 1. Remove COVER (1) from SUPPLY STOP (2). REMOVE COVER 2. With a flat blade screwdriver open SUPPLY STOP (2). 3. Turn on water supply to flush line of any debris or sediment.
Page 8
INSTALL FLUSH VALVE; Fig. 10b Fig. 10b 1. Pull the DOWN TUBE (7) up to meet the threaded 121mm,+13mm, -6mm (4-3/4)(+1/2, -1/4) FLUSH VALVE CONNECTION (8) and hand tighten the VACUUM BREAKER COUPLING NUT (6). Align all components of the flush valve assembly. Fig. 10b. 2.
Page 9
HOW TO SET DETECTION RANGE Fig. 13 (If Required) ; Fig. 13 & 14 Note: The detection distance is preset and is ideal for most installations. Should an adjustment be required follow the steps below. 1. To remove the FRONT PANEL (1), insert WIRE KEY (2) (supplied) into the two holes located at the bottom of the FRONT PANEL (1).
